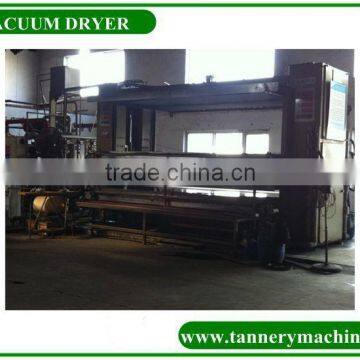

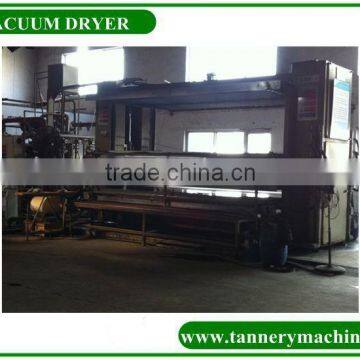

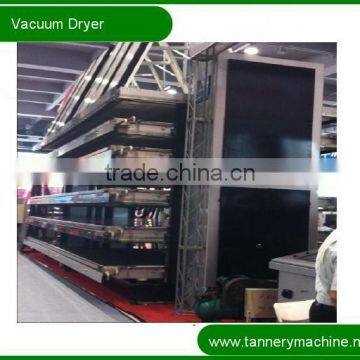

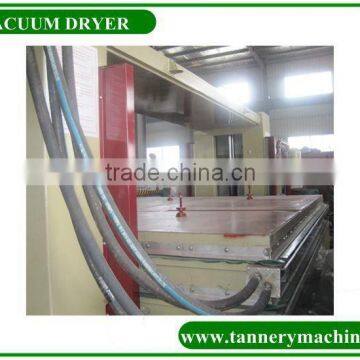

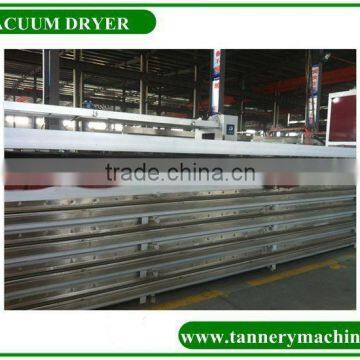

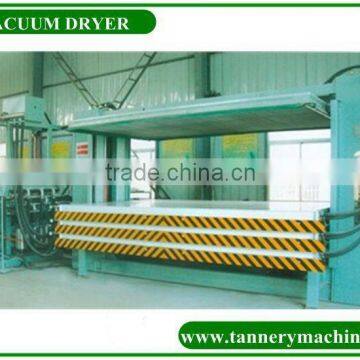

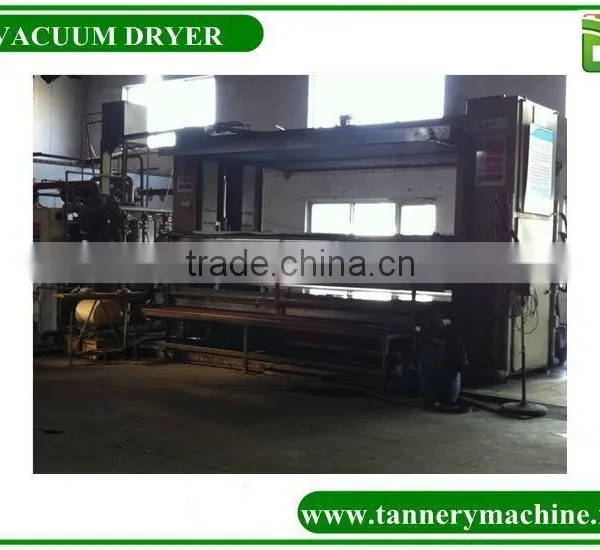

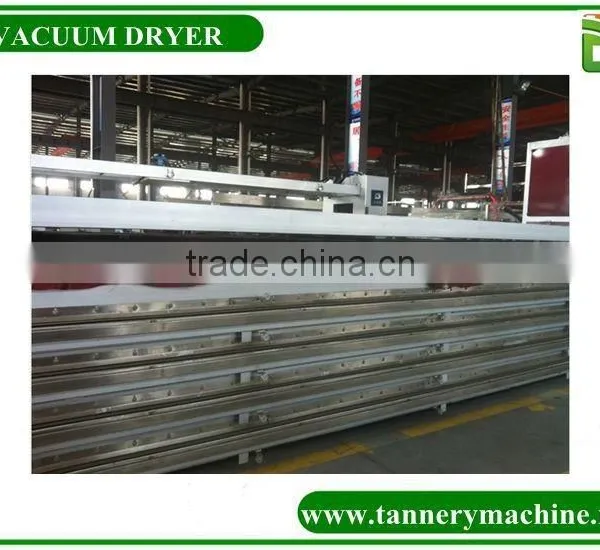

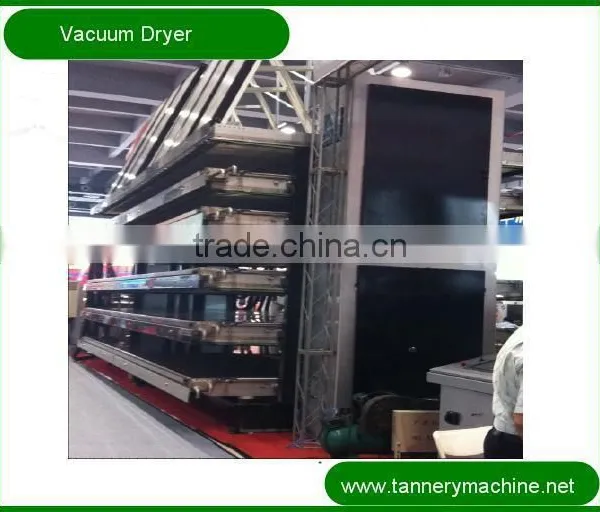

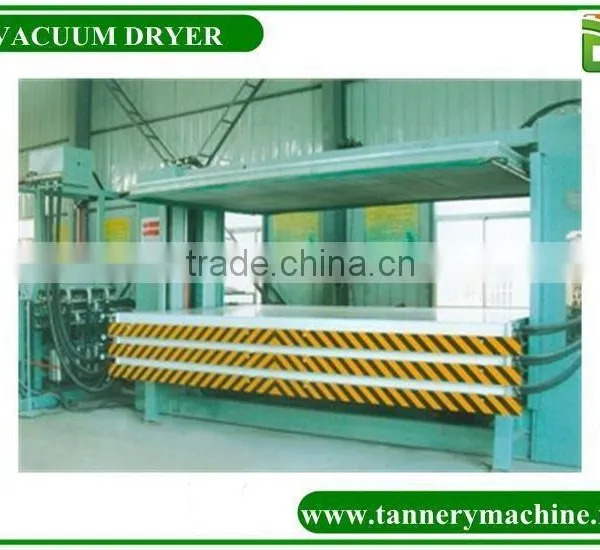

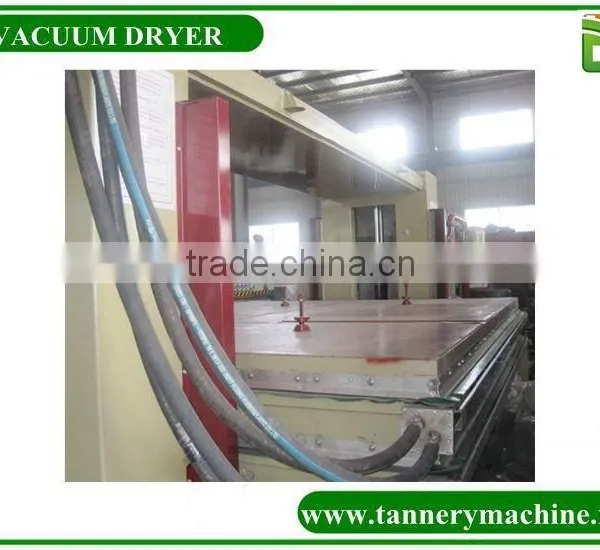

continuous vacuum belt dryer for industry with heating system key point
1. for lower temp or normal temp vacuum
2.steam,hot water ,hot oil as energy
3.six key point system: Safety system, Condensation system, Control system, Pollution discharge system
Vacuum system, Hydraulic system
4.2 or 3 or 4 or 5 tables vacuum dryer
5.table size : 2500x4000mm,3000x4000mm,2500x5000mm,3000x6000mm,3000x7000mm
continuous vacuum belt dryer for industry with heating system Specification
No | Part | detail |
1 | Vacuum degree | -0.1-0.95mpa |
2 | Table working temp | 25--70 |
3 | Compressed air pressure | 0.6 |
4 | Hydraulic pressure | 16mpa |
5 | Steam pressure | 0.4-0.5 |
6 | Dewater percent | 30-80% |
continuous vacuum belt dryer for industry with heating system key part brand
No | Part | Brand list |
1 | working table | AISI304 (Japan or Canada ) |
2 | Plate or rough net | AISI316L stainless steel |
3 | Vacuum pump | ITALY (TRH100-1007) |
4 | Hot water pump | ITALY (NM80/16EE) |
5 | Roots pump | Germany |
6 | PLC | JAPAN |
7 | Hydraulic parts | Italy or Germany |
8 | Auxiliary relay | JAPAN OR FRANCE |
9 | Contactors | JAPAN OR FRANCE |
10 | Thermal relay | JAPAN OR FRANCE |
11 | Timer | JAPAN OR FRANCE |
12 | Hot water container of table | Stainless steel |
13 | Vacuum Mesh | Stainless steel |
14 | Primary condensers (in tables) | Stainless steel |
15 | Pipeline of Vacuum system | Stainless steel |
16 | Vacuum valves | Stainless steel |
17 | Vacuum pots for water drain | Stainless steel |
leather vacuum dryer price for industry with heating system Delivery time :
30 days after get payment
1:Where is your factory located?
Answer: we are in Nantong city, China, near from ShangHai;
2:Why you have two company names?
Answer: HAIAN WEIGUO MACHINERY is manufacturing factory name for home market trading, JIANGYIN DUNCHENG IMPORT AND EXPORT is sales department mainly for export trading.
3: Why say you can serve the whole line tannery machines?
Answer: we have more than 10 cooperate company and take over of every kind of tannery machine, from wetblue lines to finishing machines;
4:Do you have after sale service?
Answer: We send engineers to go to customers’ factory to do installation by free, we have 30 years experienced engineer team in tannery line.;
5: What’s your payment terms?
Answer: Usually three types: by 30% T/T deposit, 70% T/T paid off before delivery; by 30%T/T deposit, 70%L/C; or by 100% L/C.
6: How can you control the quality?
Answer: Besides the sign technical contact, before delivery or extra money paid off, we go to the manufacturing factory checking every main electric parts and take pictures send to customers by e-mail for checking.
