Help CenterItaly Quality 3200mm Cow Leather Double Blade or Double Felt Sammying and Setting Out Machine
Related Products
-
Sheep Goat Skin Machine Dry Leather Vibration Staking MachineUS$ 10,000 - 62,000MOQ: 1 Set -
Wet Blue or Finished Dry Leather Stainless Steel Finish Leather Measuring MachineUS$ 3,000 - 5,000MOQ: 1 Set
-
Working Size 1500mm Wet Buffing MachineUS$ 100 - 200MOQ: 1 Set
-
Polishing Machine for Leather Industry MachineUS$ 10,000 - 30,000MOQ: 1 Set
-
Polishing Machine for TanneryUS$ 1,000 - 10,000MOQ: 1 Set
DOUBLE BLADE SAMMYING AND SETTNG OUT MACHINE
DESCRIPTION OF MACHINERY
l Our machinery collect Italy “BERGI” machinery technical also improve it become our self machinery ;
l It special for the complete cow skin sammying and setting out before vacuum dry;
l This machine made up two blade (big and smaller one)setting out once time ,after setting out , the leather very plate and high quality ,it can add the area more than 6%;
l This machine with safety protect and photo switch protect ;
KEY PART DISCRIPTION
l Electric control
PLC control all
Auto check the leather fold ,stop running
Schneider contact
l Feed roller
Special feed roller with special rubber
Rubber roller reciprocate remove by chain as oil cylinder keep the same step
Roller drive by gear box move by chain wheel up to speed automatically control
l BLADE PART
Blade material from high quality steel ,never change the shape
l FELT ROLLER
Felt roller base treatment by chrome
Felt imported from Italy
Sammying by felt drive by oil cylinder ,at the same time setting out the leather
l HYDRAULIC SYSTEM
The all part from China top and famous brand supplier
KEY PART LIST
PLC : OMRON
ELECTRIC PART : SCHNEIDER
BEARING : HIGH QUALITY STEEL AFTER TREATMENT
HYDRAULIC SYSTEM : CHINA BEST
FELT : COFPA
EELT ROLLER : TREATMENT BY CHROME
OIL PUNP : USA
TECHNICAL PARAMETER
Working size : 3200mm
Feeding speed : 0.25-0.45m/s
Max pressuring for sammying: 240kn
Total power : 37kw
Weight : 11000kgs
Machinery size : 5830x1600x1625mm
leather sammying and setting out machine parts brand
item | Name | from |
1 | PLC | JAPAN |
2 | ELECTRIC PART | FRANCE |
3 | BEARING | CHINA national brand |
4 | HYDRAULIC SYSTEM | CHINA national brand |
5 | FELT | National brand |
6 | OIL PUMP | USA |

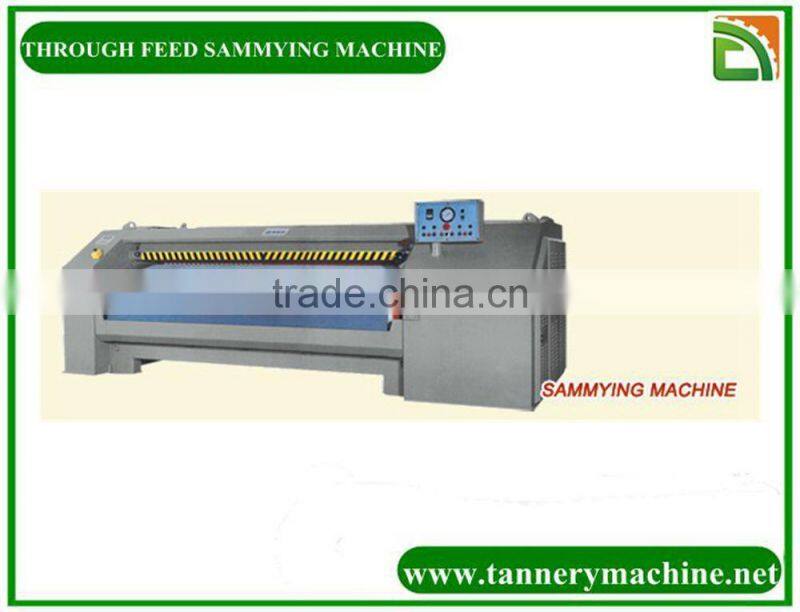

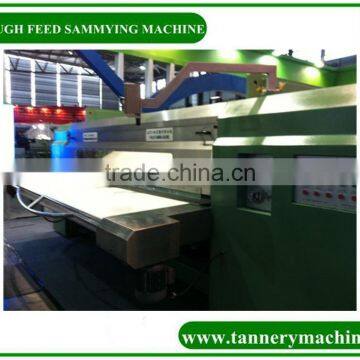

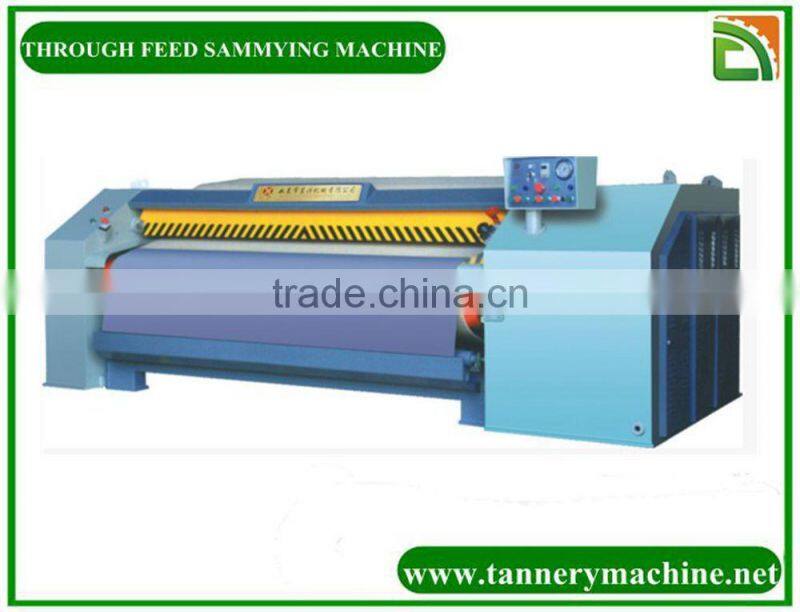

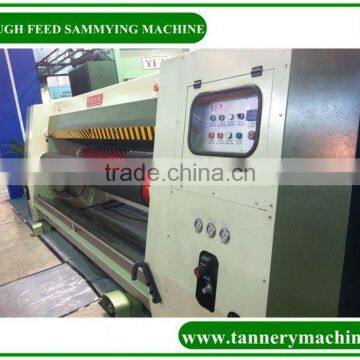

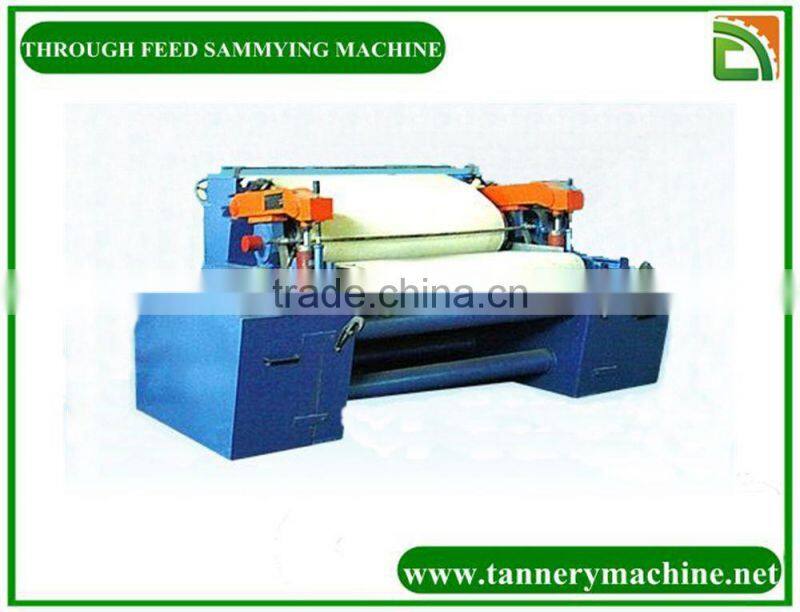

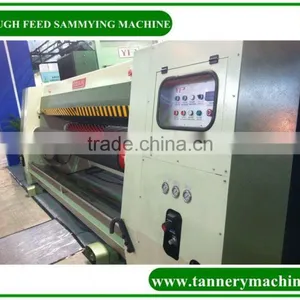

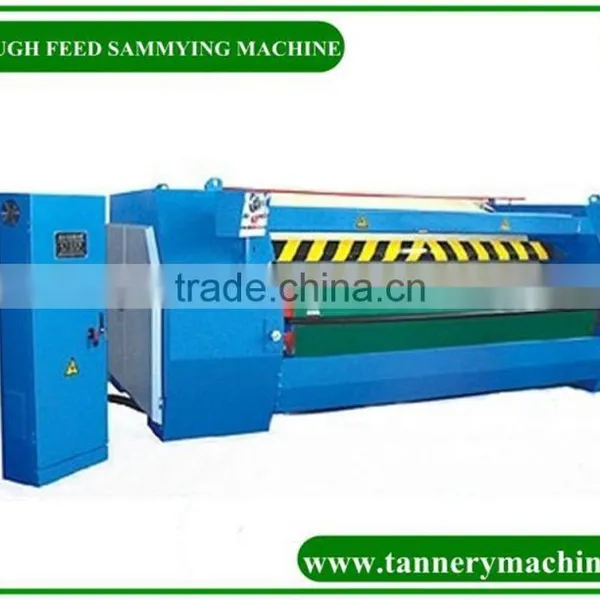

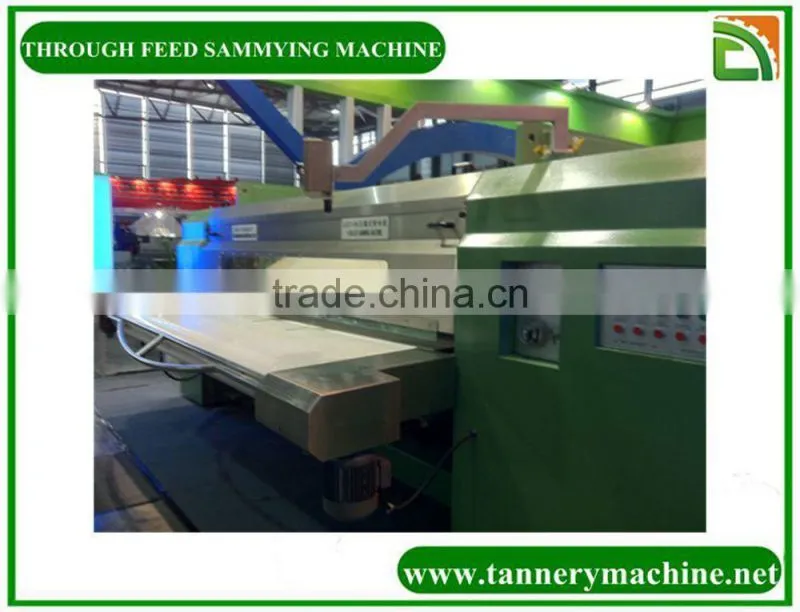

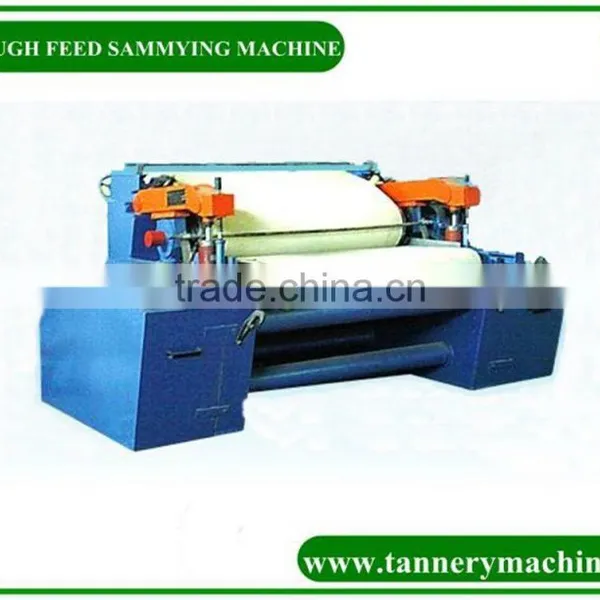

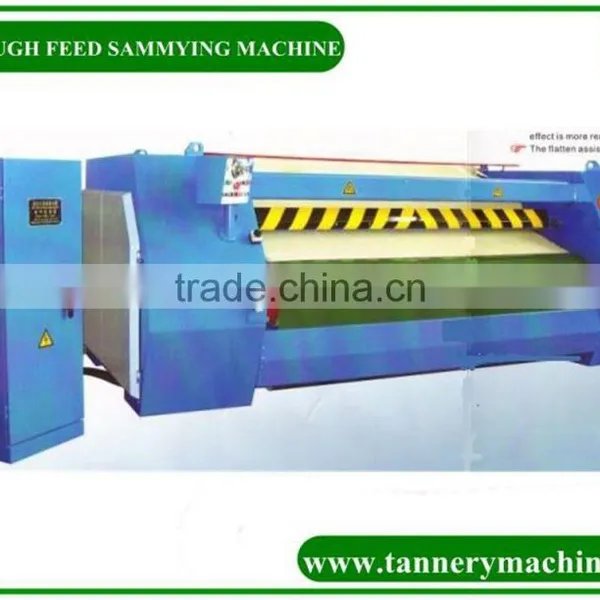

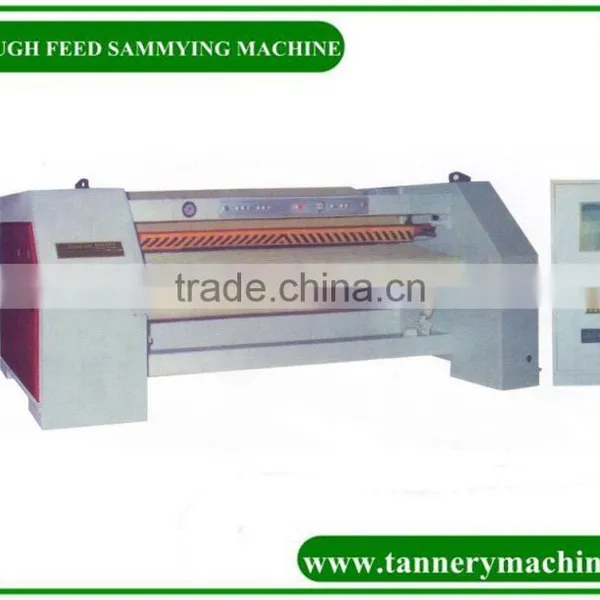

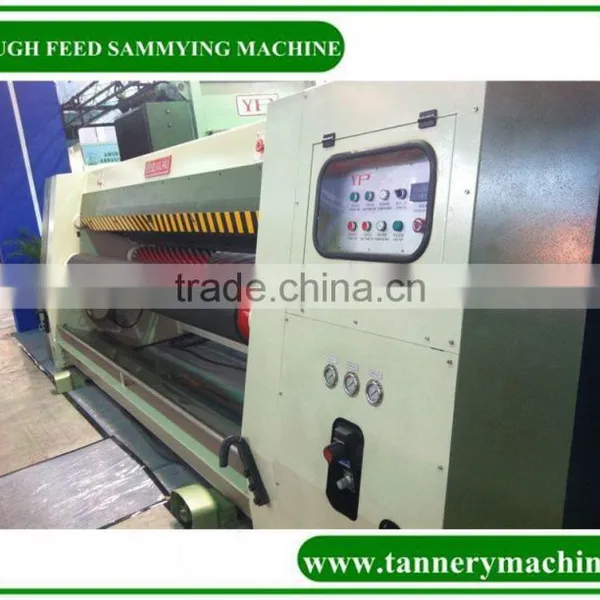

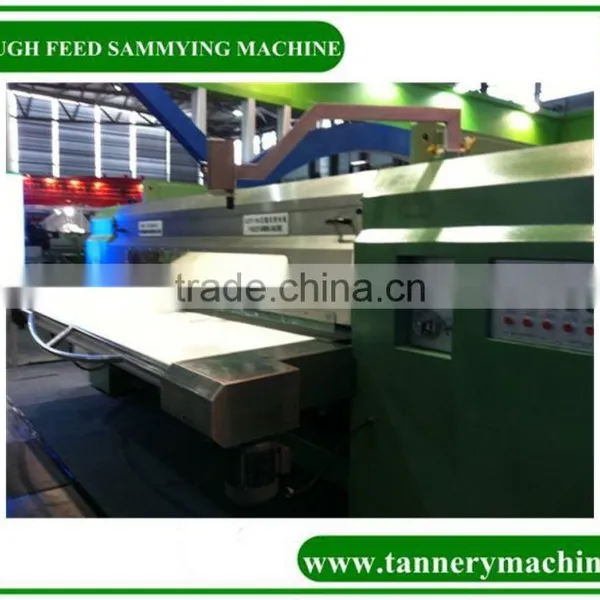

leather sammying and setting out machine
leather sammying and setting out machine
leather sammying and setting out machine
