Specifications
Specifications1. Variable pitch
2. On-grid system
3. Maintenance free
4. High efficiency
Specifications
1.Wind generator with low start up speed, high wind energy utilization
2.Easy installation, tube or flange connection optional

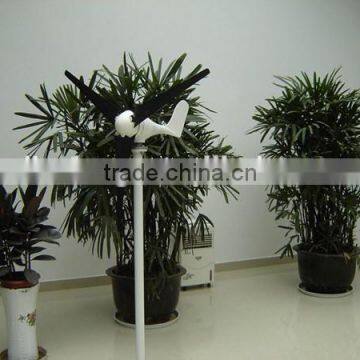

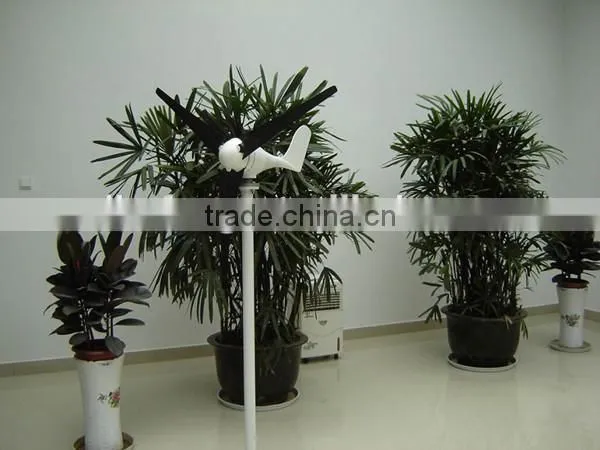

300w wind turbine specification:
1.Low start up speed, high wind energy utilization
2.Easy installation, tube or flange connection optional
3.Blades using new art of precision injection molding , matched with optimized aerodynamic
shape and structure,which enhance the wind energy utilization and annual output.
4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger wind
and run more safely
5.Patented permanent magnet ac generator with special stator,effectively reduce torque,
well match the wind wheel and generator, and ensure the performance of whole system.
6.Controller,inverter can be matched according to customers’ specific needs
date sheet of 300w wind turbine:
Model | NE-300 | NE-400 | NE-500 |
Rated power | 300W | 400W | 500W |
Maximun power | 330W | 430w | 530w |
Rated voltage | 12/24/48V | 12/24/48v | 12/24/48v |
Start-up wind turbine | 2.5m/s | 2.5m/s | 2.5m/s |
Rated wind speed | 10m/s | 10m/s | 10m/s |
Survival wind turbine | 45m/s | 45m/s | 45m/s |
Top net weight | 13kg | 13.5kg | 14kg |
Wheel diameter | 1.8m | 1.8m | 1.8m |
Number of blades | 3 | ||
Blades material | Nylon fiber | ||
generator | Three phase permanent magnet ac synchronous generator | ||
magnet | NdFeB | ||
Generator case | Casting aluminum alloy | ||
Control system | Electromagnet/wind wheel yaw | ||
Speed regulation | Automatically adjust windward direction | ||
Working temperature | -40°C - 80°C | ||
Design life | 20 y | ||
Gross weight | 16kg | ||
Package Dimension | 930*400*210mm | ||
