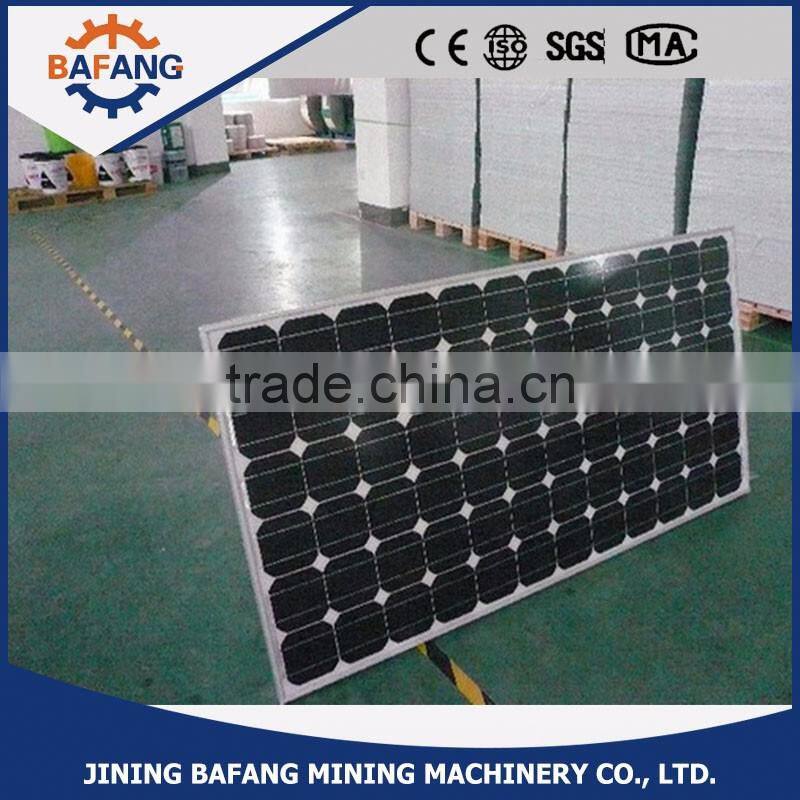

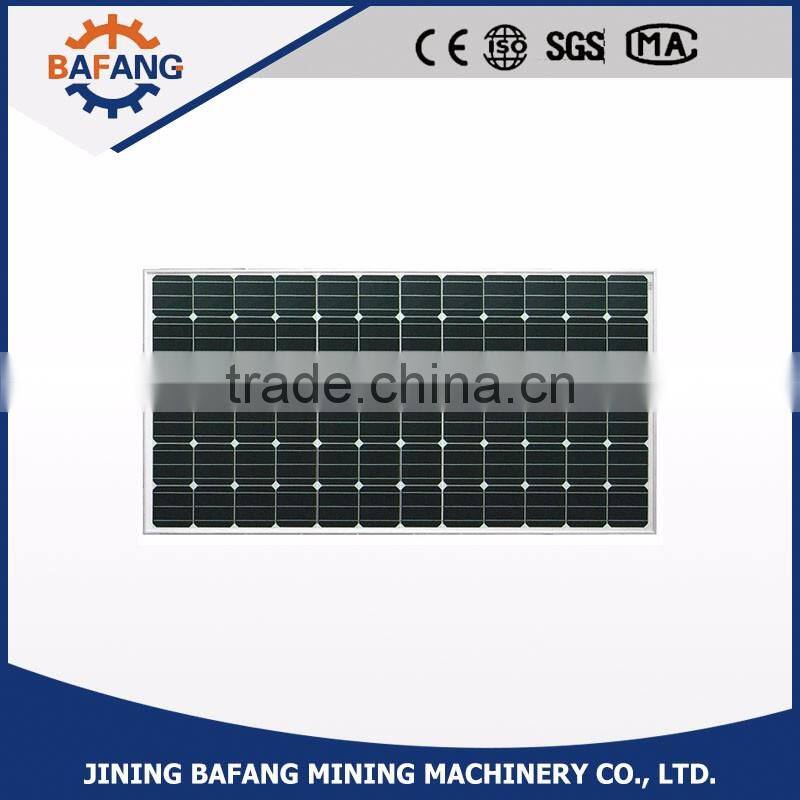

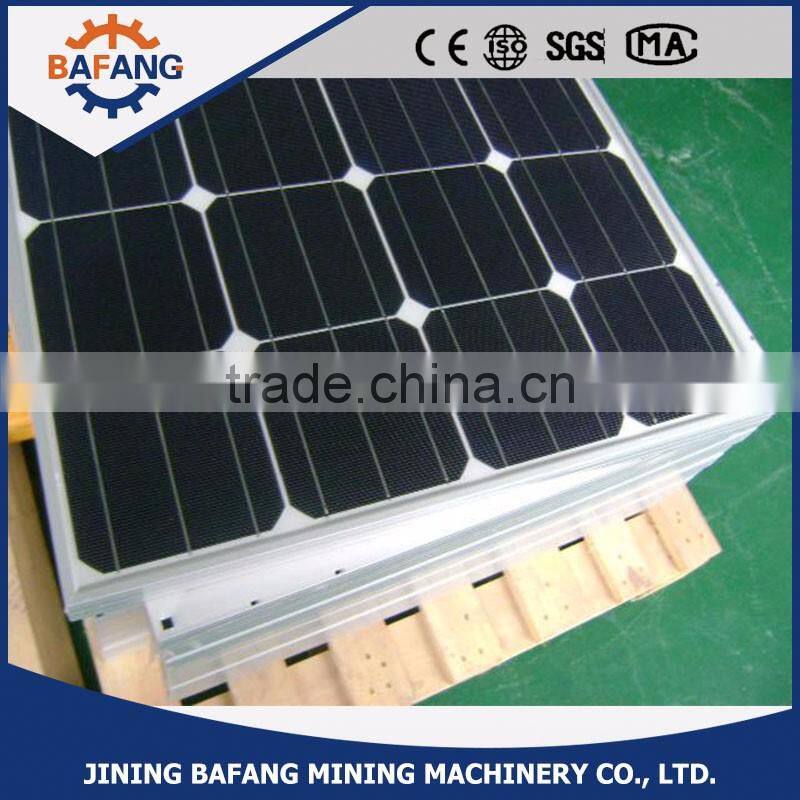

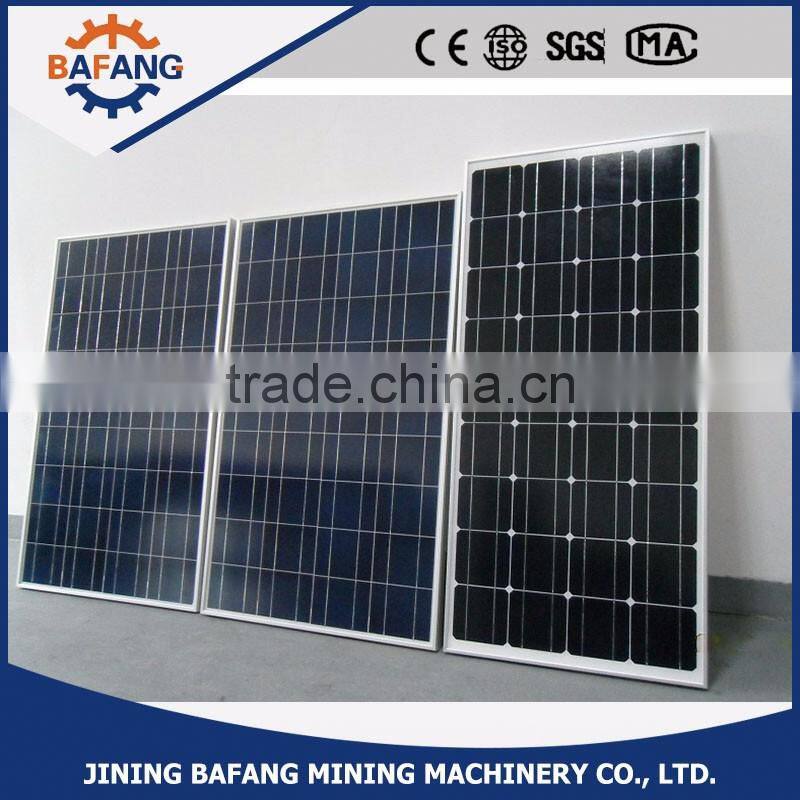

Single crystal 300w solar panel
Electric Spec
STC | AD260M6-Ab | AD265M6-Ab | AD270M6-Ab | AD275M6-Ab | AD280M6-Ab |
Max power output | 260W | 265W | 270W | 275W | 280W |
Max working voltage | 31.64V | 31.99V | 32.02V | 32.20V | 32.42V |
Max working current | 8.22A | 8.29A | 8.42A | 8.55A | 8.62A |
Open-circuit voltage | 38.33V | 38.54V | 38.72V | 38.89V | 39.76V |
Short-circuit current | 8.81A | 8.88A | 8.89A | 9.04A | 9.12A |
Conversion efficiency | 15.89% | 16.29% | 16.60% | 16.90% | 17.21% |
Operating Temperature | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ | -40~85℃ |
Maximum System Voltage | 1000V DC | 1000V DC | 1000V DC | 1000V DC | 1000V DC |
Power of tolerance | 15A | 15A | 15A | 15A | 15A |
Power of tolerance | 0W±5W | 0W±5W | 0W±5W | 0W±5W | 0W±5W |
Mechanical Spec
Cell type | Monocrystalline 156*156mm |
Cell Quantity | 60(6*10) |
Dimensions | 1640*992*35mm |
Weight | 18.5kg |
Glass | Armored glass |
Frame material | Anodized aluminum alloy |
Standard Package | 26pcs |
