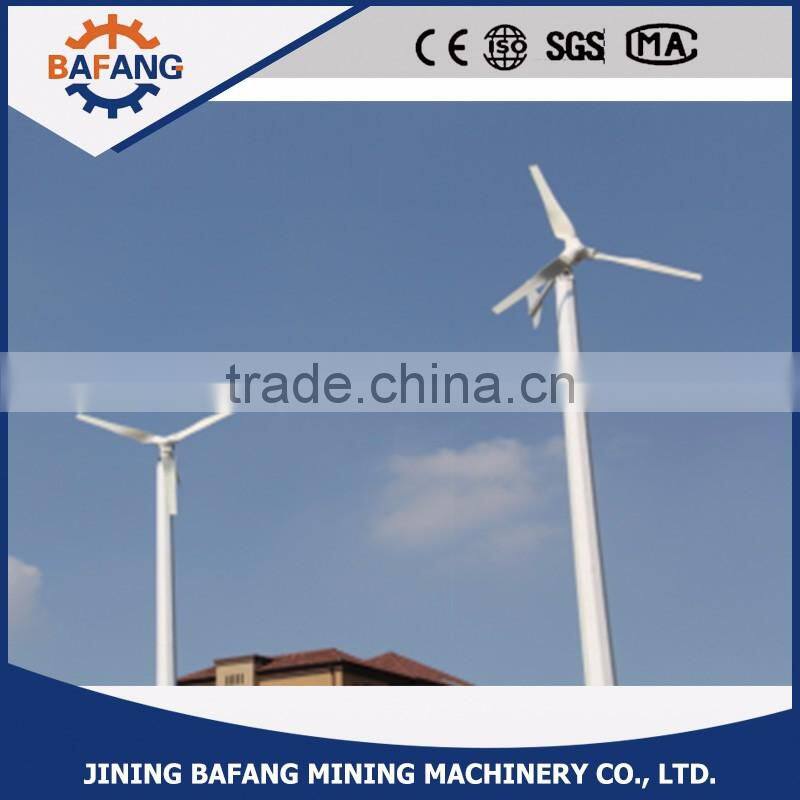

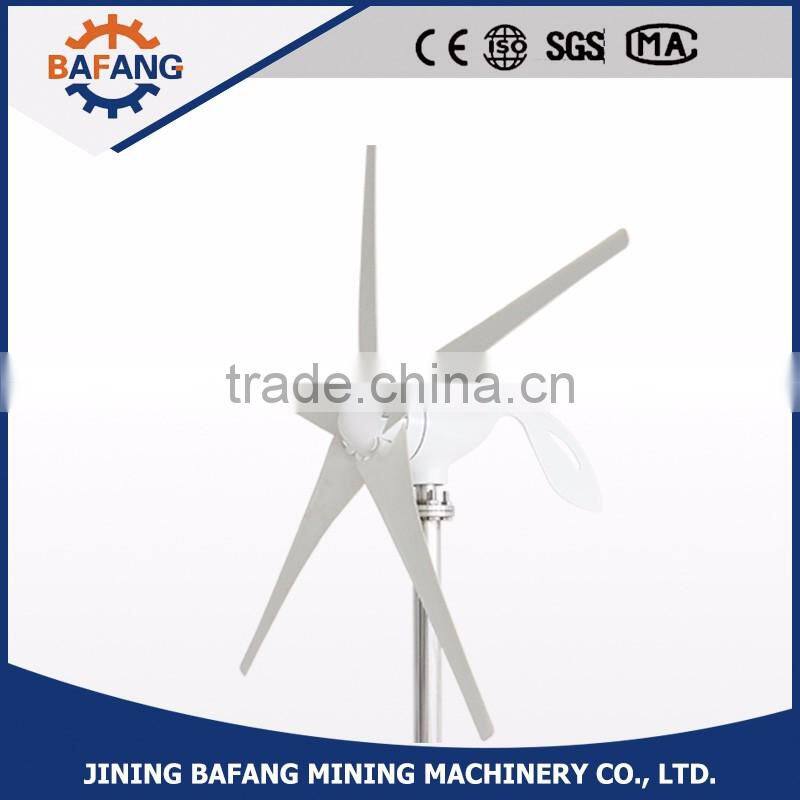

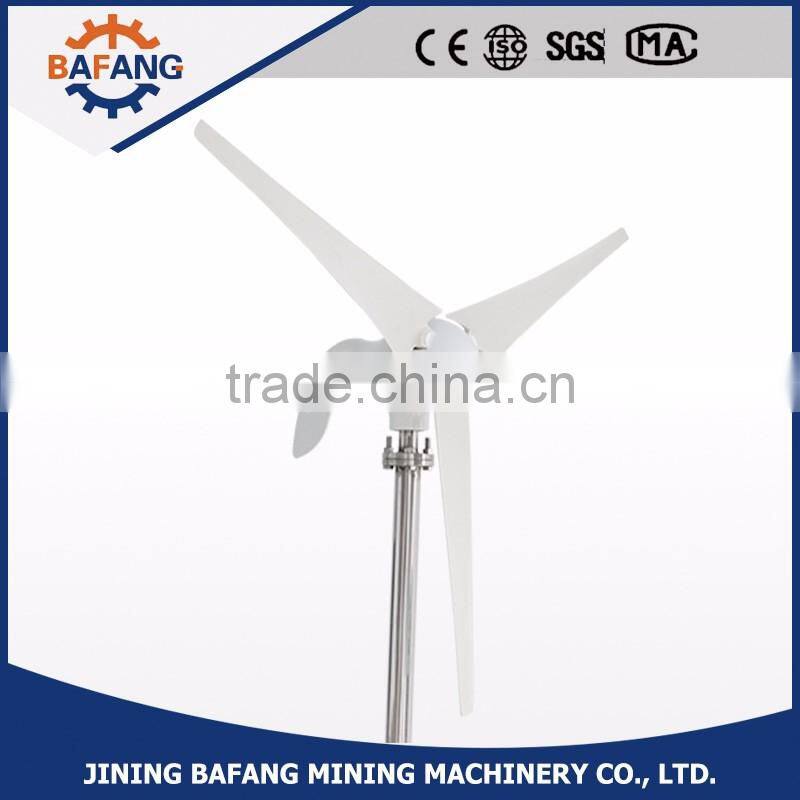

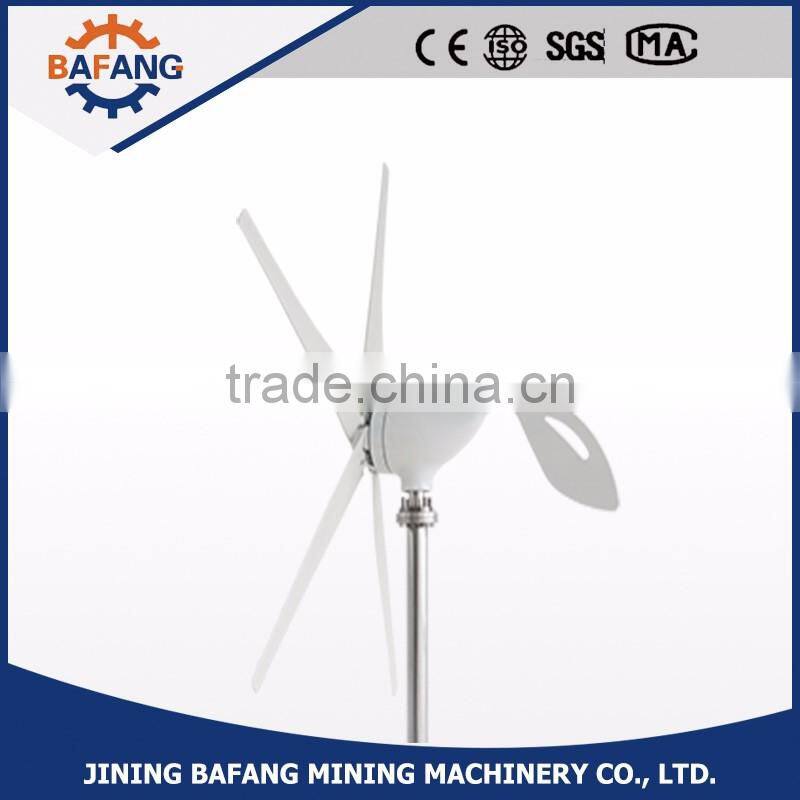

Horizontal 100kw Wind Turbine / Wind Mill / Wind Generators
Horizontal 100kw wind turbine / wind mill / wind generators
Feature
Low start-up speed,high utilization of wind energy
Small in size,low operating vibration
Control and track by intelligent microprocessor
Convenient to install and maintain
Technical Data
Model/Specification | TS-100 | TS-200 | TS-300 |
Power Rating | 100W | 200W | 300W |
MAX Power | 130w | 230w | 330w |
Rated voltage | 12/24V | 12/24V | 12/24V |
Rated Wind Speed | 10.0m/s | 11.0m/s | 13.0m/s |
Start-up wind speed | 2.0m/s | 2.0m/s | 2.5m/s |
Net Weight | 6.0kg | 6.2kg | 6.5kg |
Rotor diameter | 1.2m | 1.3m | 1.3m |
Blades | 3/5 | ||
Blade material | Nylon fiber | ||
Electric generator | Three-phase ac permanent magnet synchronous generator | ||
Operating System | Electromagnetic/rotor side | ||
Lubrication | Lubricating grease | ||
Operating Temperature | -40°C~80°C | ||
