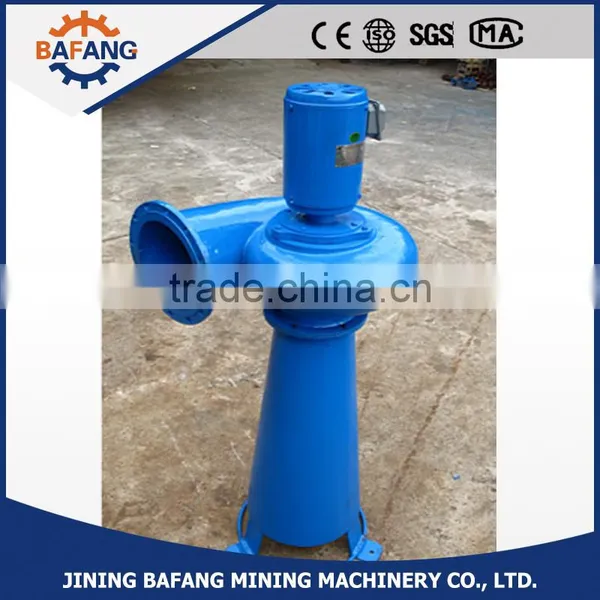

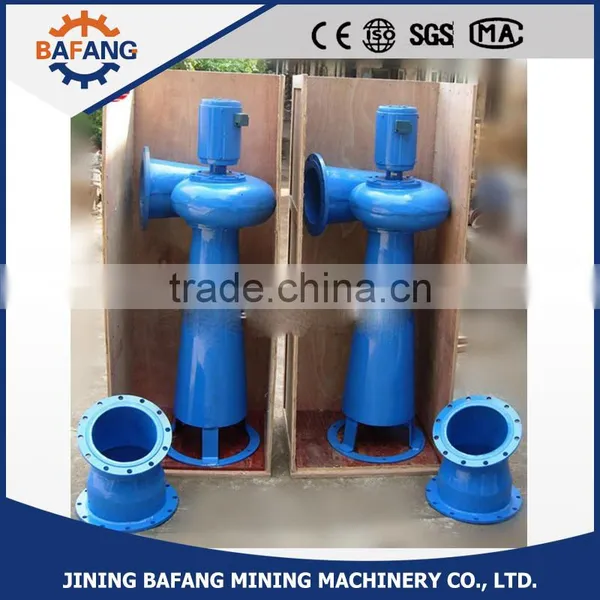

Small hydro generator / mini-hydro generator / hydraulic power generator
Overview
Model |
A001 |
Type |
Volute axial flow water turbine generator |
Power |
300W-10KW |
Material |
FRP/Steel plate/Copper wire |
Frequency |
50Hz / 60Hz |
Voltage |
110V/220V/380V |
Transfer speed |
1000(min) |
Phase |
Single phase |
Insulation grade |
E |
Water height |
1~10m |
Flow |
0.017m³/s~1.66m³/s |
Technical parameters
|
Power (KW) |
Water height(m) |
Flow (m³/s) |
Rotate speed (R/M) |
Voltage (V) |
Frequency (Hz) |
0.3 |
1.5-4 |
0.045-0.017 |
1000 |
220 |
50 |
0.6 |
2-4 |
0.068-0.034 |
1000 |
220 |
50 |
1.0 |
2.5-6 |
0.085-0.035 |
1000 |
220 |
50 |
1.5 |
2.7-8 |
0.114-0.0382 |
1000 |
220 |
50 |
2.0 |
3-10 |
0.128-0.0385 |
1000/1500 |
220 |
50 |
3.0 |
3-12 |
0.185-0.0464 |
1000/1500 |
220 |
50 |
5.0 |
3.5-15 |
0.251-0.0586 |
1000/1500 |
220/380 |
50 |
8.0 |
4-16 |
0.352-0.088 |
1000/1500 |
220/380 |
50 |
10 |
5-18 |
0.34-0.094 |
1000/1500 |
380 |
50 |
12 |
5-18 |
0.395—0.10 |
1000/1500 |
380 |
50 |
15 |
5-18 |
0.47—0.132 |
1000/1500 |
380 |
50 |

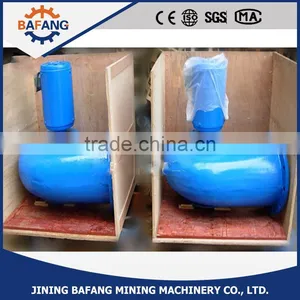

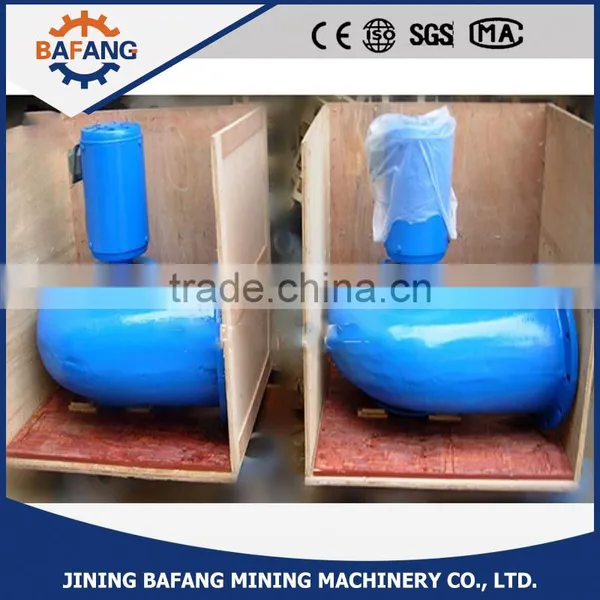

Packing details
|
Power (W) |
Net weight (KG) |
Weight of wooden box(KG) |
Dimension (CM) |
300 |
47 |
70 |
43×48×108 |
600 |
52 |
76 |
43×48×111 |
1000 |
78 |
98 |
43×48×136 |
1500 |
85 |
132 |
51×57×136 |
2000 |
158 |
216 |
71×62×167 |
3000 |
163 |
221 |
71×62×169 |
5000 |
238 |
283 |
82×78×88 |
8000 |
246 |
291 |
82×78×88 |
10000 |
340 |
360 |
141×113×93 |
