Three Wheels Protable Core Drilling Rig for 100m and 200m 7
- qingdao
- T/T Money Gram Credit Card
You May Like
Product Details
| Condition | New | Type | Core Drilling Rig | |
| Power Type | Diesel | Brand Name | BAFANG | |
| Model Number | XYC-200 | Usage | Water Well | |
| Voltage | 380V | Power(W) | 14.7kw | |
| Dimension(L*W*H) | 1110*725*965 | Weight | 1200kgs | |
| Certification | ISO9001 | Warranty | 2 Years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

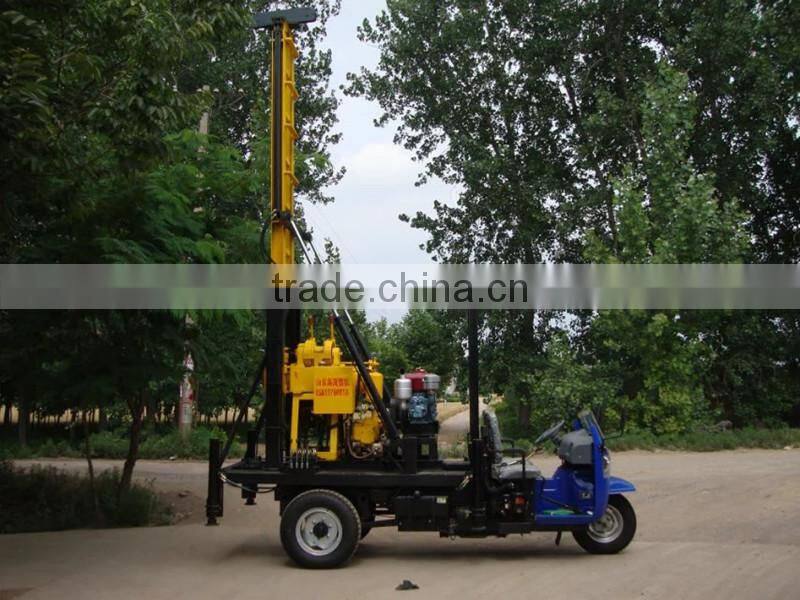

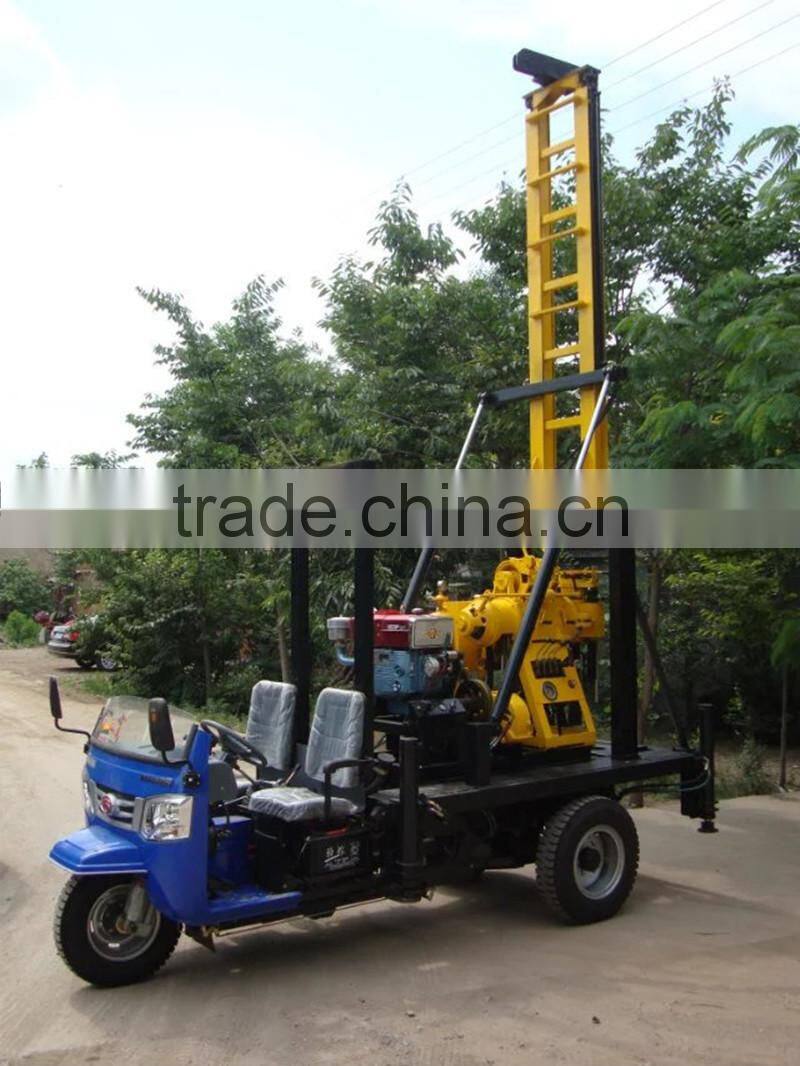

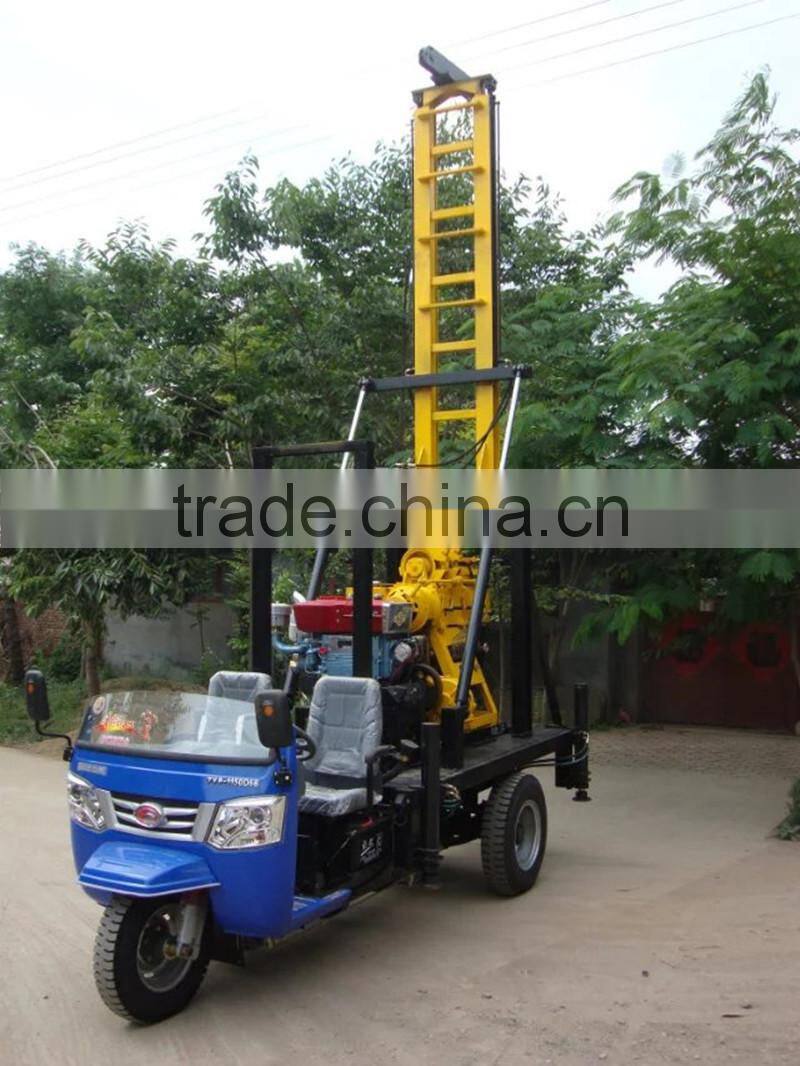

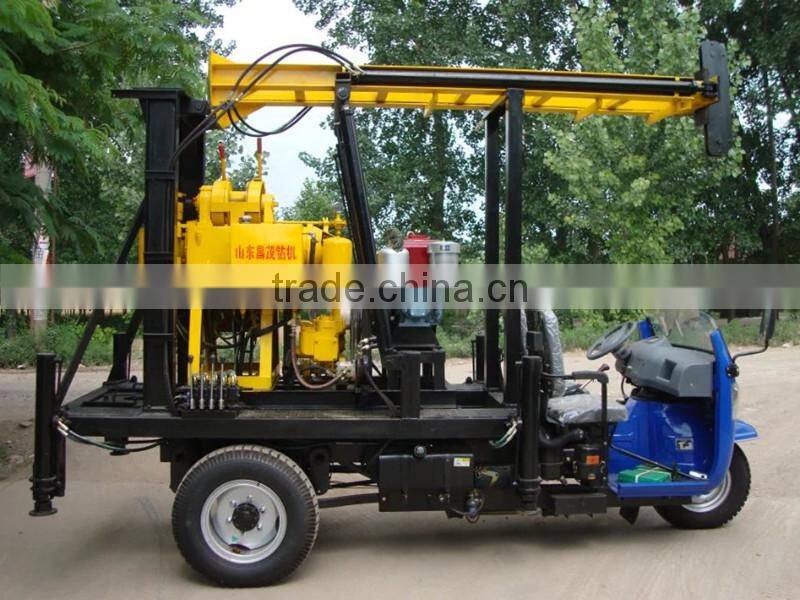

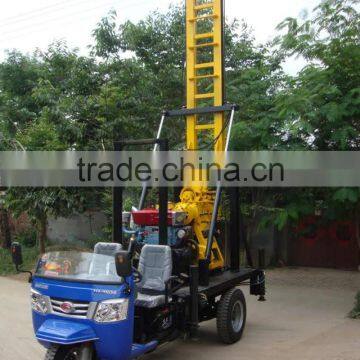

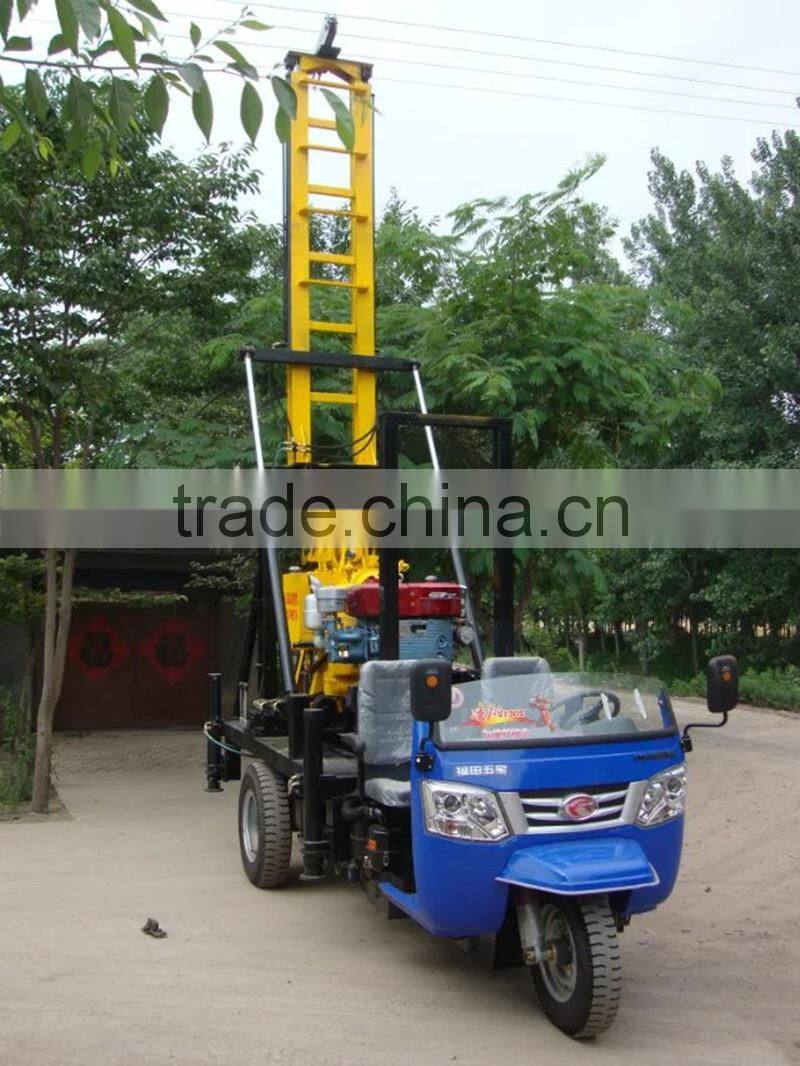

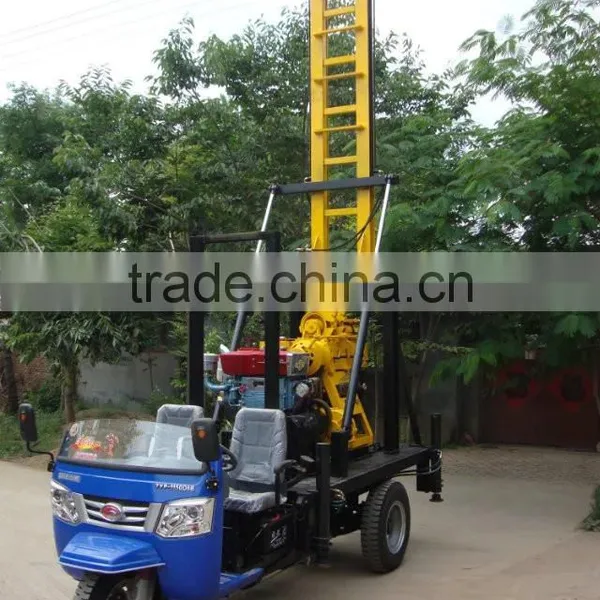

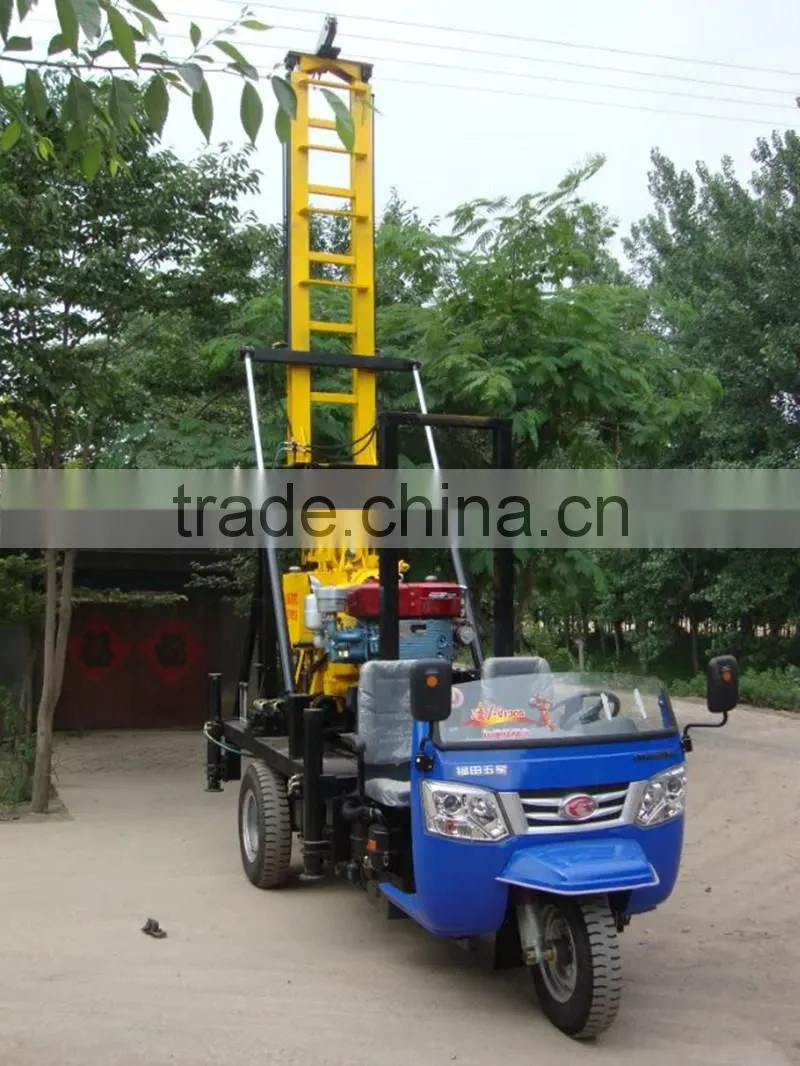

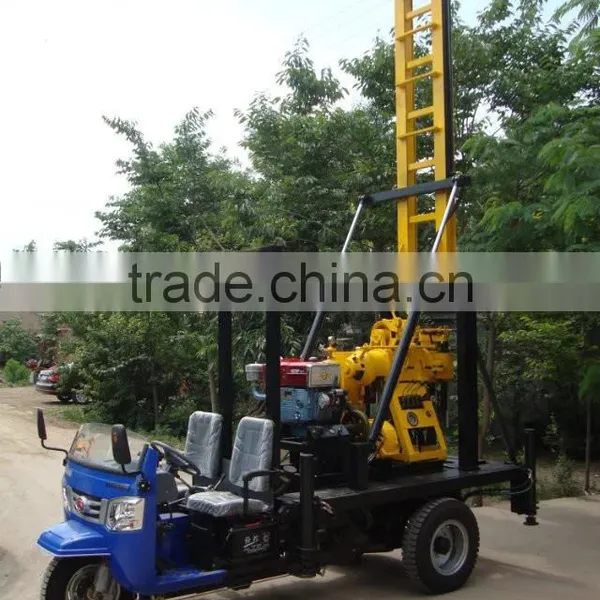

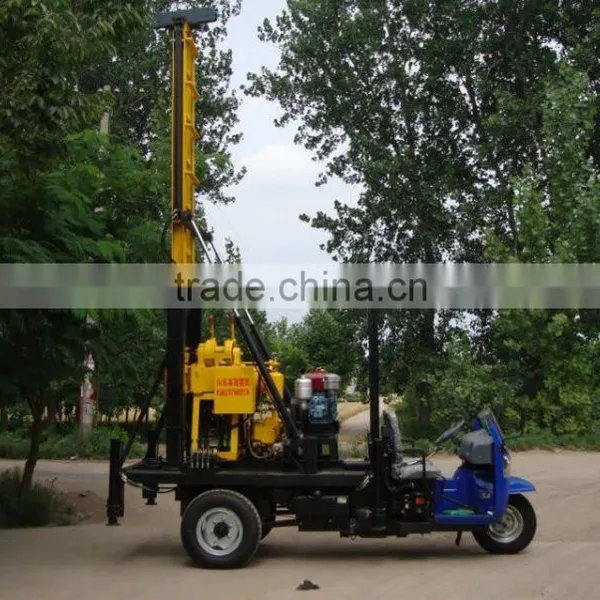

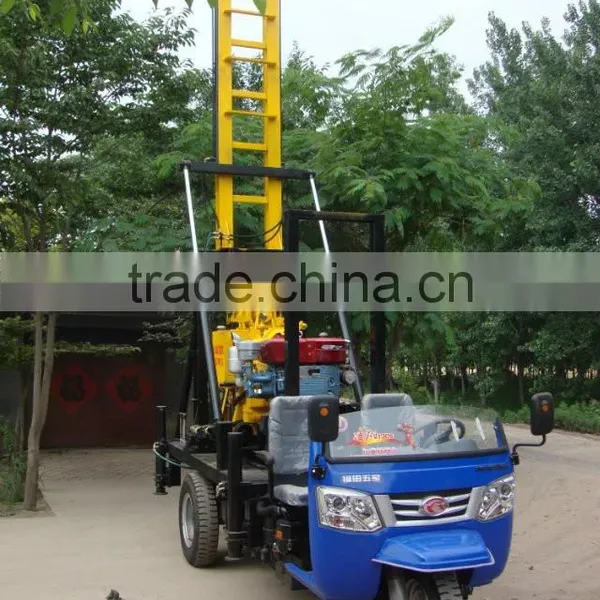

Three wheels protable water well drilling machine for 100m and 200m
XYC200 muntipurpose three wheel vehicle mounted hydraulic spindle drilling rig is designed for
Geological survey and prospecting, exploration roads and high-rise building foundation, as well as a variety of concrete structure inspection holes, rivers and dams, embankment grouting hole drilling and grouting direct civilian wells and geothermal central
air conditioning.
Features:
1, XYC-200 is a multi-function hydraulic vehicle mounted rotary spindel drilling rig
2, It adopts three-wheel chassis 7YP-1475D1, the drive systems, hoist and mud pump are mounted on this chassis, reasonably compacted layout, easy to operate
3. It configures BW160 mud pump, high pressure, big flow, which can ensure drilling depth and diameter
4. The rig has shifting device, it can move on the vehicle, convenient to operate while drilling

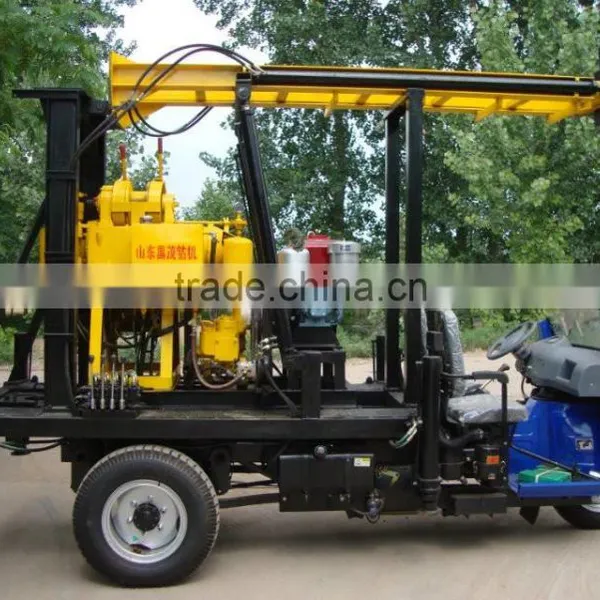

5. The hydraulic folding mast is safe and convenient to operate.
Tech Data
Drilling depth(m) | 30-200 | ||
Drilling diameter(mm) | 300-75 | ||
Drilling Angel(°) | 90-75 | ||
Spindle rotating speed(r/min) | 64,128,287,557 | ||
Spindle stroke(mm) | 450 | ||
Main hoisting capacity(single line)(Kg) | 1600 | ||
Main hoisting line capacity(m) | 35 | ||
hoisting speed(r/s) | 17,35,75,151 | ||
Wireline diameter(mm) | 12.5 | ||
Mast height(mm) | 7000 | ||
Mast effective height(mm) | 6500 | ||
Kelly/active pipe(mm) | 59*53 | ||
Drill rod(mm) | 42,50,60 | ||
Drill rig weight(kg) | 1150 | ||
Power Unit | Model :ZS1115 desiel engine | ||
Rated power: 14.7kw/2200rpm | |||
BW-160 mud pump | Rated flow(L/min) | 160 | |
Rated pressure(Mpa) | 1.3 | ||
Driving power(kw) | 5.15 | ||
main machine weight(kg) | 190 | ||
Demension(mm) | 1110*725*965 | ||
Chassis | Model | 7YP-1475D1 | |
Drive mode | Rear-wheel drive | ||
power unit | Model | ZS1115E2 | |
emission standard | GB18322-2002,GB19756-2005(Ⅱ) | ||
Rated power(KW) | 16.2 | ||
Rotating speed(r/min) | 2200 | ||
