Help CenterFlat Saddled Pull Type AGV
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Multi-sites Saddled AGVNegotiableMOQ: 1 -
Small Saddled Tray Type AGV-automated Guided VehicleNegotiableMOQ: 1
-
One-way Saddled Type AGV-automated Guided VehicleNegotiableMOQ: 1 Set
-
Standard One-way Carrying-automated Guided VehicleNegotiableMOQ: 1 Set
-
Single Drive Two-Way Saddled AGV-automated Guided VehicleNegotiableMOQ: 1
Place of Origin
Guangdong, China
Specifications
With self-own leading technology, patented, competetive price, reliable qualityFlat Saddled Pull Type AGV, one-way operation, with several sites selection function; it loads the material rest on the vehicle body, which realizes the easy handling of commodity. The double safety protection design, when several AGVs are used in cooperation, they can be constituted into an assembly line and form flexible production system instead of stream-lined line. This vehicle is mostly used in automobiles or other heavy machine assembling.

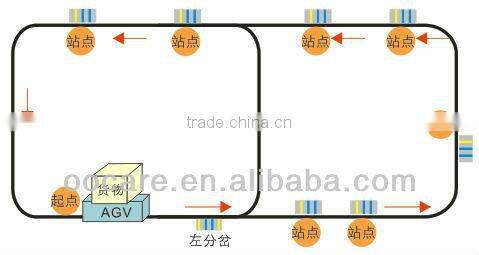

AGV Driving Route Map Case
Technical parameters
| Overall Dimension | L1200*W600*H300(mm) |
| Moving Way | Magnetic stripe navigation |
| Moving Directions | Going ahead, turning to the left and the right, bifurcating |
| Means of Communication | Wireless Local Area Network |
| Driving Mode | Differential driving |
| Driving Power | DC24V DC48V |
| Carrying Capacity | 300Kg ,500Kg,750kg,1000kg (or custom made) |
| Model | Flat Saddled Pull Type AGV |
| Carrying Capacity | 30-45m/minute(or custom made) |
| Turning Radius | The minimum could be 800mm(the magnetic stripe path lays the radius) |
| Navigation Accuracy | ±10mm |
| Manner of Working | 24hours |
| Climbing Capacity | 3-5° |
| Stop Precision | ±10mm |
| Charge Methods | Manual Charging /Automatic Charging |
| Safety Induction Scope | ≤3m,adjustable,the urgent braking length is less than 20mm |
| Alarm Form | Acousto-optic Alarm |
| Storage Battery | Maintenance free charging, continuous discharge times are more than 300. |
| Safety Protection | The front obstacle detects the sensor + machinery anticollision mechanism double protection |
| Designed Life | More than 10 years |
AGV Frame diagram
Application schematic diagram
