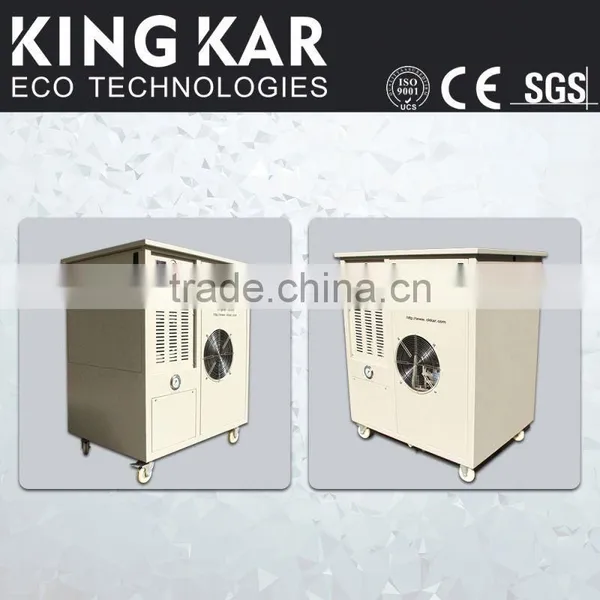

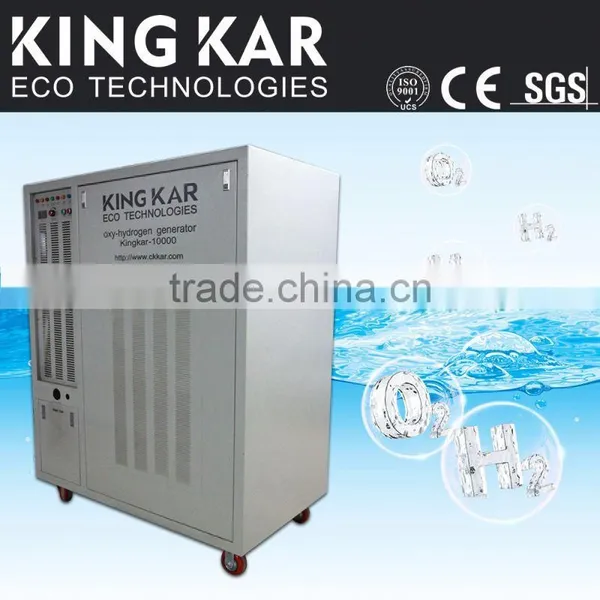

Metal Oxy-hydrogen cutting machine

Operating principle

Hydrogen production and hydrogen-oxygen fuel cutting machine is a device that uses water electrolysis technology, electricity from water decomposition of hydrogen and oxygen, hydrogen as a fuel, oxygen combustion, is a new high-tech green energy equipment, is a popular saying water becomes water fuel fire equipment. Just turn on the power switch, there is a steady stream of external supply of hydrogen fuel.

Characteristics of hydroxide cutting machine

1. It is a mature production technology, which can be operated safely and reliably.
2. The process flow is short and simple.
3. Both energy consumption and production cost are relative low.
4. Simple and easy operation, high automation.
5. No environmental pollution.

Technical parameters

 Why choose metal oxy hydrogen cutting machine?

---Efficient operation: small slot, concentrated firepower, preheat fast, high speed cutting, do not hang residue and without cleaning after process.

--- Energy-saving design: with voltage and temperature fluctuation compensation function, built-in AC power-saving features.

---Adjustable gas production: the use of DC power inverter technology, stable current adjustable, stable gas production.

--- Easy to use:air-cooled, no water. Boot gas production shutdown to stop gas.

--- Security:Low electrolysis, no risk of electric shock. Built- proof membrane, pressure relief valves, stainless steel fire ended tubes, stainless steel flame arrester can effectively prevent all accidents tempering.

The effect after using oxy-hydrogen machine

Other features

a. Safer fuel gas

Mixture of flammable gas and air or Oxygen is explosive, and it has a lower and upper limit of concentration for explosion.

Lower explosive limit for Propane gas = 2.2%
Lower explosive limit for Acetylene gas = 2.5%
Lower explosive limit for Hydrogen gas = 4.0%.

Thus, Hydrogen is much safer than the other gases because of its higher value of Lower Explosive Limit. Additionally, because Hydrogen is lighter than air, it does not stagnate but will quickly diffuse in the atmosphere.

b. CO2 Emissions reduction

Hydrogen is a clean energy source. Water is the only product of combustion. Hydrogen combustion produces no CO2 because the molecule contains no Carbon atom, Hydrogen is the cleanest energy as an alternative to LPG, Acetylene gas or Natural gas.

c. Lower heat stress

Steel plate when heated for the same time by both conventional and Hydrogen fuelled flames shows the following heat distribution in the plate. The high combustion speed of the Hydrogen flame reduces the flame area and concentrates the thermal energy. This allows the high pressure oxygen passage to heat only the immediate area being cut, preventing excessive heat transfer to the surrounding area. This reduces cooling time and distortion caused by excessive heat stress.

Application field

Suitable for all the needs of the flame processing establishments , used to replace acetylene , propane , liquefied petroleum gas and other gas , commonly used in steel cutting, welding metal oxide , jewelry processing require high energy gas plant , glass processing.

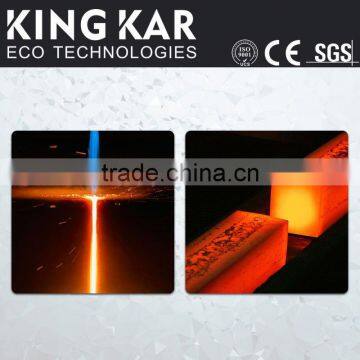

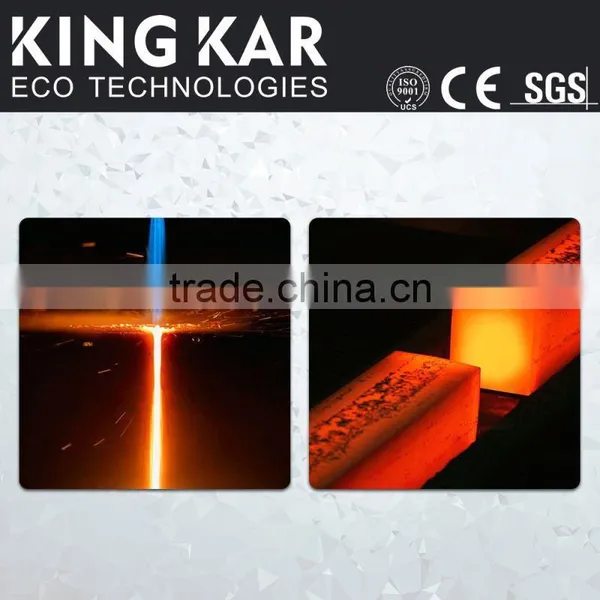

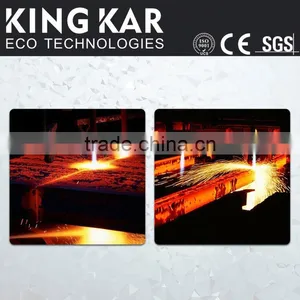

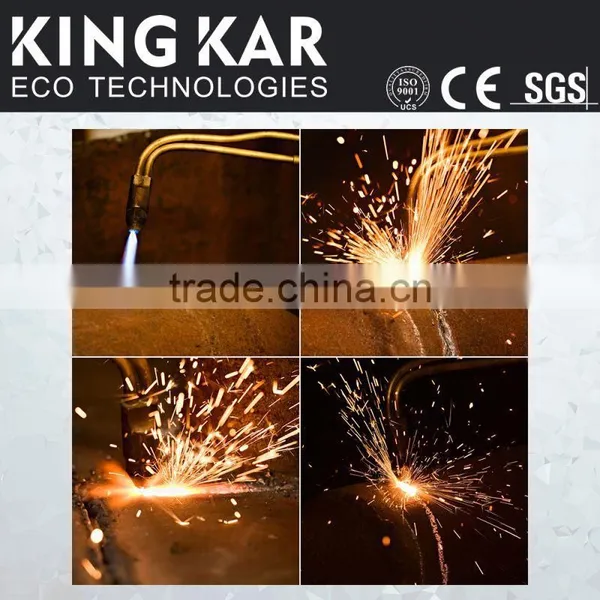

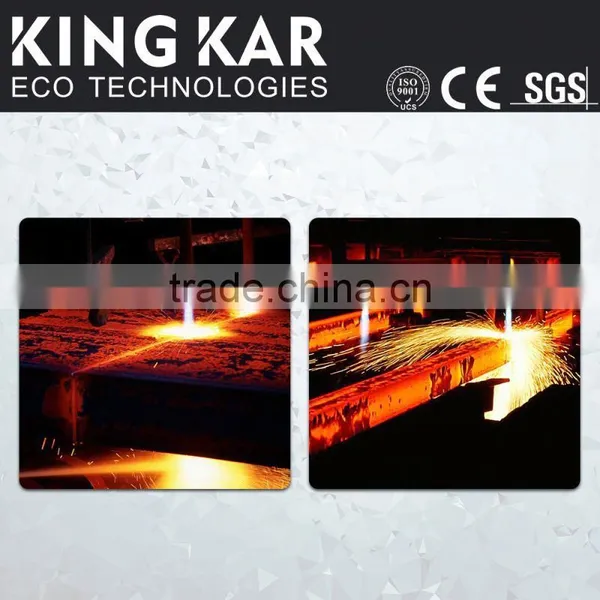

Working show

Packaging

We can do OEM and also can design as your special request.

If you are interested in it, please don't hesitate to contact us!
