Home > Chemicals > Fiberglass Products > Other Fiberglass Products > High Strength Fiberglass Push Puller for Hot Sale

High Strength Fiberglass Push Puller for Hot Sale

High Strength Fiberglass Push Puller for Hot Sale photo-1
High Strength Fiberglass Push Puller for Hot Sale photo-2
High Strength Fiberglass Push Puller for Hot Sale photo-3
High Strength Fiberglass Push Puller for Hot Sale photo-4
High Strength Fiberglass Push Puller for Hot Sale photo-5
High Strength Fiberglass Push Puller for Hot Sale photo-6
US$ 200 - 350 MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Long Zhuo
Model Number:
FDR
Payment & Shipping
Payment Methods:
Port of Shipment:
xin gang
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name Long Zhuo
Model Number FDR
Application Multifunctional
Surface Treatment Smooth
Technique Pultrusion
Dimensions Dia.4.5mm to 16mm
  High strength fiberglass push puller for hot sale

High strength fiberglass push puller for hot sale
Product Description

Introduction:

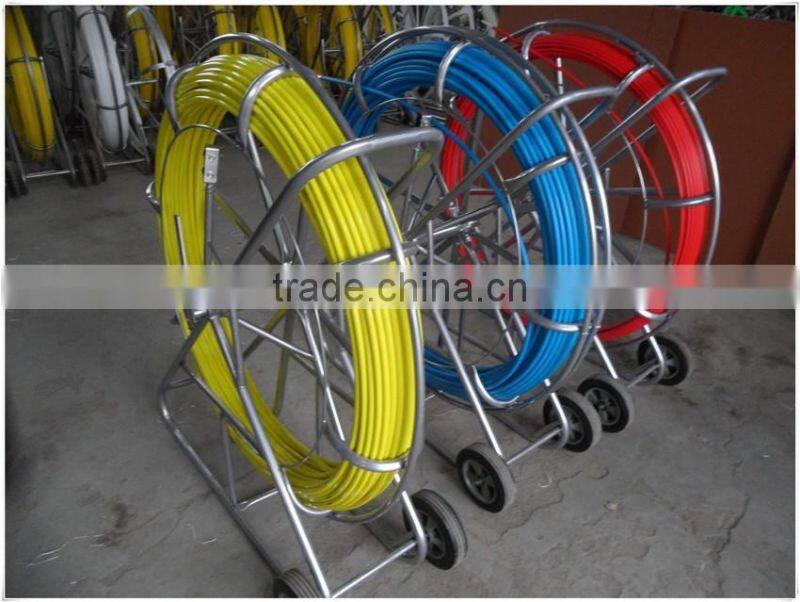

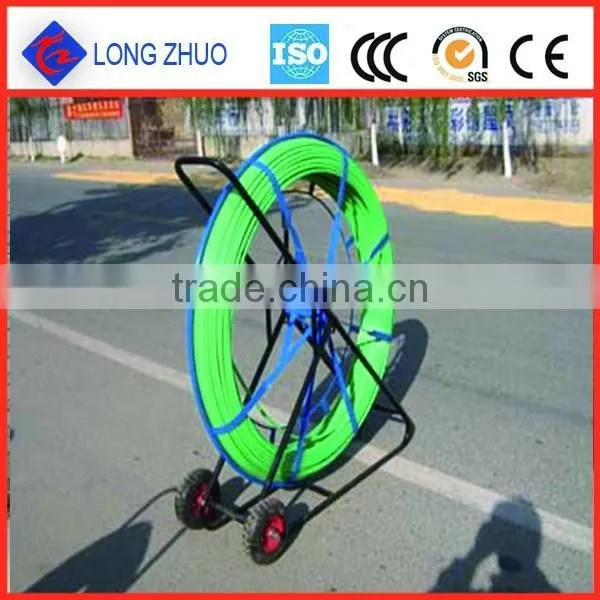

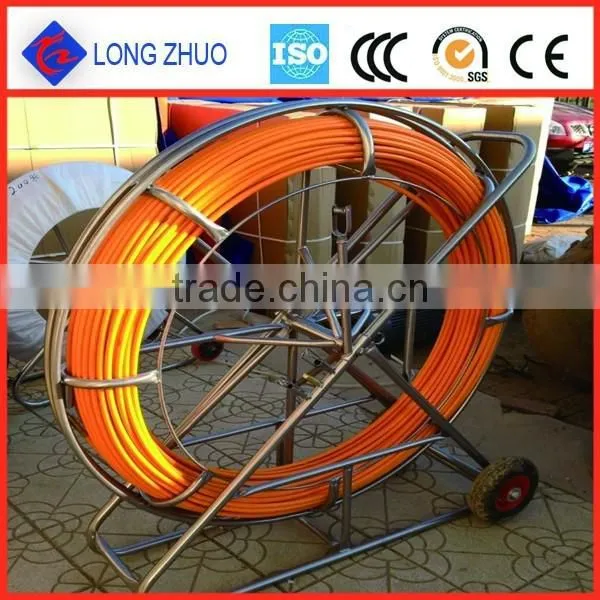

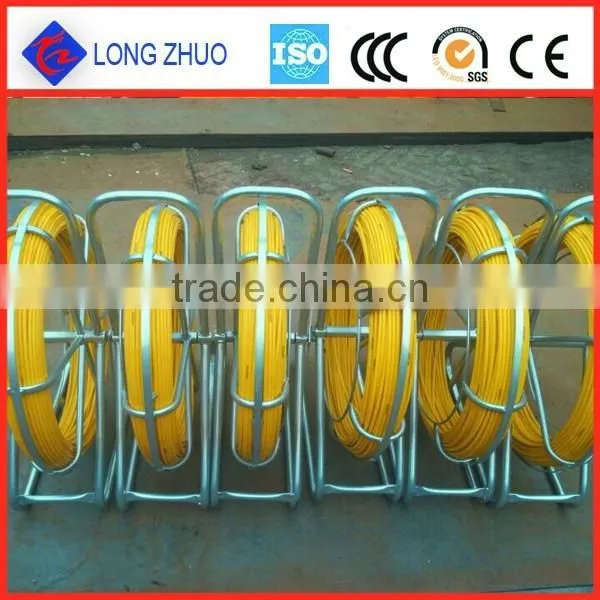

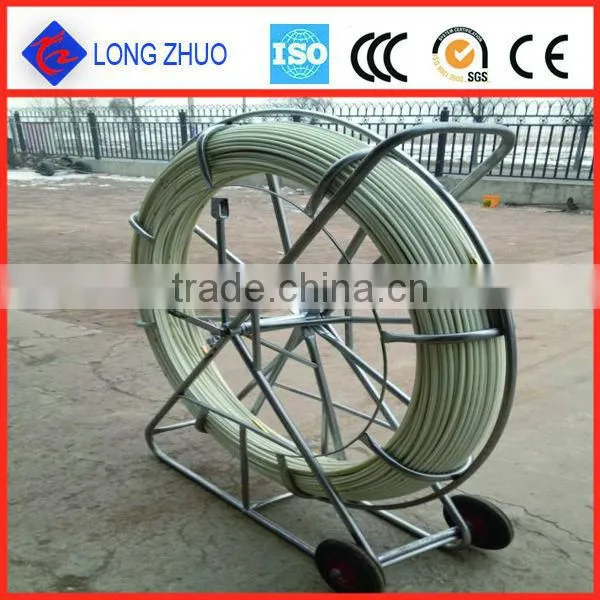

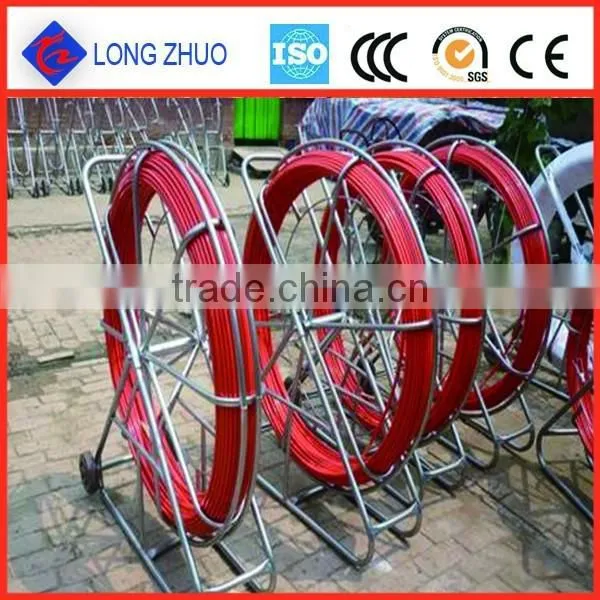

Duct rodders are composed of fiber glass rod which was extruded by fiber glass and high strength resin at high temperature.

It was covered by a high density polyethylene engineering plastic as its protect layer, which make duct rodder cover sliding on surface,    durable, corrosion resistant

It also has good insulation performance, which make them safe for use in cable occupied duct.

Features:

Strong non-conductive fiberglass rod construction

Stainless steel drawing head

For longer conduit runs and underground duct

Rugged tubular steel reel with adjustable position.

Feed device allows rod to feed out or be wound back onto reel with easy push or pull of rod.

Duct rods/duct rodders have many applications which is not only pulling the cable but also pulling electric tools and its repair is very easy and available.

Applications:

♦  This kind of products can be used for telecom cables, cable pipe and cleaning and plastic pipe of cloths to put.

♦  When using draws out the FPR pole by the pulley, then with a corresponding metal joint, penetrates in the pipeline.

 When cleaning, guide head will drive cleaning tools to clean the pipe;

♦  When arranges the cable, you may first leads the steel wire or the iron wire, then enters the pipe  with the steel wire or the iron wire hauling cable.

Specifications:

Technical Date of Fiberglass Duct Rodder

Specification

Rod Diameter (mm)

Φ4.5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16



Rod Length (m)

50m~350m



Frame Spec.(mm)

1300x450x1330,1200x420x1220,980x350x1000,680x240x700,420x180x400



Material:

Fiber glass rod inner,

Extruded by fiber glass and high strength resin at high temperature



Fiber glass rod outer

High Density polyethylene coating



Metal Frame

Steel with high-temperature sprayed plastic or hot dip galvanized



Physical Property

Fiber glass content

75-80%



Density

>1.9gr/cm3



Working environment

-40°C to +80°C



Minimum Pulling strength

4000N +/-5%



Consistency of rod

137gr/m



Flexural Modulus

>46.500Mpa



Elongation at break

2.5-3%



Min Bending Radius

388mm





 High strength fiberglass push puller for hot sale


Packaging & Shipping



Packaging Detail: duct rodder can be packaged in plastic woven, pallet or as your request



Delivery Detail: duct rodder can be ship within 15days after recieve your deposit

High strength fiberglass push puller for hot sale


Our Services

Service:

♦  Inquiry response: Your inquiries will be replied 24 hours.

♦  Sample support: Two free sample are available in 5-7days.

♦  Before&After Service.

♦  Customization ( Product customization services and  Packaging customization services)


Contact Information



We promise that we would provide the most qualified products with most favorable price.



Please feel free to contact me if you are interested.

High strength fiberglass push puller for hot sale
