High Quality Fiberglass Duct Rodder/FRP Conduit Snake Duct Rod/Cable Duct Rod
- 5000 Set / Sets per Month
- xin gang
- Credit Card
Product Details
Place of Origin: | Hebei, China | Brand Name: | Long Zhuo | Model Number: | FDR |
Application: | Multifunctional | Surface Treatment: | Smooth | Technique: | Pultrusion |
Dimensions: | Dia.4.5mm to 16mm, Dia.4.5mm to 16mm |
Product Description
High Quality Fiberglass Duct Rodder High Quality Fiberglass Duct Rodder/FRP Conduit Snake Duct Rod/Cable Duct Rod
Duct rodder is composed of fiberglass rod which is extruded by fiber glass rod and high strength resin
at high temperature. This type of rod has high tensile strength and flexibility. It is covered imported
ABS engineering plastic as it protect layer,which make duct rodder cover sliding on the surface, durable,
corrosion resistant and has good insulation performance. Which make them safe for use in cable pulling in the conduit.

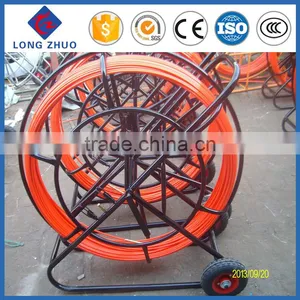

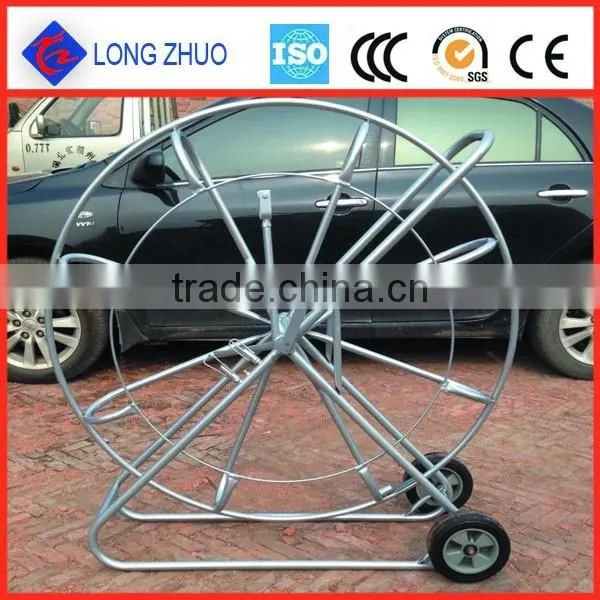

Duct rodders will equipped with different size reel accordingto the length of rod. There are wheels on the reel,
which could make it easy to move.
Technical Date of Fiberglass Duct Rodder | |||
Specification | Rod Diameter (mm) | Φ4.5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 |
|
Rod Length (m) | 50m~350m |
| |
Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700,420x180x400 |
| |
Material: | Fiber glass rod inner, | Extruded by fiber glass and high strength resin at high temperature |
|
Fiber glass rod outer | High Density polyethylene coating |
| |
Metal Frame | Steel with high-temperature sprayed plastic or hot dip galvanized |
| |
Physical Property | Fiber glass content | 75-80% |
|
Density | >1.9gr/cm3 |
| |
Working environment | -40°C to +80°C |
| |
Minimum Pulling strength | 4000N +/-5% |
| |
Consistency of rod | 137gr/m |
| |
Flexural Modulus | >46.500Mpa |
| |
Elongation at break | 2.5-3% |
| |
Min Bending Radius | 388mm |
|
Product Application:
mainly apply in tow lead rope through a pipe.And this kind of products can be used for telecom cables,
cable pipe and cleaning and plastic pipe of cloths to put and so on...
Features and Benefits:
1-Light weight, durable, resistance to acid, alkali, aging resistant, corrosion resistant.
2-High tensile strength and bending properties, which make it to go through narrow pipes easily.
3-Good temperature adaptability, the product will not soften in hot weather / nor become brittle in cold weather.
Its usability will not be affected by temperature.
4-Outer protect layer are made of high density polyethylene engineering plastic, which has good anti-UV capability.
5-Cover was coated with long-term UV-resistant polyethylene.
6-Its surface has the advantage of smooth, wear-resistant and long service life.
7-There are meter marks on the protect layer of duct rodder, which can be used for measuring distance.
Marks are printed by professional printing machine, which has the advantage of strong adhesion,
clear writing, waterproof, anti-ultraviolet, it can be still clear even after using many times.
8-There are several kinds of colors for the rod for your chosen.

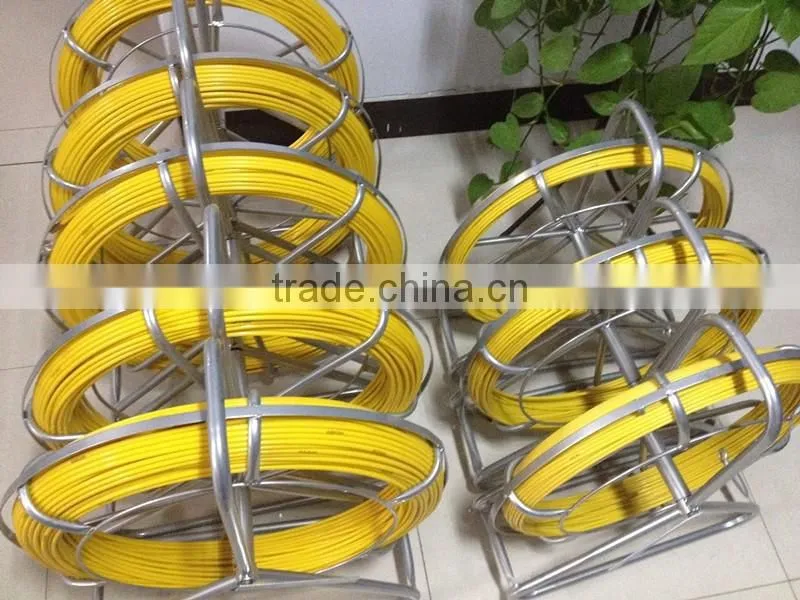

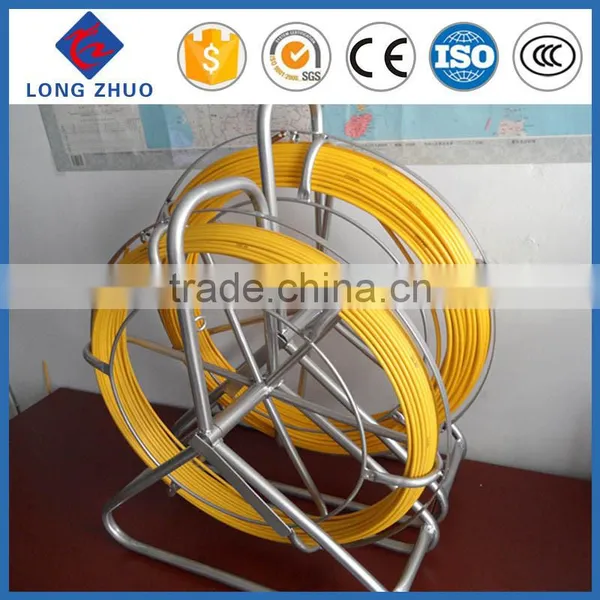

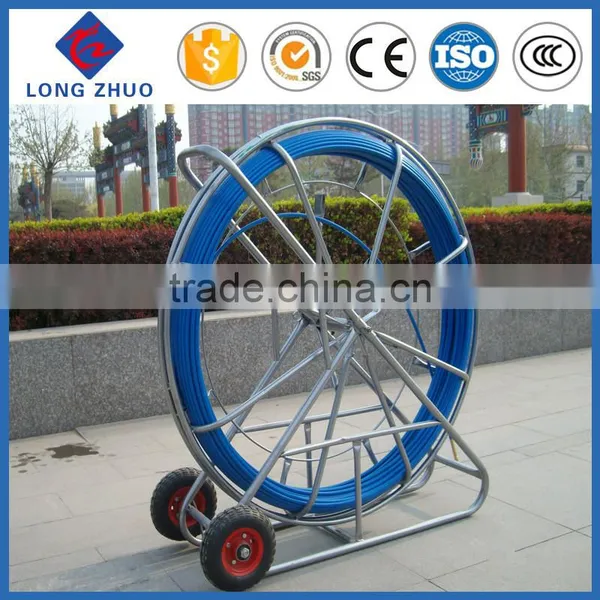

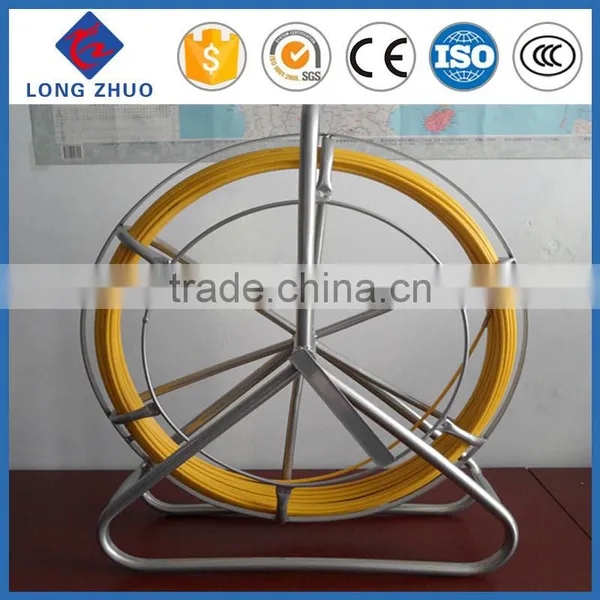

Product Show:
Packaging Detail: duct rodder can be packaged in plastic woven, pallet or as your request
Delivery Detail: duct rodder can be ship within 15days after recieve your deposit
We could give you most appropriate recommendations about our product according your need,
send samples if you need , and We will do our best to deal with the problems our customers encountered.
If you have any problem please contact us without hesitate .We will do our best to sevice for you
For further information, plz feel free to contact me: Skype: fan.kylin
We promise that we would provide the most qualified products with most favorable price.
Please feel free to contact me if you are interested. Look forward to contacting us and wish we could reach a deal ASAP.
