Colorful Fiberglass Push Pull Rod/10mm 250m FRP Duct Rodder

Colorful Fiberglass Push Pull Rod/10mm 250m FRP Duct Rodder photo-1

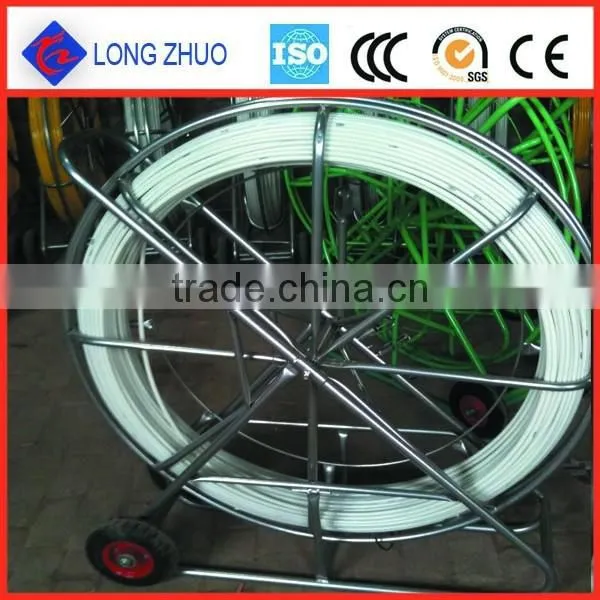

Colorful Fiberglass Push Pull Rod/10mm 250m FRP Duct Rodder photo-2

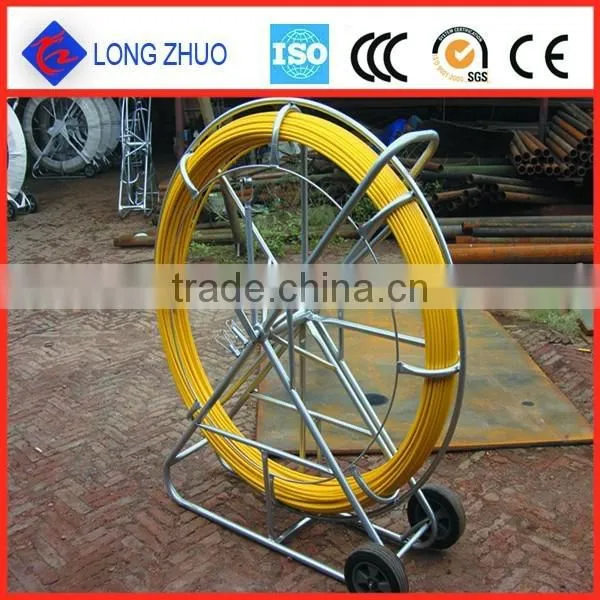

Colorful Fiberglass Push Pull Rod/10mm 250m FRP Duct Rodder photo-3
US$ 100 - 300 MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Long Zhuo
Model Number:
FDR
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name Long Zhuo
Model Number FDR
Application Traction guide line in the pipeline, as well as the protection communi
Surface Treatment High pressure low density polyethylene protective layer
Technique pultrusion
Dimensions 50-300m

Colorful fiberglass push pull rod/10mm 250m FRP duct rodder



Fiberglass duct rodder in the pipeline traction guide rope is a good auxiliary tool. Smooth and full of elasticity surface can make the fiberglass duct rodder  easily through the narrow passage.  fiberglass duct rodderconsists of three parts: Copper, glass fiber reinforced, high pressure low density polyethylene protective layer(smooth and strong, can be resistant to bad environment). Copper conductor article make fiberglass duct rodder can be easily placed in different ways.



1.Details:

(1)  Outer protect layer are made of  high density polyethylene and import material.

(2)  Inner Core is E-Glass Fiber.

(3)  Rod material is  FRPI import solid core material.

(4)  There are kinds of colors and size for the rod to choose.

Colorful fiberglass push pull rod/10mm 250m FRP duct rodder



2.Advantages:

(1)  High tensile strength and bending properties, which make it to go through narrow pipes easily.

(2)  Light weight,esistance to acid, aging resistant, corrosion resistant.

(3)  Good temperature adaptability, the product will neither soften in hot weather/nor become brittle in cold weather.

(4)  It surface has the advantage of smooth, wear-resistant and long service life.



3.Technical data:

Property

Value

Minimum pulling strength

5000 N±5%

Tensile Modulus

>30000 Mpa

Consistency of rod

150gr/m±5%

Flexural Modulus

>30000 Mpa

Elongation at Break

2.5-3%

Min. Bending Radius

400mm





4.Our services

(1)Our usual packing material is carton or plastic.While if your order quantity quit considerable,we will adjust according your need.

(2)Usually we will delivery the produc 15 days after your payment.But considering your practical situation,we will make our best to satisfy your request.

Anyway we will do our best to satisfy consumer's need.



5.If you have the following questions,please look here

1,  Whether you have the modle number and the product size we want?

      Answer: Don't worry.We can make the  modle number and the product size you want.



2,  Whether the quantity of the order effect our discount ?

     Answer:  It's sure that your order quantity will  effect your discount.Because the more you ordered, we will save more cost,so we could give you the more privilege.



3, If you have any other questions,please contact us coveniently,we will answer your questions as well as quickly.



Product display:

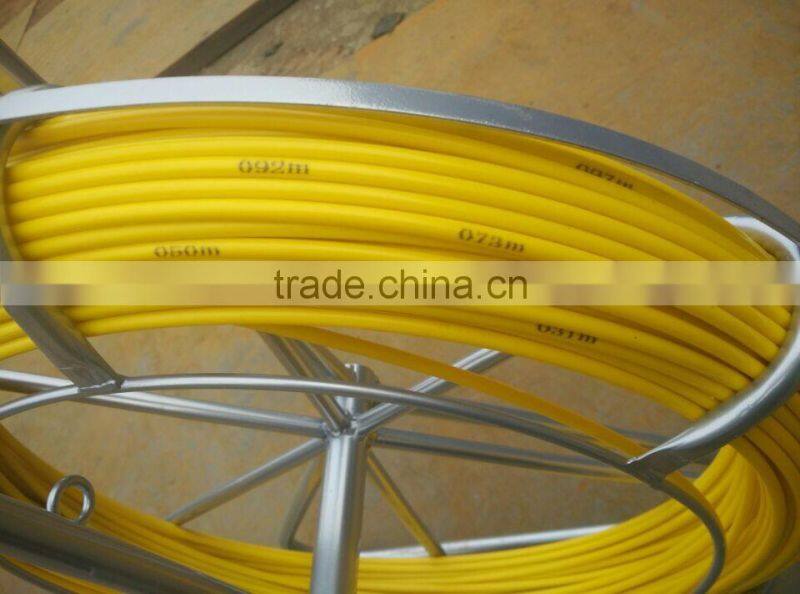

Colorful fiberglass push pull rod/10mm 250m FRP duct rodderColorful fiberglass push pull rod/10mm 250m FRP duct rodder

Colorful fiberglass push pull rod/10mm 250m FRP duct rodder

Colorful fiberglass push pull rod/10mm 250m FRP duct rodderColorful fiberglass push pull rod/10mm 250m FRP duct rodder



6.Application

Be used in traction cables

Colorful fiberglass push pull rod/10mm 250m FRP duct rodder



Applied to the pipeline dredge

Colorful fiberglass push pull rod/10mm 250m FRP duct rodder



7.Contact Information

Colorful fiberglass push pull rod/10mm 250m FRP duct rodder
