Pruduct Name: 11mm fiberglass snake duct rodder/Cable conduit rod
Specification:
The diameter of the duct rodder is from 4.5mm to 18mm. The length of fiberglass rod is from 50 meter to 350meter
Introduction:
Duct Rodder applies in tow lead rope through a pipe and it is auxiliary means. Because of its surface smooth and
high resilience, so the FRP perforator with ease passes the narrow channel. The duct rodder consists of two parts:
the Epoxy glass fiber strengthen inner and the high density polyethylene protective layer (smooth and firm which can
resist the adverse circumstance). It has the advantages of time saving, reducing effort, improving efficiency etc.
Application:
And this kind of products can be used for telecom cables, cable pipe and cleaning and plastic pipe of cloths to put.
When using draws out the FPR pole by the pulley, then with a corresponding metal joint, penetrates in the pipeline.
When cleaning, guide head will drive cleaning tools to clean the pipe; When arranges the cable, you may first leads
the steel wire or the iron wire, then enters the pipe with the steel wire or the iron wire hauling cable.
Advantages:
1. Strong non-conductive fiberglass rod construction

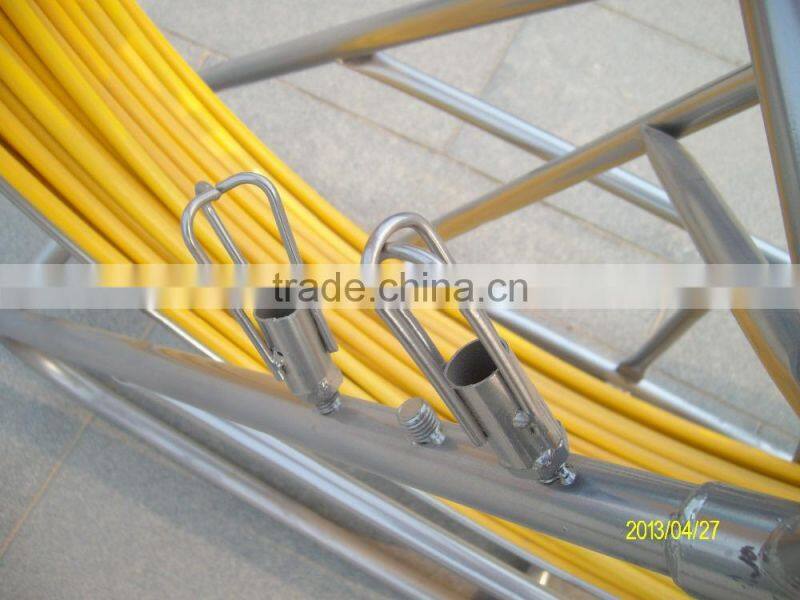

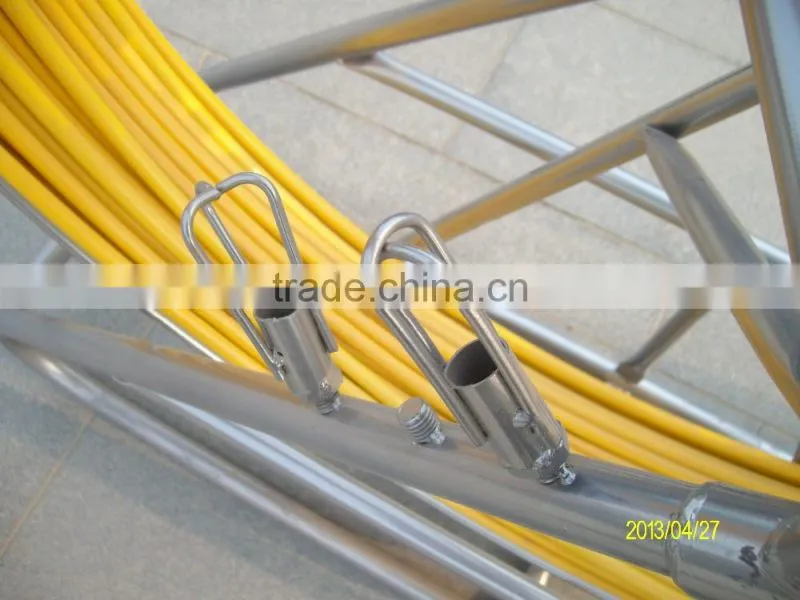

2. Stainless steel drawing head
3. For longer conduit runs and underground duct

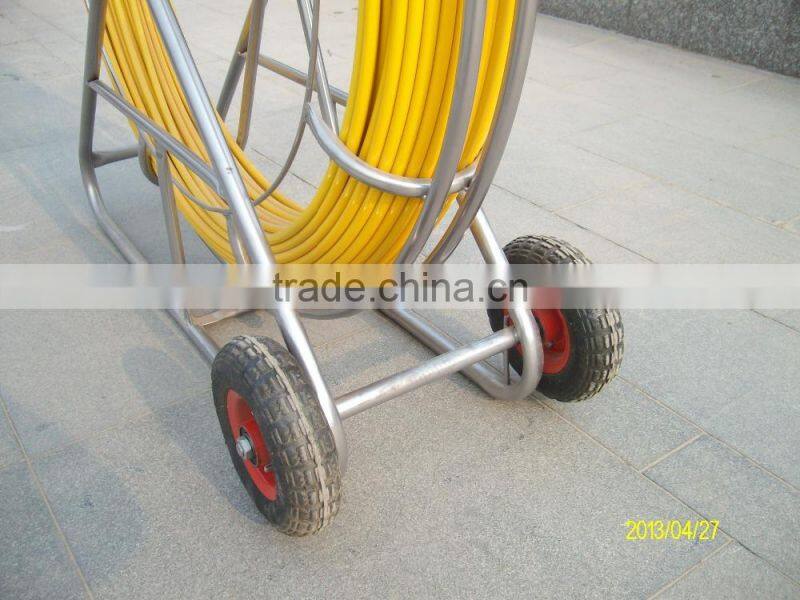

4. Rugged tubular steel reel with adjustable position.

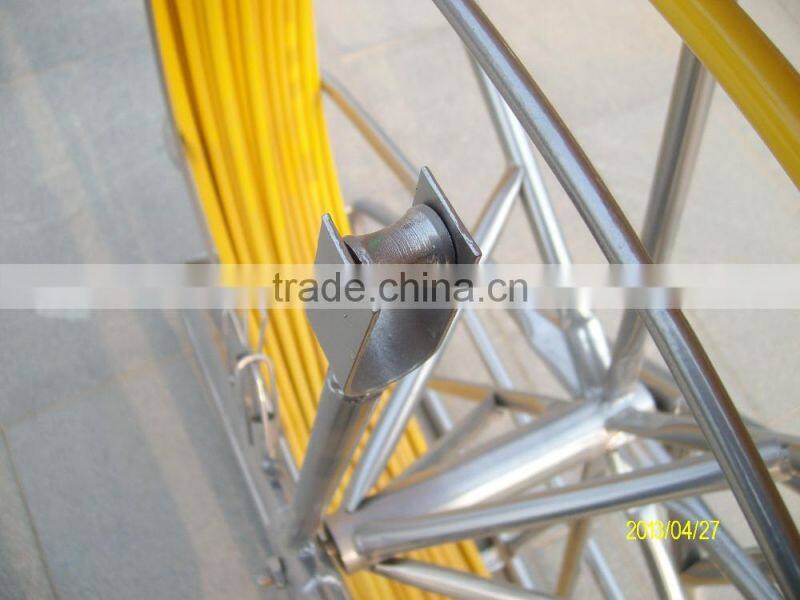

5. Feed device allows rod to feed out or be wound back onto reel with easy push or pull of rod.
6. Duct rods/duct rodders have many applications which is not only pulling the cable but also pulling electric tools and its
repair is very easy and available.
Technical Date of Fiberglass Duct Rodder | |||
Specification | Rod Diameter (mm) | Φ4.5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 | |
Rod Length (m) | 50m~350m | ||
Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700,420x180x400 | ||
Material: | Fiber glass rod inner, | Extruded by fiber glass and high strength resin at high temperature | |
Fiber glass rod outer | High Density polyethylene coating | ||
Metal Frame | Steel with high-temperature sprayed plastic or hot dip galvanized | ||
Physical Property | Fiber glass content | 75-80% | |
Density | >1.9gr/cm3 | ||
Working environment | -40°C to +80°C | ||
Minimum Pulling strength | 4000N +/-5% | ||
Consistency of rod | 137gr/m | ||
Flexural Modulus | >46.500Mpa | ||
Elongation at break | 2.5-3% | ||
Min Bending Radius | 388mm | ||

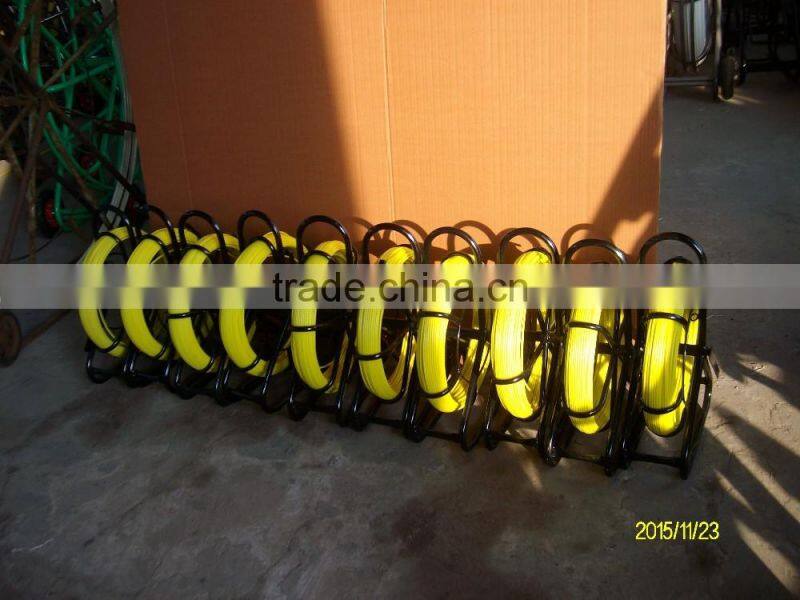

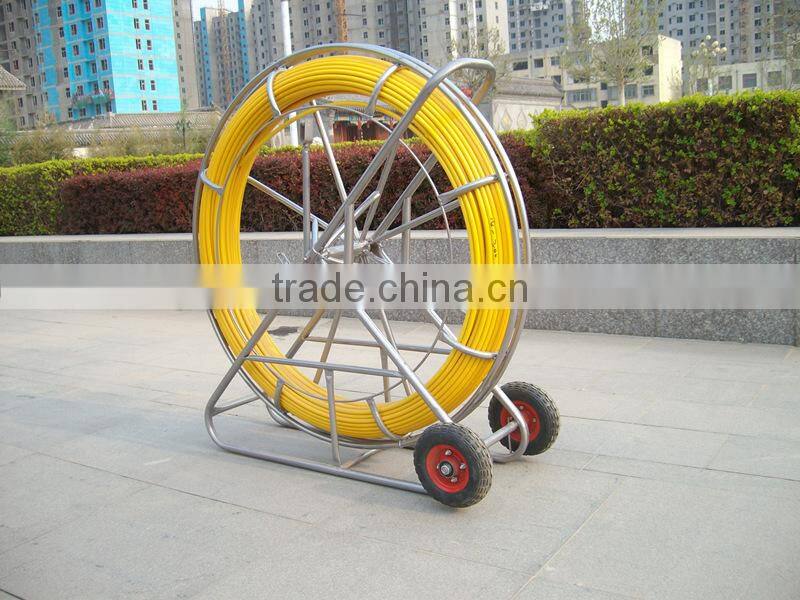

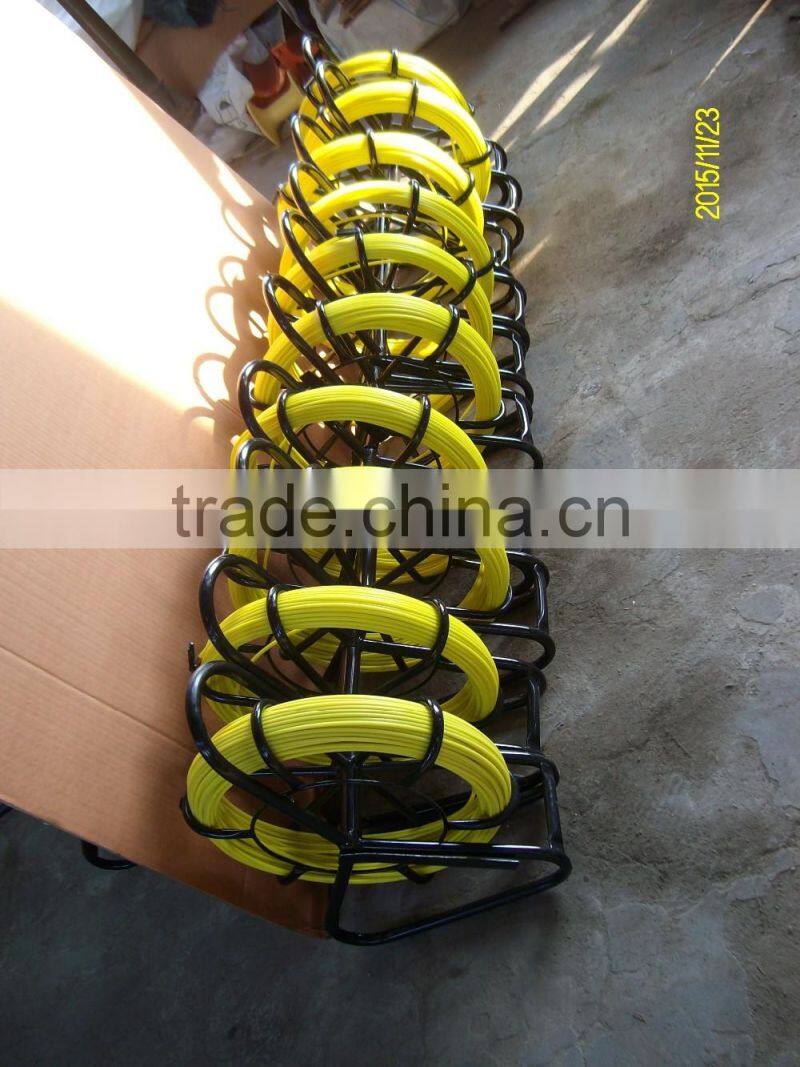

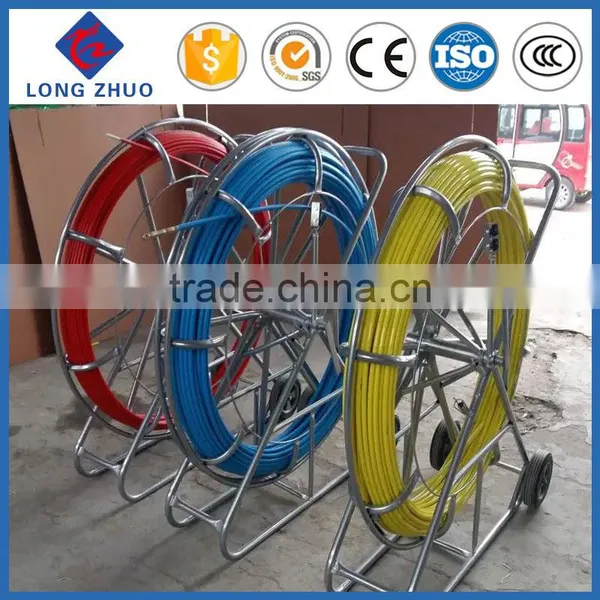

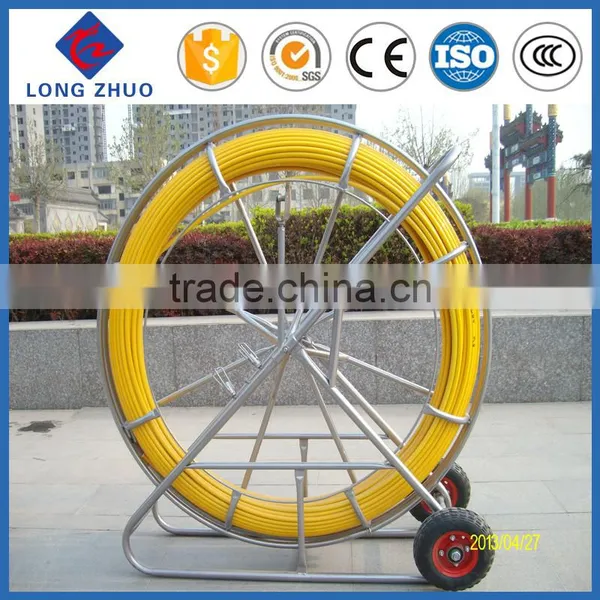

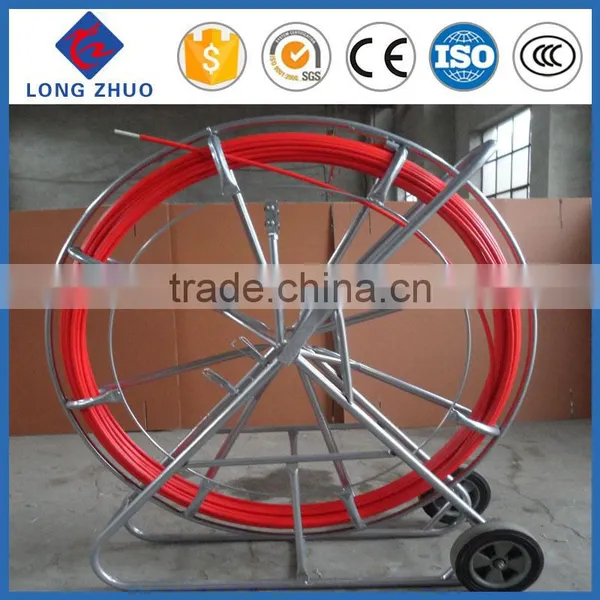

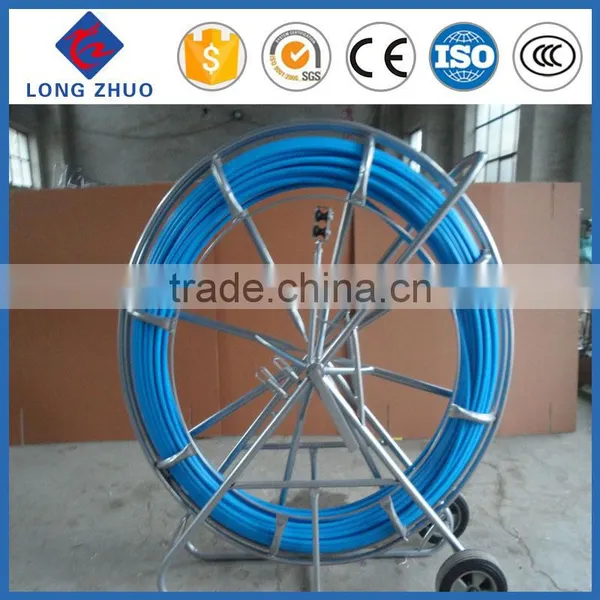

Pruduct Showcase:
