Fiberglass Bullet Duct Rod/Cable Laying Tools/Drainage Duct Rodder

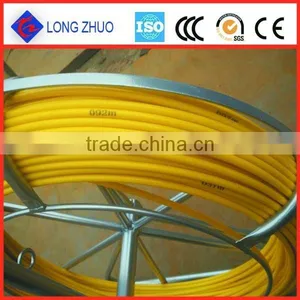

Fiberglass Bullet Duct Rod/Cable Laying Tools/Drainage Duct Rodder photo-1

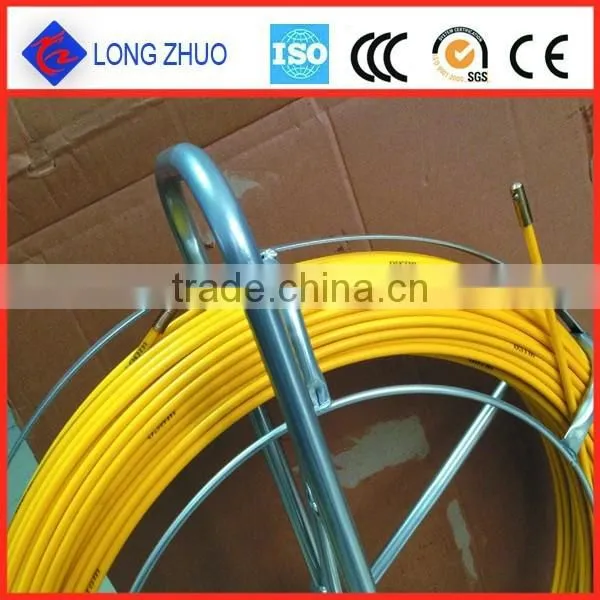

Fiberglass Bullet Duct Rod/Cable Laying Tools/Drainage Duct Rodder photo-2

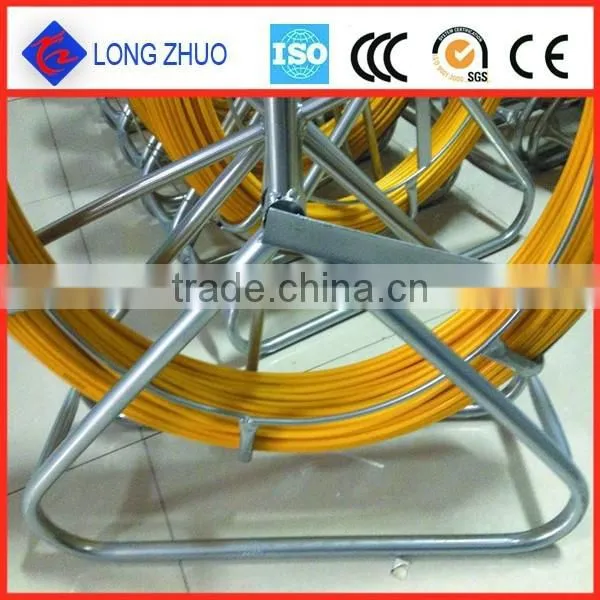

Fiberglass Bullet Duct Rod/Cable Laying Tools/Drainage Duct Rodder photo-3

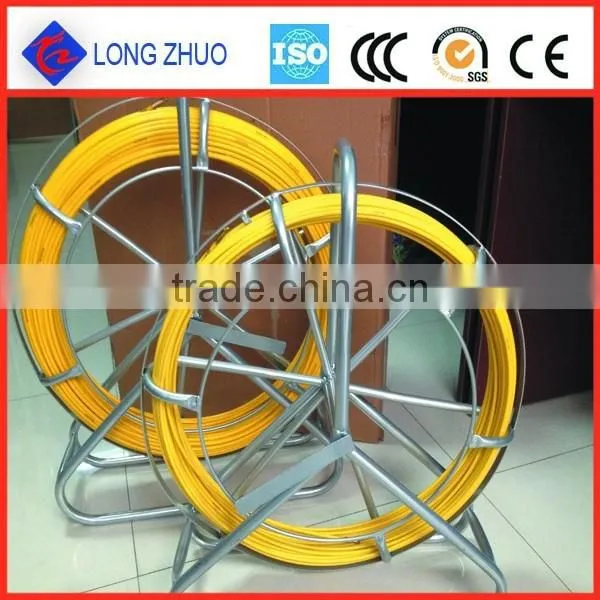

Fiberglass Bullet Duct Rod/Cable Laying Tools/Drainage Duct Rodder photo-4

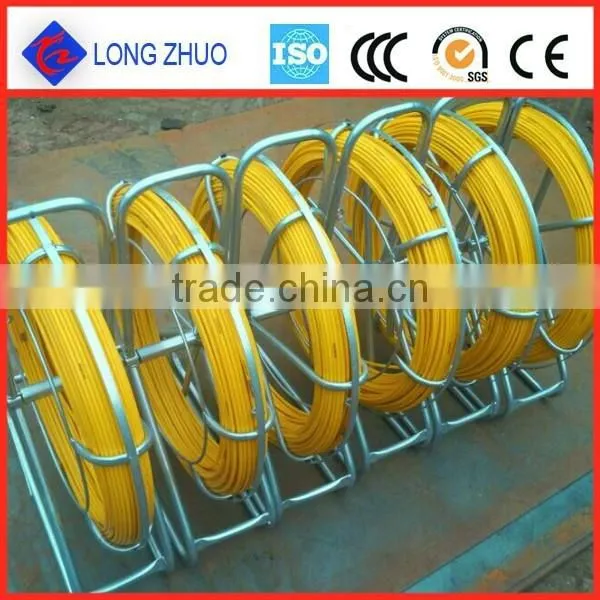

Fiberglass Bullet Duct Rod/Cable Laying Tools/Drainage Duct Rodder photo-5
Fiberglass Bullet Duct Rod/Cable Laying Tools/Drainage Duct Rodder photo-6
US$ 200 - 350 MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Long Zhuo
Model Number:
FDR
Payment & Shipping
Payment Methods:
Port of Shipment:
xin gang
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name Long Zhuo
Model Number FDR
Application Multifunctional
Surface Treatment Smooth
Technique Pultrusion
Dimensions Dia.4.5mm to 16mm, Dia.4.5mm to 16mm

Fiberglass bullet duct rod/Cable laying tools/Drainage duct rodder


Product Description

Duct rodder is composed of fiberglass rod which is extruded by fiber glass rod and high strength resin at high temperature.

This type of rod has high tensile strength and flexibility. It is covered imported ABS engineering plastic as it protect layer,

which make duct rodder cover sliding on the surface, durable, corrosion resistant and has good insulation performance.

Which make them safe for use in cable pulling in the conduit. Duct rodders will equipped with different size reel according

to the length of rod. There are wheels on the reel, which could make it easy to move.

Fiberglass bullet duct rod/Cable laying tools/Drainage duct rodder

Technical Date of Fiberglass Duct Rodder

Specification

Rod Diameter (mm)

                 Φ4.5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16



Rod Length (m)

50m~350m



Frame Spec.(mm)

1300x450x1330,1200x420x1220,980x350x1000,680x240x700,420x180x400



Material:

Fiber glass rod inner,

Extruded by fiber glass and high strength resin at high temperature



Fiber glass rod outer

High Density polyethylene coating



Metal Frame

Steel with high-temperature sprayed plastic or hot dip galvanized



Physical Property

Fiber glass content

75-80%



Density

>1.9gr/cm3



Working environment

-40°C to +80°C



Minimum Pulling strength

4000N +/-5%



Consistency of rod

137gr/m



Flexural Modulus

>46.500Mpa



Elongation at break

2.5-3%



Min Bending Radius

388mm





































































Product Application:

mainly apply in tow lead rope through a pipe.And this kind of products can be used for telecom cables,

cable pipe and cleaning and plastic pipe of cloths to put and so on...



Fiberglass bullet duct rod/Cable laying tools/Drainage duct rodder





 Features and Benefits:



1-Light weight, durable, resistance to acid, alkali, aging resistant, corrosion resistant.

2-High tensile strength and bending properties, which make it to go through narrow pipes easily.
3-Good temperature adaptability, the product will not soften in hot weather / nor become brittle in cold weather.

Its usability will not be affected by temperature.

4-Outer protect layer are made of high density polyethylene engineering plastic, which has good anti-UV capability.
5-Cover was coated with long-term UV-resistant polyethylene.
6-Its surface has the advantage of smooth, wear-resistant and long service life.
7-There are meter marks on the protect layer of duct rodder, which can be used for measuring distance.

Marks are printed by professional printing machine, which has the advantage of strong adhesion,

clear writing, waterproof, anti-ultraviolet, it can be still clear even after using many times.
8-There are several kinds of colors for the rod for your chosen.

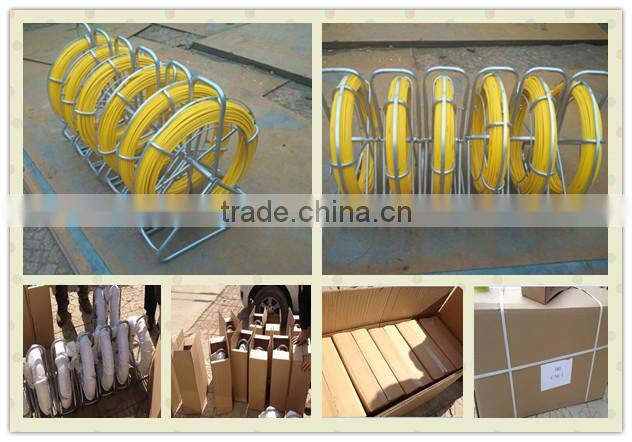

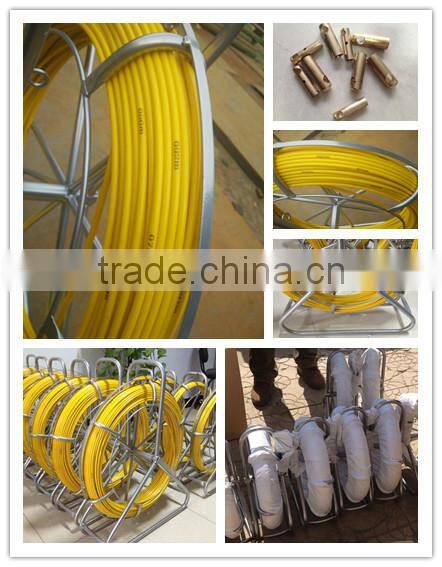

Product Show:

Fiberglass bullet duct rod/Cable laying tools/Drainage duct rodder

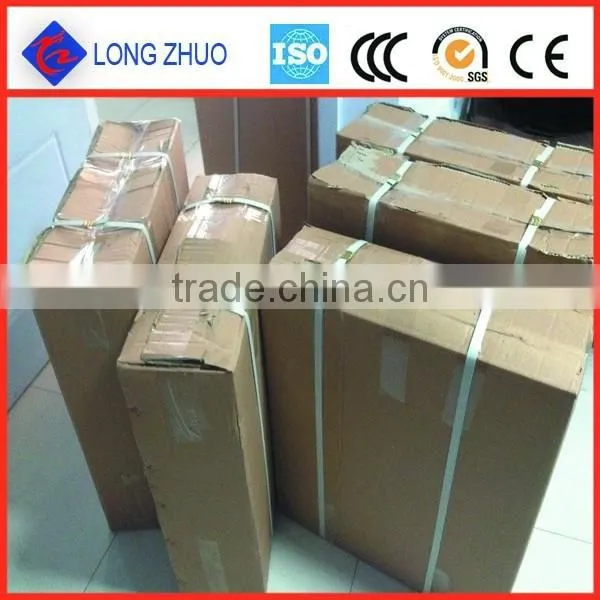

Packaging & Shipping

  Packaging Detail: duct rodder can be packaged in plastic woven, pallet or as your request



  Delivery Detail: duct rodder can be ship within 15days after recieve your deposit



Fiberglass bullet duct rod/Cable laying tools/Drainage duct rodder





Our Services

We could give you most appropriate recommendations about our product according your need,



send samples if you need , and We will do our best to deal with the problems our customers encountered.



If you have any problem please contact us without hesitate .We will do our best to sevice for you

For further information, plz feel free to contact me: Skype: fan.kylin
