Home > Chemicals > Fiberglass Products > Other Fiberglass Products > Fiberglass Push Rod/Flexible Steel Rod/Solid Fiberglass Rods

Fiberglass Push Rod/Flexible Steel Rod/Solid Fiberglass Rods

Fiberglass Push Rod/Flexible Steel Rod/Solid Fiberglass Rods photo-1
Fiberglass Push Rod/Flexible Steel Rod/Solid Fiberglass Rods photo-2
Fiberglass Push Rod/Flexible Steel Rod/Solid Fiberglass Rods photo-3
US$ 200 - 320 MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Long Zhuo
Model Number:
FDR
Payment & Shipping
Payment Methods:
Port of Shipment:
xin gang
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name Long Zhuo
Model Number FDR
Application Multifunctional
Surface Treatment Smooth
Technique Pultrusion
Dimensions Dia.4.5mm to 16mm

Fiberglass push rod


Product Description

Introduction

(1)Duct rodders are composed of fiber glass rod which was extruded by fiber glass and high strength resin at high temperature.

(2) It was covered by a high density polyethylene engineering plastic.

(3)The color and length all can be customized.

 Fiberglass push rod/Flexible steel rod/Solid fiberglass rods

Detail Chart

              Technical Date of Fiberglass Duct Rodder

Specification

Rod Diameter (mm)

Φ4.5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16

Rod Length (m)

50m~350m

Frame Spec.(mm)

1300x450x1330,1200x420x1220,980x350x1000,680x240x700,420x180x400

Material:

Fiber glass rod inner,

Extruded by fiber glass and high strength resin at high temperature

Fiber glass rod outer

High Density polyethylene coating

Metal Frame

Steel with high-temperature sprayed plastic or hot dip galvanized

Physical Property

Fiber glass content

75-80%

Density

>1.9gr/cm3

Working environment

-40°C to +80°C

Minimum Pulling strength

4000N +/-5%

Consistency of rod

137gr/m

Flexural Modulus

>46.500Mpa

Elongation at break

2.5-3%

Min Bending Radius

388mm



Our Advantage

1.Factory direct sale;
2.Industry and trade integration business;
3.10 years experience;
4.Various design;
5.Flexible payment;
6.Fast, accurate quotes;
7.Our good service .



Product show

Fiberglass push rod/Flexible steel rod/Solid fiberglass rods

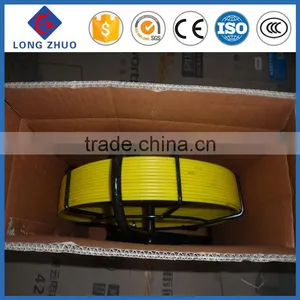

Packaging & Shipping



Fiberglass push rod/Flexible steel rod/Solid fiberglass rods

Packaging Detail: duct rodder can be packaged in plastic woven, pallet or as your reques.

Delivery Detail: duct rodder can be ship within 15days after recieve your deposit.


Our Services

What can we do?

Inquiry response: Your inquiries will be replied 24 hours.

Sample support: Two free sample are available in 5-7days.

product recommendation: give you most appropriate recommendations about our product.

according your need.



Why choose us?

1. Professional

2. Highest quality

3. Most competitive price


Company Information

Why Choose Long Zhuo ?



1. Highest Quality

We are the manufacture who adopts import raw materials.  It is amazing,and with cheap price andguaranteed quality.

 2. Most Competitive Price

We can adjustment the price according to your market demand’s changes,and also can launch a series of promotional activities in a bad economic environment
3. Professional

We are special in producing and sells, as development, methods, and handling.
4. Best Service

Answering emails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business.
