HHE-SUN Pressed Steel Tank,galvanized steel water tank

 Galvanize steel  water tank

Introduction of Galvanized Pressed steel

The hot dipped galvanized steel water tank is defers to the GB code 92SS177 manufactured new type water tank. The manufacture and the installment of tank have no influence of the construction. There are not needed the welding apparatus, the surface is hot dipped galvanize antiseptic treatment. It’s artistic durable, prevents two times pollution to water quality and it beneficial to human health. The water tank meets the construction product standardization, the serration and the factorization request.

This product uses the Q235 steel plate, ramming to1000*1000 and the 1000*500 standard plate, the peripheral drill hole, undergoes hot dipped galvanized processing. When it assembles between the standard plate clamps use the rubber packing and bold fastening.

This product is suitable for the construction water storing, the regulating tank, heating system's inflation water tank, the condensate tank as well as the building construction, the geological prospecting, the industry, the defense project and so on temporarily store water tank.

This water tank volume has 24 kinds specifications, select for the design. The engineer also can design according to the water tank's length, width, high then factory assembles.

The inlet pipe, the outlet pipe, the overflow caliber and the position of water tank is depends on the designing. All around the water tank should have no less than 700mm channels, the bottom and the cover should no less than 600mm. When it installed, the bottom and all around between the bottom standard plate's joins must be located on the support.

Applications

1. Industrial Water Treatment with multi-layer media

2. Water Softening Application

3. Centralized Filtration System for high rise residential and commercial buildings such as condominiums, high rise         office building, hotels and resorts.

4. Aquaculture, fish farming and hatchery filtration system

5. Many other water filtration and treatment applications.

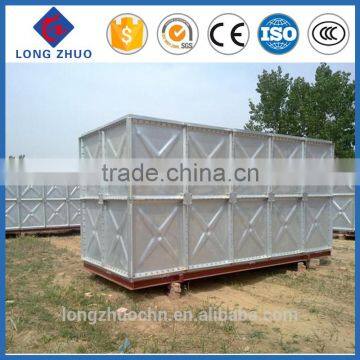

Picture show

Other accessories of Galvanize steel water tank

Feature of Galvanize steel water tank

Structure of Galvanize steel water tank

Packaging and shipment of Galvanize steel water tank

Our workshop of Galvanize steel water tank

Other SMC water tank in hot selling of our factory
