Assembled HDG water tank/5000 gallons no rust galvanized steel water tank
Application:
This water tank is widely used in storage and regulation of living water supply & construction water supply,
and temporary water storage tanks for expansion of the heating system, condensate tank and construction,
geological survey, industry, National defense project etc.
Various industries, civil water supply, HVAC, firefighting, food, beverage, vintage, water treatment, medicine,
petroleum, chemical and so on. Taking flexible, reasonable plate design, suitable for all sizes combined water
tank. Suitable for living water with PH value:6.5-8.5, using life:≥20 years.
Introduction:
The hot dipped galvanized steel water tank is manufactured new type water tank.
The manufacture and the installment of tank have no influence of the construction.
There are not needed the welding apparatus, the surface is hot dipped galvanize antiseptic treatment.
It’s artistic durable, prevents two timespollution to water quality and it beneficial to human health.
The water tank meets the construction product standardization, the serration and the factorization request.
Product Detail:
Long Zhuo Brand sectional water tanks are fabricated in 2 different measurements namely imperial and metric.
We provide panels in 1,220 mm x 1,220 mm for imperial and 1,000 mm x 1,000 mm for metricmeasurements.
For tanks of non standard measurements required, we do provide ribbed panels in any size,
this is to facilitate the planning and design of water storage system.
Needless to say, it would ease the problems of awkward space constrained location with water stored to maximum.
1. Design
1.1 Material
The panel is made of Q235 steel by hydraulic punching machine;
The size of the panel is :1220*1220mm, 1000*1000mm,1000*500mm, 500*500mm;
The thickness of the panel mainly includes: 5mm, 4.5mm, 3mm, 2.5mm, 2mm, 1.5mm. It is different according to the tank dimension.
1.2 Flanges
The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.
1.3 Reinforcement Method
All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported by top panel support, which shall be made of hot-dipped galvanized material.
2. Accessories
2.1 Bolt. nut & washers
hot-dipped galvanized material.
2.2 Sealing material
Non-toxic P.V.C foam tape shall be used in between the joints.
2.3 Covers
The tank cover shall be constructed from 1.4mm to 3.0mm of thickness hot-dipped galvanized material according to the requirement.
2.4 Ladders and Level Indicator
Internal & external ladder shall be made of hot-dipped galvanized material.
Standard Thickness for 1.22m x 1.22m Tank Panel
Type | 1.22m(H) | 2.44m(H) | 3.66m(H) | 4.88m(H) |
4th side panels |
|
|
| 5mm |
3rd side panels |
|
| 5mm | 5mm |
2nd side panels |
| 5mm | 5mm | 5mm |
1st side panels | 5mm | 5mm | 5mm | 5mm |
Bottom panels | 5mm | 5mm | 5mm | 5mm |
Standard Thickness for 1m x 1m Tank Panel
Type | 1.0m(H) | 2.0m(H) | 3.0m(H) | 4.0m(H) | 5.0m(H) |
5th side panels |
|
|
|
| 5mm |
4th side panels |
|
|
| 5mm | 5mm |
3rd side panels |
|
| 5mm | 5mm | 5mm |
2nd side panels |
| 5mm | 5mm | 5mm | 5mm |
1st side panels | 5mm | 5mm | 5mm | 5mm | 5mm |
Bottom panels | 5mm | 5mm | 5mm | 5mm | 5mm |

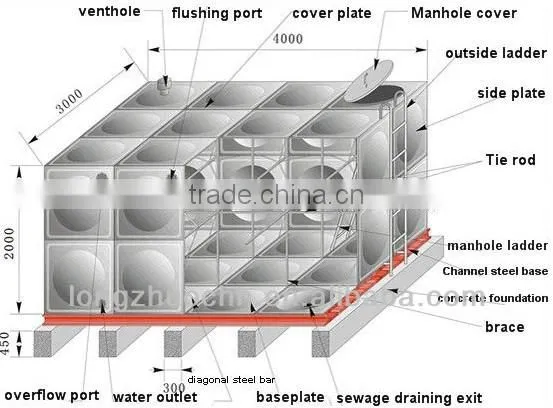

Struction:
Characteristic:
1- Easy to assemble.
2- Made of bottom, side and roof panels and panels with manhole.
3-Tank of different height uses different bottom panels, side panels and top panels strictly according to the assembling principle.
4-Assembling principle guarantees safety coefficient by reasonable saving of materials.
5-Supports system (tie system) is designed and verified by precise mechanical calculations and tests.
Installation Instructions:
1.Water tank foundation requires the geometry dimensions of concrete foundation should follow relative
stipulations of GB02S101 to be made. The height tolerance of the concrete foundation flat is <5mm;
2.Water Tank Installation:
Construction and Acceptance: professional welders weld by argon arc welding at site;
With standard power in construction field;
Around the water tank , there are intervals ≥500mm for inspection;
Visual inspection: no rust, no pollution; cabinet without obvious deformation, weld without leakage;
Meet all above mentioned conditions is qualified.
3.Water Tank Usage, repair and maintenance:
When match the pipe, please don’t put excessive pressure on both inlet and outlet of the pipe;
Don’t put the weight of valve and large diameter pipe on the tank outlet. If necessary, please set pipe support or lifting support;
For the expansion, contraction and vibration the welded pipe.please must install stretched flexible connectors;
4.Water tank allocation and accessories:
The supplying scope of our water tank mainly includes: cabinet, maintenance hole with lock, ladder, short pipe and single flange.
Our company can also provide matching accessories according to customer’s requirement, such as floating
ball valve, glass tube level gauge and all kinds of water tank disinfection equipment and so on.
Product Packing:
Our Workshop:
Why choose Long Zhuo?
1. Highest quality
We are the manufacture who adopts import raw materials. It is amazing, and with cheap price and guaranteed quality.
2. Most competitive price
We can adjustment the price according to your market demand’s changes, and also can launch a
series of promotional activities in a bad economic environment
3. Professional
We are special in producing and sells, as development, methods, and handling.
4. Best service
Answering emails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business.
