Tube Furnace

Name: Tube Furnace
Brand: SAIYE
SKU: 140877128
Availability: InStock

Zhengzhou Saiye Machinery Equipment Limited

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

SAIYE

Model Number:

SYXD-1400ST Tube Furnace

Place of Origin:

Henan, China

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao/ningbo/guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name SAIYE

Model Number SYXD-1400ST Tube Furnace

Place of Origin Henan, China

Specifications

Tube Furnace
1.Inside Chamber Size:dia60*300mm(diameter2.5" * 12")
2.Standard Working Temperature:1300.C

Tube Furnace

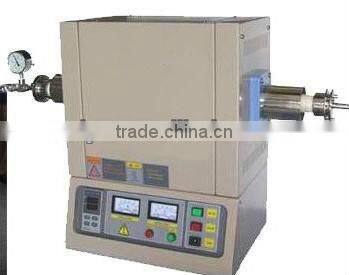

SYXD1400ST tube furnace is a precision benchtop furnace using quality ceramic SiC rod as heating elements. It is widely used for materials or chemical lab to sinter all types of new materials samples under vacuum or other gases condition. It is controlled by high precision SCR ( Silicon Controlled Rectifier) digital controller with accuracy +/-1.C and 30 segments programmable up to 1400.C.

Techncial parameter;

Inside Chamber Size	dia60x300mm(diameter2.5" x 12")
Standard Working Temperature	1300.C ( continuous )
Maximum Working Temperature	1400.C ( < 3 hrs)
Temperature Control	30 steps programmable and PID automatic control
Heating Rate	0~10.C / min (suggestion: =< 10.C)
Temperature Accuracy	+ 1.C
Heating Element	SiC heating elements
Working Voltage	AC 220V Single Phase 60/50 Hz (or according to your requirement)
Max. Power	5 KW
Net Weight	90 Kg

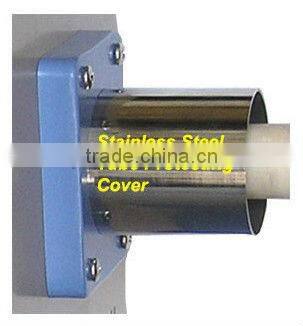

Note: The furnace tube is High purity Al2O3 ceramic

Dia40mm means outer diameter, inner diameter is about 32mm

300mm means the length of hot zone

Total length is 1000mm

Standard Sizes:

Model	Chamber size	Max. Temperature
XD-1400ST	Dia40x300mm (1.5"x12")	1400.C
XD-1400ST	Dia40x450mm (1.5"x18")	1400.C
XD-1400ST	Dia60x300mm (2.5"x12")	1400.C
XD-1400ST	Dia60x450mm (2.5"x18")	1400.C
XD-1400ST	Dia80x300mm (3.0"x12")	1400.C
XD-1400ST	Dia80x450mm (3.0"x18")	1400.C
XD-1400ST	Dia100x450mm (4.0"x18")	1400.C
