Herb slicing machine/herb slicer machine / herbs slice cutting machine / herbs slice cutter machine / Herb slicer
Technical parameter:
Model |
SYHK-268 |
Power |
1000 w |
Voltage |
220V/50Hz |
Rotate speed of the motor |
1400r/m |
Rotate speed of the main axis |
200 r/min |
Cutting range |
0.3-3mm |
NW/GW |
60kg/70kg |
Dimension |
380*580*500mm |
Product Features:

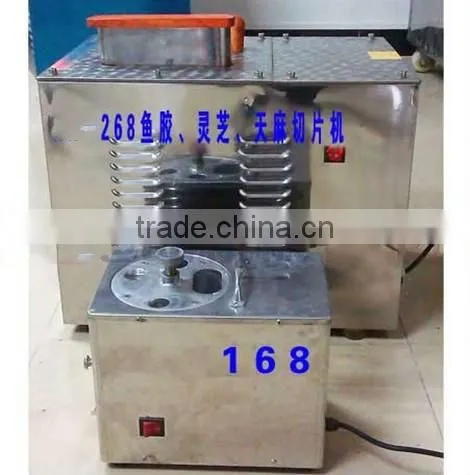

SYHK268 high efficiency herb slicing machine can cut the oblique slice , straight slice and horizontal slice , which are uniform thickness and fine shape .
here are four blades in the cutting plate , which can adjust the thickness at will . The machine has the advantages of small volume , easy to operate , beautiful slices , stable performance , long service life and so on . The machine is suitable for cutting the ginseng , pilose antler , root plants and other herbs . This machine is especial suitable for cutting the long horizontal slice , such as the ganoderma lucidum , isinglass ,gastrodia elata and others . and it also suitable for cutting the hard medicine such as the pilos antler

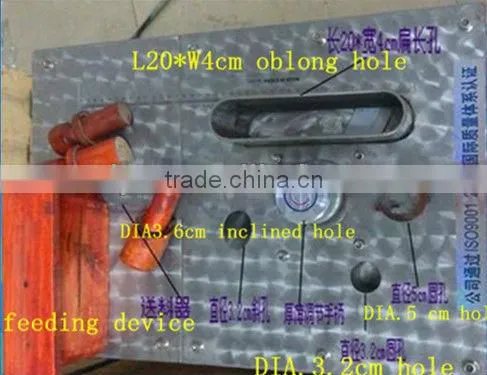

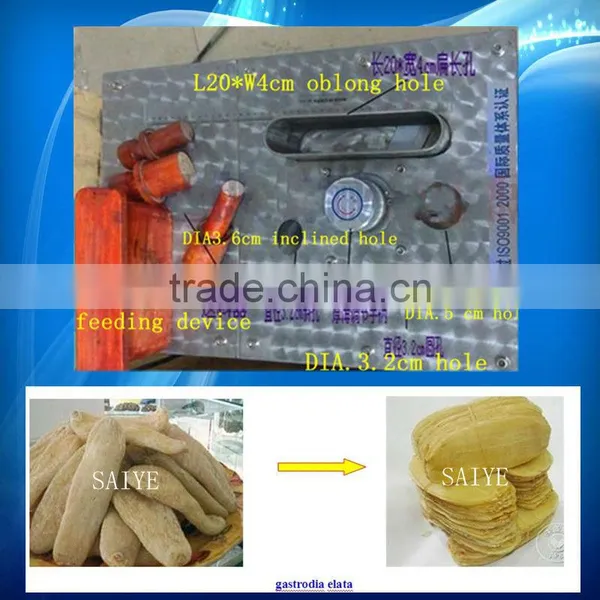

A. Four discharging mouth for isinglass and gastrodia elata slicing , the diameters are :
L20*W4cm oblong hole , DIA.5 cm hole , DIA.3.2cm hole , DIA3.6cm inclined hole
B .three discharge for Pilos Antler slicing , the diameter are :
DIA.8.3CM hole , DIA5cm hole , DIA3.6cm inclined hole
C. The three super-large discharge mouth , the diameters are :
L14.5*W4cm elliptical hole , DIA.5cm hole , DIA3.6cm inclined hole
Working principle :
This machine makes use of the cutting by the blades to make the raw material to become the slices . The machine consist of the rack , motor , blades , dial and the adjusting system . Putting the raw material in the importing mouth , the raw material are cut to the slices by the power of the
Rotated blades on the dial .
Cutting effect :
Application scope :
This machine is suitable for the pharmacy , scientific research department , hospitals , clinics, small type pharmaceutical factory and food industrial .
