Specifications
Panting vibrating screenpower: 0.37kw
rotate speed: 1400rad/min
dimension: 433*432*785mm

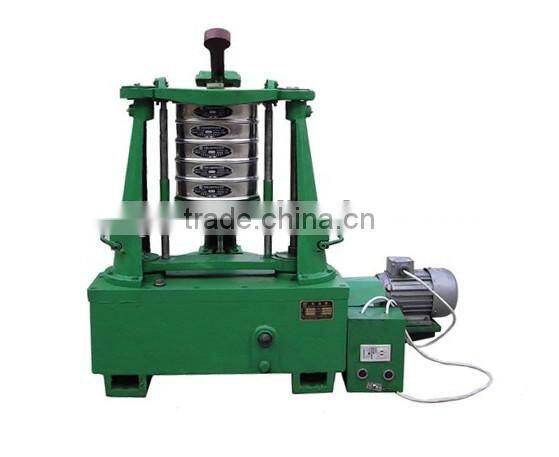

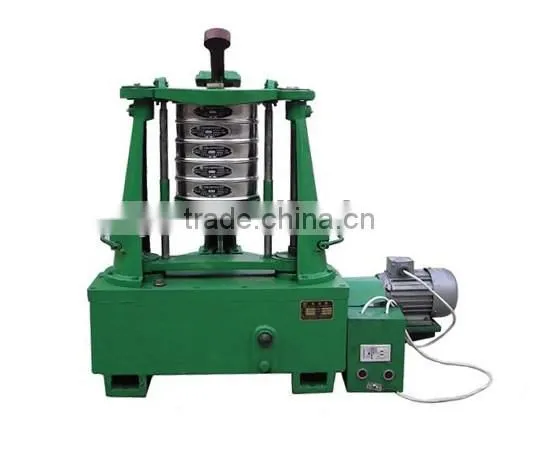

SYZD-26 Panting vibrating screen
Introductions:
Panting vibrating screen is one of the laboratory commonly used testing instrument, panting sieve is accord with national standard laboratory vibrating screen.Is mainly composed of base, screening and transmission mechanism parts.The panting sieve can be equipped with special fixture, 200 test sieve, then the clamping Φ can install again 75, 100 sets of screen, the clamping convenient and flexible, clamping, and can automatically stop.
It blows screen motor through the synchronous belt, driving gear to rotate the spindle, the spindle drive the eccentric wheel to drive the testing screen shakes, drives the plunger gear running at the same time, top hammer struck, slapping test sieve, makes the material of the sample test sieve, sieve sieve.
parameters:
rad |
200,100,75mm |
|||
Sieve level |
7tier |
|||
200 experimental sieve |
1set |
|||
number of revolution |
290±6Times/min |
|||
Repel and attack number of times |
156±3Times/min |
|||
Repel and attack highly |
38±6mm |
|||
|
Levelness of the base
|
≤0.6mm/min |
|||
|
Rotation distance
|
25mm |
|||
electromotor |
power |
0.37kw |
||
|
rotate speed
|
1400rad/min |
|||
dimension |
433×432×785mm |
|||
Sieve machine weight |
213kg |
|||
