Specifications
Knockout type sieve shakerturning speed: 221 RPM/min
Partial heart: 6 mm
The jar speed: 148 times/min

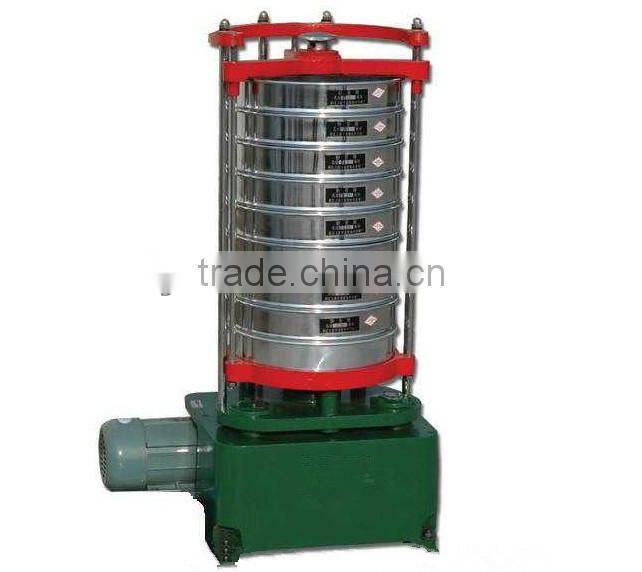

SYZD-22 Knockout type sieve shaker
Introduction:
It is a kind of as sophisticated screening test equipment.The machine have the double movement, rotation and jar can timing control screen time, the screening according to accurate, convenient operation and maintenance, and small volume, light weight, low noise, is coal, metallurgy, electric power, chemical and other industries laboratory for material particles grading screening ideal equipment.
It mainly have drive, swing, jar, clamping mechanism, electrical parts, etc.Motor through a shaft to pass power to worm, worm gear, and CAM mechanism, making its cooperate with eccentric rotary motion, produced by the rotation of screw rod up and down reciprocating movement produces vibration strike movement.Cover on the handle clockwise, make its clamping fixed on the bracket, counterclockwise rotation, fastening device to loosen, cover can move up and down according to the demand.
parameters:
Matched screen | 200 mm, sieve stack high 380 mm |
turning speed | 221 RPM/min |
Partial heart | 6 mm |
The jar speed | 148 times/min |
amplitude | 5 mm |
voltage | 380v |
power | 370w |
weight | 100kg |
