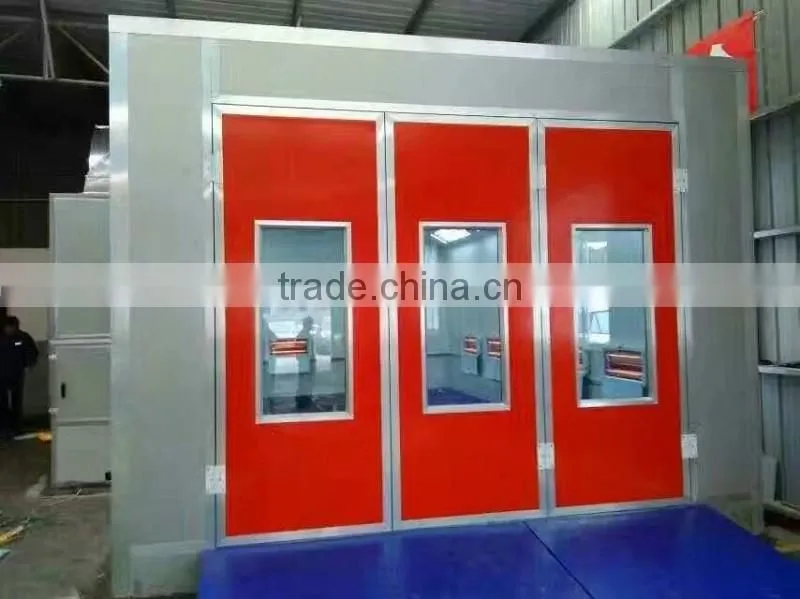

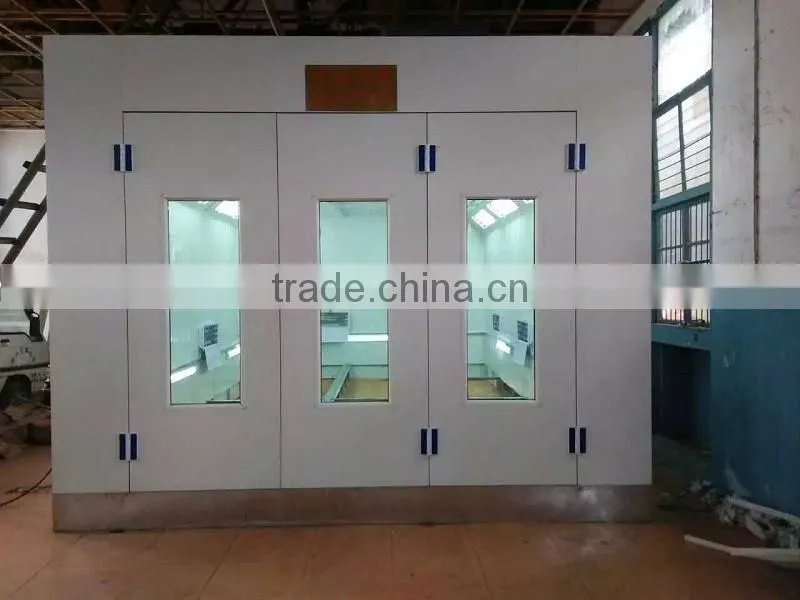

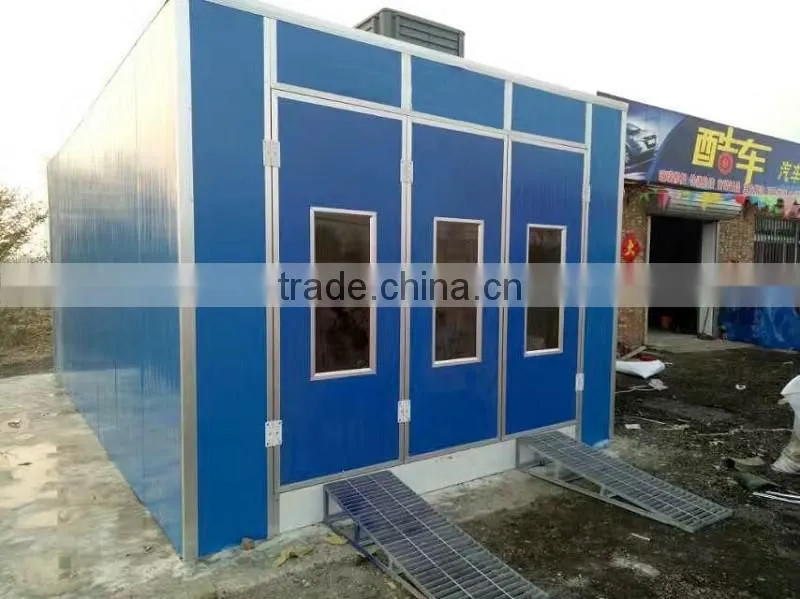

High Quality Car Paint Oven Cabin

We can design and produce kinds of spray boothes according to client requiremnts, so please tell me your requirements if you have different need.

The following is one of the normal model of our spray booth:

Inside Dimension	6900×3900×2700(mm)L×W×H
Outside Dimension	7000×5350×3400(mm)L×W×H
Main Door	3-folds, 2800×2500(mm)W×H
Personal Door	1 fold, 600×1800(mm)W×H
Wall Panels	EPS (epispastics polystyrene) colorful steel skin board, wall panel: 50 mm thick, 0.4 mm steel, tongue & groove style compound construction, Aluminum-alloy frame, anti-flame and heat-insulation, galvanized steel roof panel
Basement and Floor	Galvanized steel assemble, height is 300mm, complete grilles, 2 pcs of ramps, 1060×1750mm (W×L)
Lighting	Ceiling lights:8 units×3pcs×36w; Side lights: 8 units×2pcs×36w
Generator Setting Type	Side upper intake air, aluminium alloy frame, coated steel.
Intake Air Fan	2×4KW double-intake centrifugal fans, air capacity:24000m3/h
Extract Air Fan	1×5.5kw double-intake centrifugal fans, air capacity:18000m3/h
Heating System	RIELLO G20 oil burner, heating productivity: 200000 Kcal/h, stainless steel heat exchanger, with anti-explosion hole for protection, working temperature is 80ºC, electric damper from spraying to baking cycle.
Purification System	Dual filtering structure, the primary filter can capture granules larger than 10μm. Ceiling filter can capture granules bigger than 4μm. Its filtering rate reaches 98%. Air pressure balance gauge, TSP≤1.4mg/m3
Control System	Lighting switch, spraying, heat spraying, baking, temperature controller, time setting, emergency stop, temperature limit controller.
Environmental System	Fiberglass floor filter
Total Power	15KW
