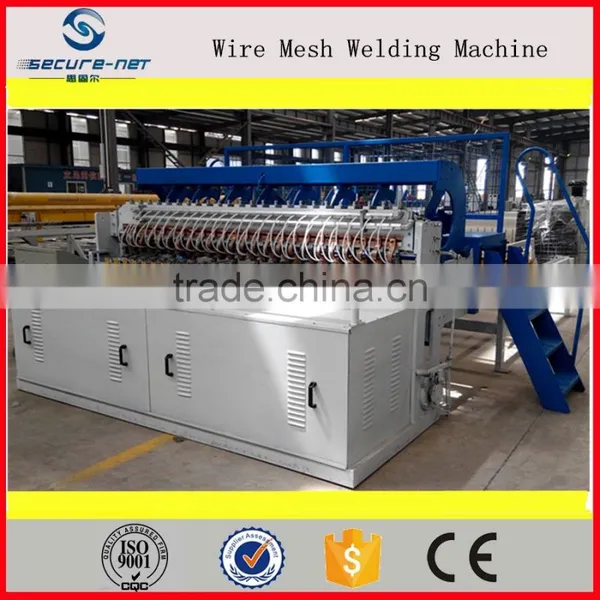

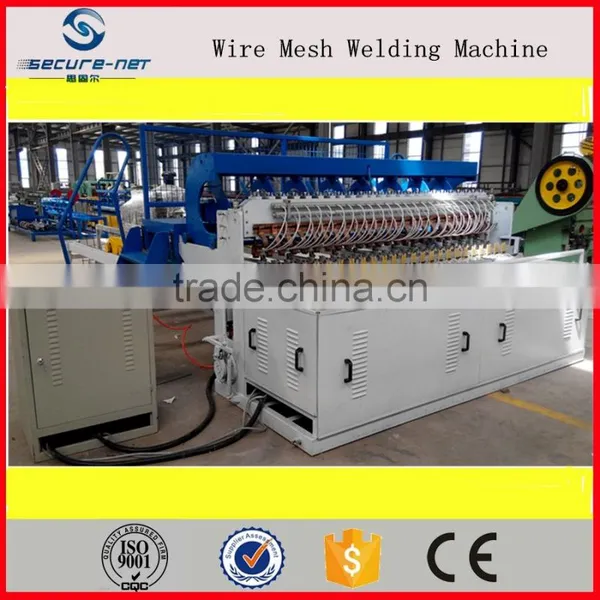

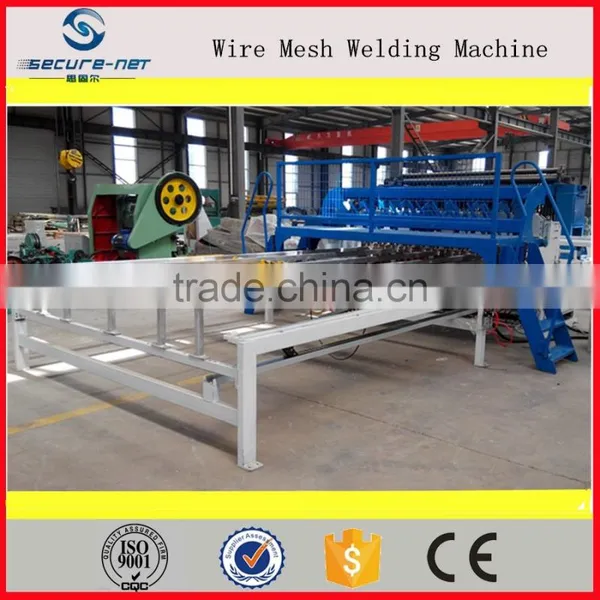

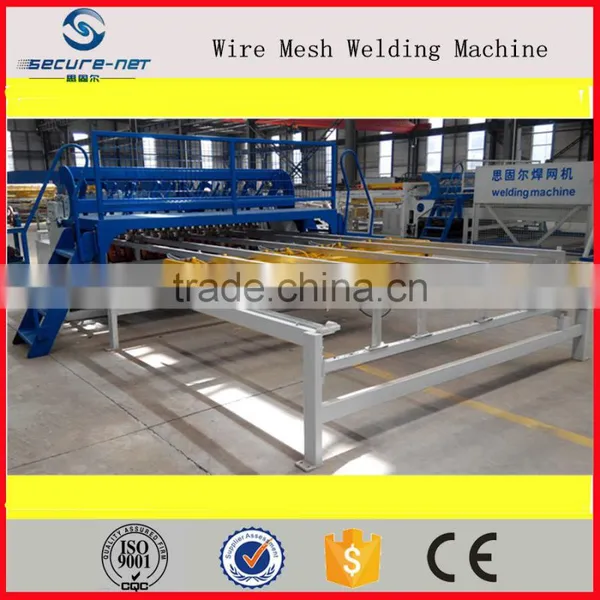

Factory direct sales steel grating welding machine
Why choose us:
1.Have professional machine design department
2.Have electronic Reserch&Development department
3.Have ISO9001:2008 certificate
4.Have professional debuggers
5.Have After-sales service team(24hours online)
Performance characteristics:
1. Steel grating welding machine adopts synchronous control technique. The cent-
control and welding time are composed of PLC program system.
2.The input front-panel is touch screen , the operate is more intelligent and reasonable.
3.The steel grating welding machine line wire and the cross wire are pre-straight and pre-cut.
4.Wire mesh panel be pulled by the step motor automaticly
5.Line wire feeding device save more welding time.
6.The steel grating welding machine cross wire feeding from the hopper automaticly
7.The transformer adopts water-cooling system and it can fall into eight diffrent grades,which
enlarge the range of wire diameter size.

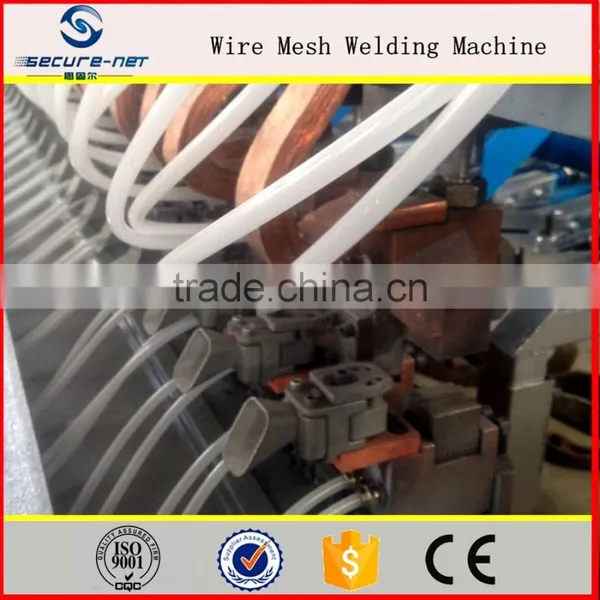

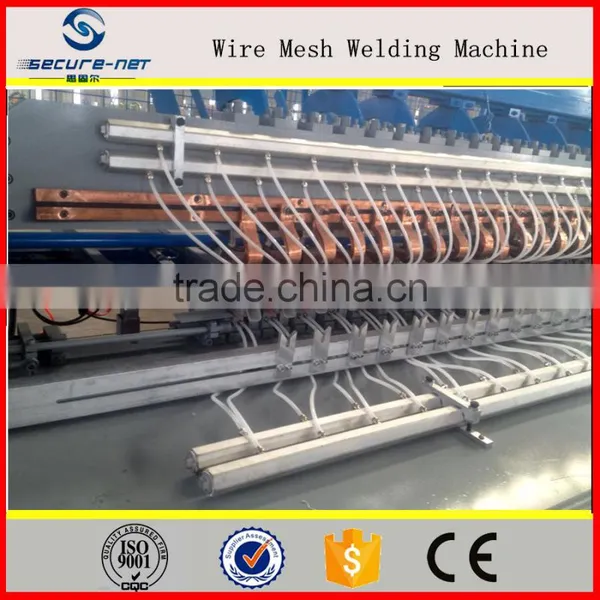

8.Steel grating welding machine welding electrodes is made of high quality chrome,zirconium spot firm and long service
lifetime,greatly reducing the production cost.
Main parameter:
| wire diameter | 5-12(mm) | rated voltage | AC380V50Hz |
| welding aperture | 100*100-300*300(mm) | rated power | 1820KVA |
| welding width | 2500(mm) | welding speed | 30times/min |
| number of electrodes | 26 | overall dimension | 20*3.6*2.5(m) |
Note:we also can produce other kinds of mesh welding machine,tell us your application.wire diamete,mesh size and net width.then we will make the machine according to your needs.
Application:

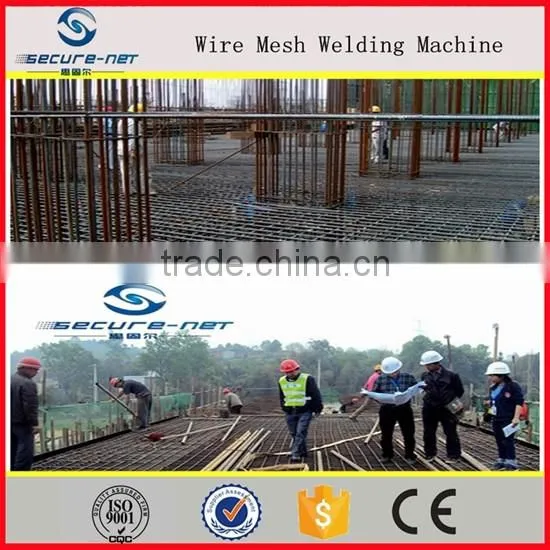

Steel grating welding machine can be used for producing high-level construction and bridge mesh ,high-way reinforce mesh,construction reinforce mesh,floor pouring mesh.
Auxiliary machine :
1.Wire straightening and cutting machine
2.Wire tray
1.The spare parts and control cabinet will be loaded in wooden box.
2.The main machine is nude packing or plastic packing.
3.Also can do as customer's request.
1.If the buyer need,we can send our technical staff to the buyers factory to install the machine and providing the training in 30 days after the machines arrived the destination pory
2.Maintenance period:One year for whole machine except vulnerable parts
3.The number of technical persons :one technician per machine
4.The fees:the buyer have to pay the technical salary 100 USD per day,and the round-trip tiket,accommodation and other related fees
During the maintenance period.if the parts are broken caused by the product problem.seller will offer the parts for free,if you need we assign the tachicians to your factory ,then you will pay some related fees.
Factory direct sales steel grating welding machine
1.We are professional wire mesh machine manufacture with 15 years experiences in china.
2.We are located in Anping ,The wire mesh base in China, with huge wire mesh industry support, All of our machines comply with international quality standards and customers' needs ,and are greatly appreciated in variety of markets all over the world.
2..Hebei Secure-Nett Fence Facility Co. ,Ltd .Established in2000. In 2002 the company passed the ISO9001 quality management system certification, the end of 2006 the company has made the right to export. main products:Poultry cage welding machine, construction mesh welding machine, Fence mesh welding machine, Reinforcing mesh welding machine,Steel grating welding machine and related accessories.
Pictures show:
Our office
Our factory
Main production
Certificate
Welcome to visit our office and factory .
If you have any problem ,let me know,will help you try my best.
