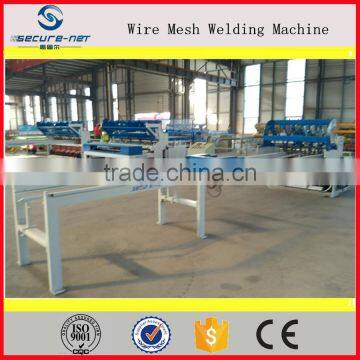

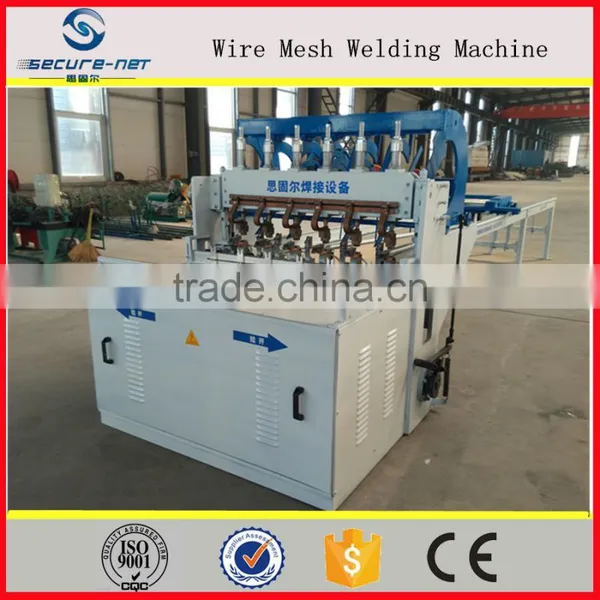

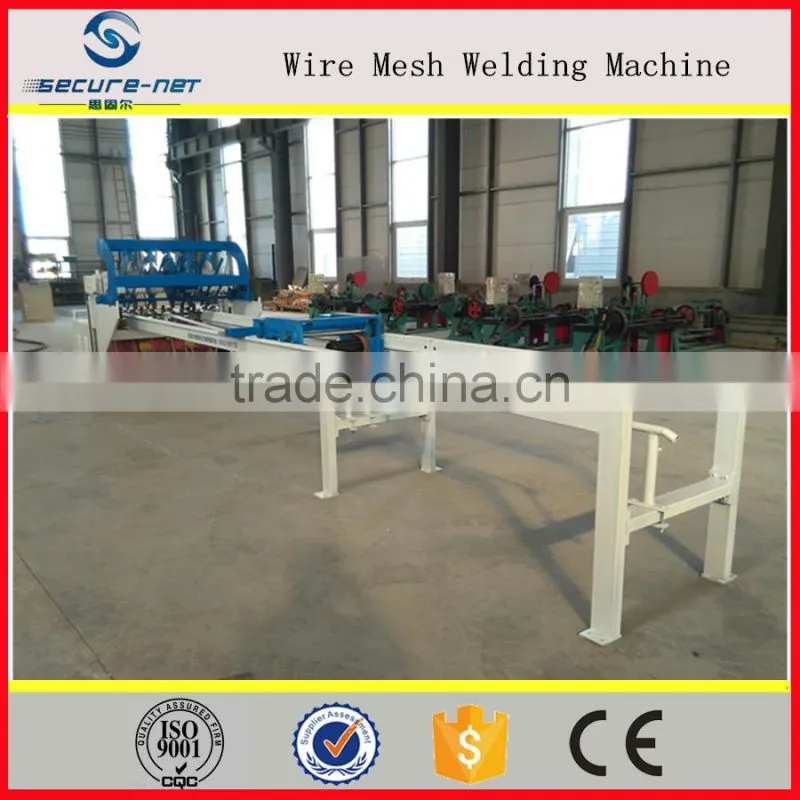

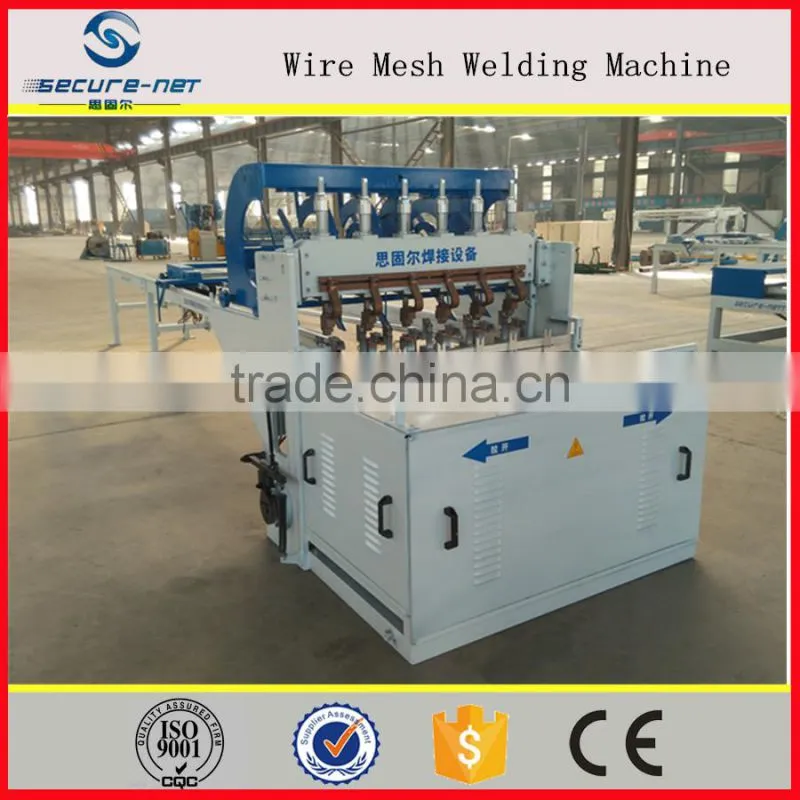

Factory Welding Machinery For Mesh In Panel/Hot Sale Steel Wire Mehs Welding Machine
Factory welding machinery for mesh in panel/
Hot sale steel wire mehs welding machine
1.The main parameter of the wire mesh welding machine
| Wire diameter | 5-8mm |
| Welding aperture | 100*100-300*300mm |
| Width of mesh | 1000mm(adjustable) |
| Number of electrodes | 6(adjustable) |
| Welding speed | 40times/min |
| Rated voltage | 380V 50HZ(customized) |
| Rated power | 300KVA |
| Machine weight | 2.0T |
| Overall dimension | 6*1.8*1.7m(customized) |
2.Product description of the wire mesh welding machine
(1) This equipment adopts synchronous control technology,separate-phase welding and welding time is composed of digital programming of PLC system .There are two kinds of tablet PC input panel,One kind is touch panel ,another is Keyboard .The operation is more intelligent and rationalization.
(2) The machine can press the panel tightly once , and weld by several times .On the same panel,this machine can weld 30 kinds of different size of meshs between weft and weft.That is the biggest advantages of this machine.
(3).The machine adopts new type of high efficient welding transformer ,greatly expand the scope of welding diameters.(This wire mesh welding machine has high degree of automation, the same time reduce a lot of manual operation).
(4)The mesh panel pulling part and the hopper is controled by the 16N stepper motor,and the steeper is working through the stepper motor drives.

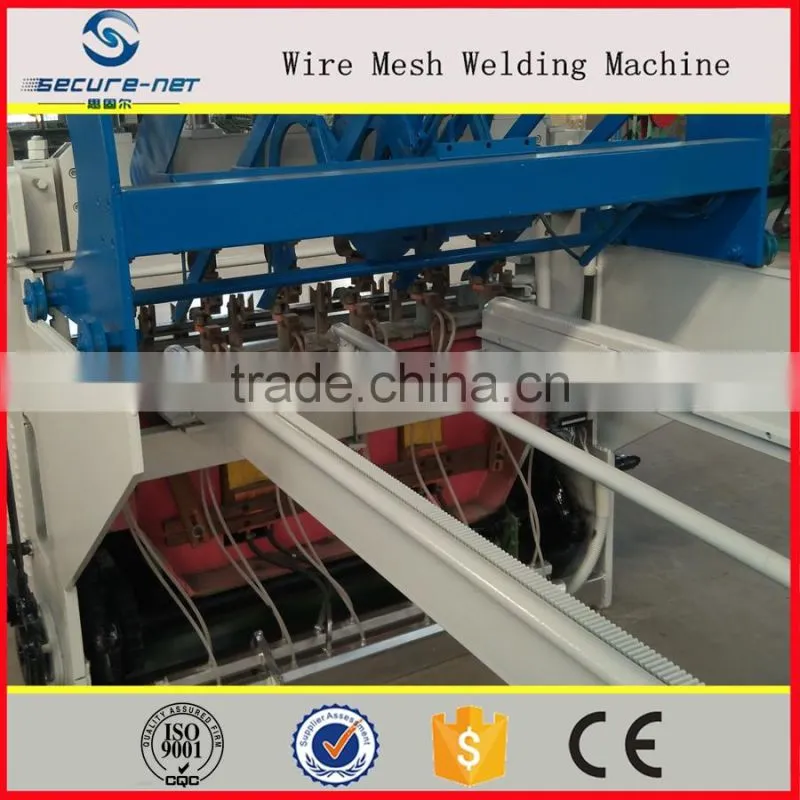

(5)Electrodes, the lower seat and copper platoon is copper material,and the electrode block is chromium zirconium copper material.
3. Auxiliary equipment of the wire mesh welding machine

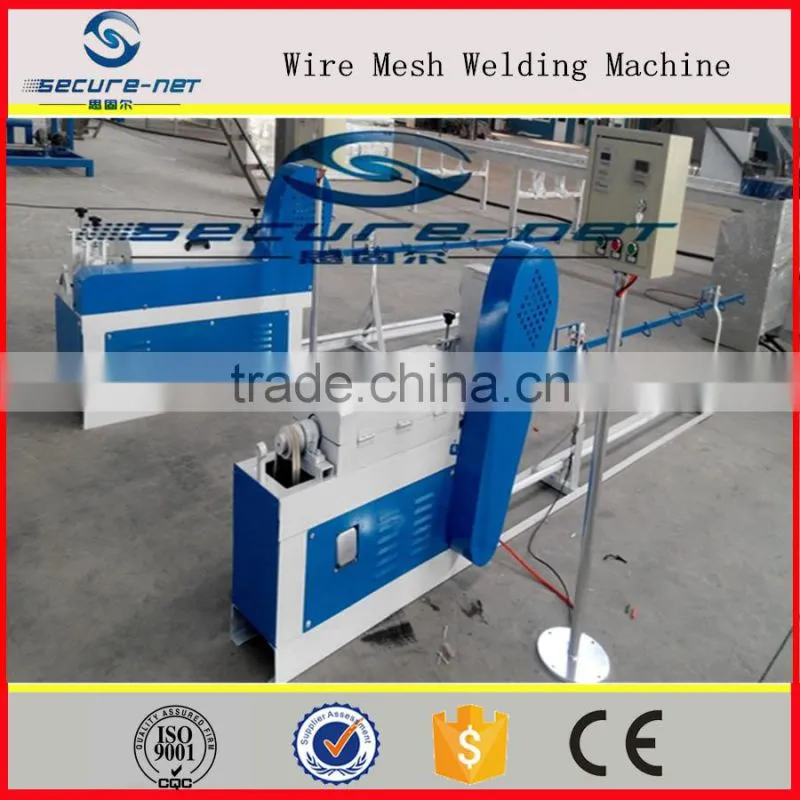

Wire Straightening cutting machine

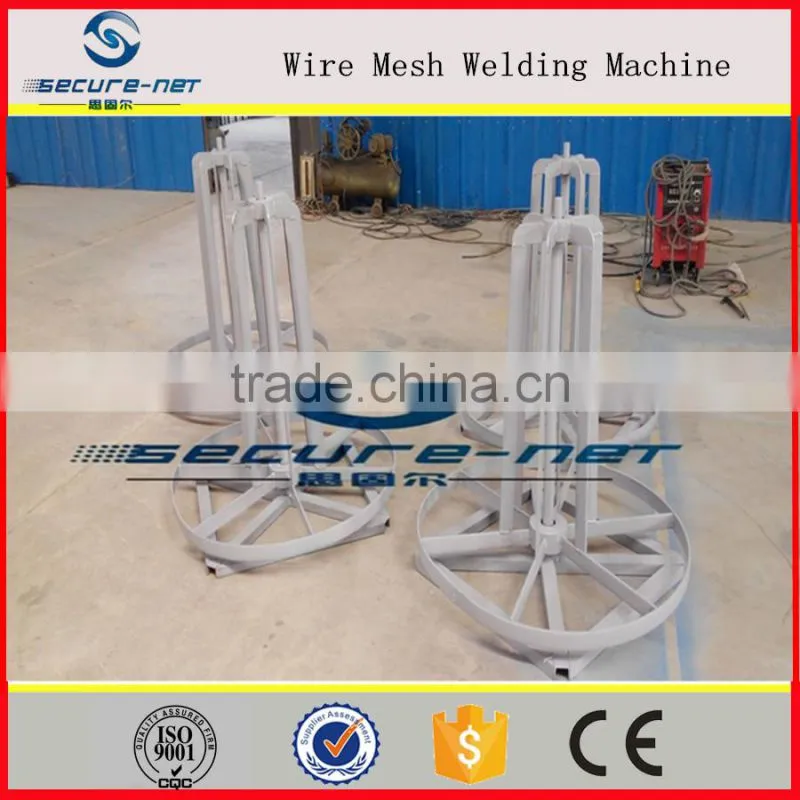

Wire feeding plate

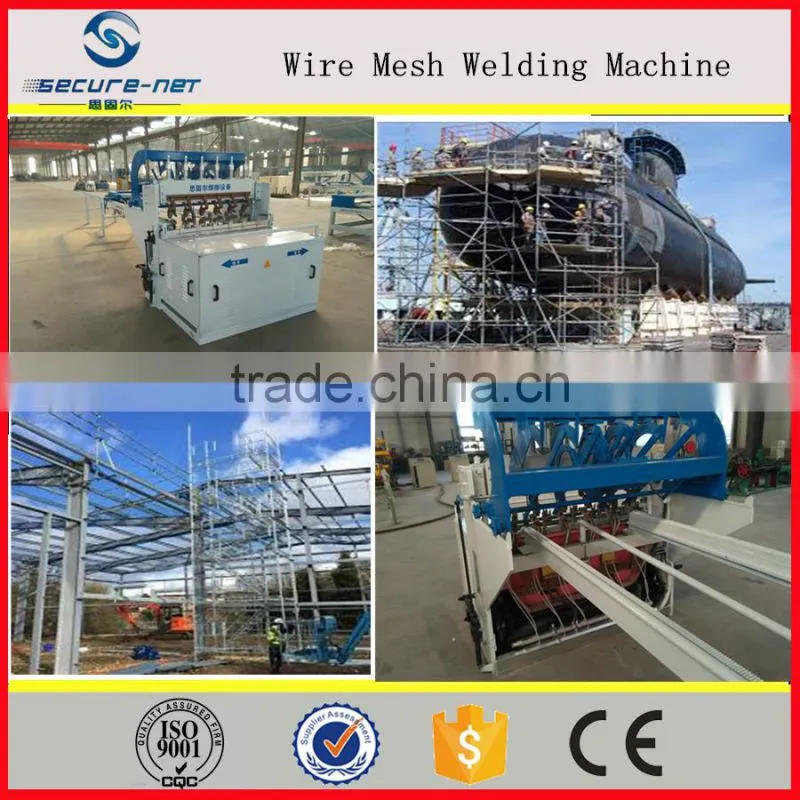

4.Application of the wire mesh welding machine:

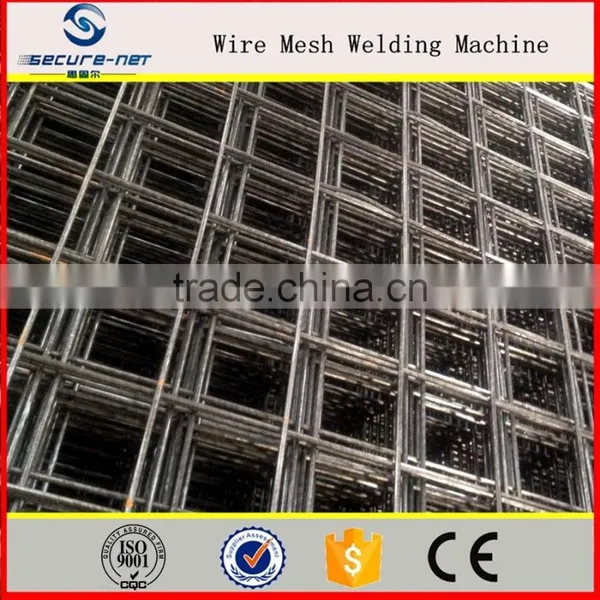

Wire mesh panel for fence and casing buling roof .
Host with plastic film packaging, numerical control cabinet packed in wooden cases .
Hebei Secure-Net Fence Facility Co., Ltd.
Hebei Secure-Net Fence Facility Co., Ltd., founded in 2000, is located in Anping and is famous as the production base of wire meshes in China.
Professional technical team, set wire welding equipment research and development, design, manufacturing, sales in one of professional manufacturers, through the world of quality detection are able to guarantee the quality of products and services.
Welcome to visit our factory at any time
