Welding Outer Wall Scaffolding Mesh Machine

Welding Outer Wall Scaffolding Mesh Machine photo-1
Welding Outer Wall Scaffolding Mesh Machine photo-2
Welding Outer Wall Scaffolding Mesh Machine photo-3

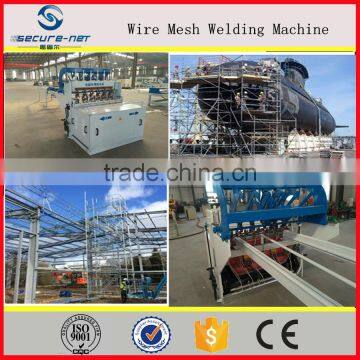

Welding Outer Wall Scaffolding Mesh Machine photo-4
US$ 10,000 - 250,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
SECURE-NET
Model Number:
GBP
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name SECURE-NET
Model Number GBP
Voltage 380V 50HZ(customized)
Current Changing
Rated Capacity 300KVA
Rated Duty Cycle 80%
Dimensions 6*1.8*1.7m(customized)
Weight 2.0T
Usage Welding
Certification ISO9001
After-sales Service Provided Overseas service center available
Product Description

   Welding outer wall scaffolding  mesh machine



1. Main Parameter

Wire diameter 5-8mm
Welding aperture 100*100-300*300mm
Width of mesh 1000mm(adjustable)
Number of electrodes 6(adjustable)
Welding speed 40times/min
Rated voltage 380V 50HZ(customized)
Rated power 300KVA
Machine weight

2.0T

Overall dimension 6*1.8*1.7m(customized)



2.Product description about the welding machine

(1).This equipment adopts synchronous control technology,separate-phase welding and welding time is composed of digital programming of PLC system .There  are two kinds of tablet PC input panel,One kind is touch panel ,another is Keyboard .The operation is more intelligent and rationalization.



(2).The machine can press the panel tightly once , and weld by several times .On the same panel,this machine can weld 30 kinds of different size of meshs between weft and weft.That is the biggest advantages of this machine.



(3).The machine adopts new type of high efficient welding transformer ,greatly expand the scope of welding diameters.(This  wire mesh welding machine has high degree of automation, the same time reduce a lot of manual operation).



(4).The mesh panel pulling part and the hopper is controled by the 16N stepper motor,and the steeper is working through the stepper motor drives.



(5).Electrodes, the lower seat and copper platoon is copper material,and the electrode block is chromium zirconium copper material.

3. Auxiliary equipment



Wire Straightening cutting machine

Wire feeding plate

 4.Application

Wire mesh panel for fence and casing buling roof .

Welding outer wall scaffolding mesh machine



Packaging & Shipping



Host with plastic film packaging, numerical control cabinet packed in wooden cases .



 Welding outer wall scaffolding mesh machine

company profile:

      Hebei Secure-Nett Fence Facility Co.,Ltd.

1.Hebei Secure-Nett Fence Facility Co.,Ltd.founded in 2000,is located in Anping,famous as production base of wire mesh in China.

2.Now Secure-net has developed into an integrated entity with R&D,manufacturing and traing.

3.Main products of Secure-net are welding wire mesh machine,welded wire mesh machine,chain link fence machine,chain link fence machine,barbed wire machine,ect.

Welding outer wall scaffolding mesh machine Welding outer wall scaffolding mesh machine



      Welcome to visit our factory at any time
               Welding outer wall scaffolding mesh machine
