Product Details
Place of Origin: | Hebei, China | Brand Name: | SECURE-NET | Model Number: | JXLW |
After-sales Service Provided: | Overseas service center available |
Product Description
2016 NEW Factory Machanical Steel
Wire Mesh Welding Machine
Product Description:
1.This machine adopts electrical synchronous control technique both separate-phase welding and welding time is composed of digital and integrated electric circuit.This operation is accurate,it is stable,firm welded spot is firm and without weled tracks.
2.Cross wires is pre-straight and pre-cut wire.
3.Line wire are fed from coils.
4..Elastic tension link pushing system,the mesh hole and mesh aperture can adjust randomly.
5.This operation is accurate, it has stable function, firm welded point and without welded tracks, not only welding speed is fast but also it is easy to to learn and operate.

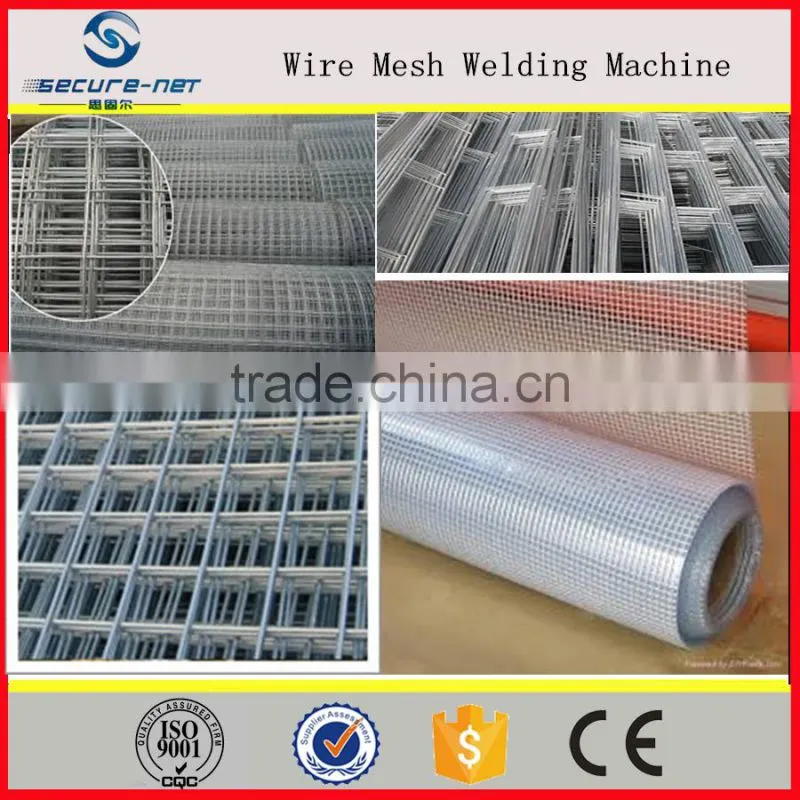

6.The finished product can be in coil or in panel.
The main parameter
Wire diameter | 2.5-5mm |
Welding aperture | 50*50-200*200mm |
Width of mesh | 2500mm |
Number of electrodes | 48 |
Rated power | 800KVA |
Reted voltage | AC380V 50HZ |
Welding speed | 45times/min |
Machine weight | 1.5T |
Overall dimension | 2.8*3.2*1.8m |
Our Services
1 .Maintenance period:one year
2.If the buyers need, we can send our technical staff to the buyers’ place to
debug the machine and providing the training in 30 days after the machines
arrive at the destination port.
3.The commissioning fees: free
4.The training fees: USD100/day for each technical
5.The numbers of technical persons: one technical person per machines at most
6.The fees ,such as round-trip tickets, accomodation etc, are all in buyers’
account. During the maintenance period: the parts damaged non-artificially
will be provided free of charge. If you need the technicians, we will
assign the expertised staff to your company. And the fees,such as round-trip
tickets, accomodation etc, are all in your account.
company profile:
Hebei Secure-Net Fence Facility Co., Ltd.
Hebei Secure-net Fence Facility Co.,Ltd was founded in 2000,
specializing in the production welding net machine 16 years,
we can according to your requirements to make to order
various welding net machine, looking forward to cooperating with you
Welcome to visit our factory at any time
