Automatic stainless steel welded wire mesh machine
- 30 Set / Sets per Month
- Port of Tianjin Xing
- T/T D/P D/A Credit Card PayPal
- Spot welder welding machine vertical Point Welded Wire Mesh Machine
- Mechanical hanging wire automatic net out and net down mesh welding machine for steel mesh
- Construction Welding Machine Welding Machine Automatic fence Mesh welding machine
- Various models of fully automatic pet cage exchange platform welding machine
- 3d wire mesh fence machine 3d metal fence panels machine for sale
- contact emails @automatic steel wire mesh welding machine for construction
Product Details
Condition: | New | Place of Origin: | Hebei, China | Brand Name: | SECURE-NETT |
Model Number: | SG-DHW | Usage: | mesh | Voltage: | 380V |
Current: | Alternating Current | Rated Duty Cycle: | 50% | Rated Capacity: | 85KVA*6 |
Dimensions: | 3.0*1.75*1.65M | Weight: | 4T | Certification: | ISO9001 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Automatic stainless steel welded wire mesh machine
1.Both longitude wire and cross wire can be feeded from wire coils automatically.
2.The raw material is applicable for low carbon steel wire or stainless steel wire .
3.It has advantage such as design reasonable,low noise,more stable,easy operation
and electromagnetism adjustable speed for welding.
4.The mesh size is precise and the machine can be set the width and length according to customer’s requirement .
5.The production line consists of main welding machine ,electrical control cabinet,
reparing table ,repairing machine,bracket for longitude wires,bobbin machine and bobbins.
Main parameter
Model Series | Size of mesh (mm) | Width (mm) | Diameter of wire (mm) | Biggest rolled net size (m) | Welding speed (mesh/minute) | Power | Outside size measurement (mm) |
J-DHW4 | 6.35-12.7 (1/4"-1/2") | 914.4-1219.2(12"-48") | dia.0.45-dia.1.07 (BWG25-BWG19) | 120m (400') | 75 (radia) | 380/220V | 2350 x 1820 x 1700 |
J-DHW6 | 6.35-12.7 (1/4"-1/2") | 1219.2-1828.8(48"-60") | dia.0.74-dia.1.07 (BWG22-BWG19) | 120m (400') | 48 (radia) | 380/220V | 3050 x 1900 x 1750 |
L-DHW4 | 12.7-101.6 (1/2"-4") | 914.4-1219.2(12"-48") | dia.0.63-dia.2 (BWG25-BWG19) | 120m (400') | 65 (radia) | 380/220V | 2600 x 1700 x 1350 |
L-DHW6 | 25.4-152.4 (1"-6") | 1219.2 1524 1828.8(48" 60" 72") | dia.1.07-dia.2 (BWG19-BWG14) | 91.4m (300') | 45 (radia) | 380/220V | 3350 x 1800 x 1400 |
Main Machine

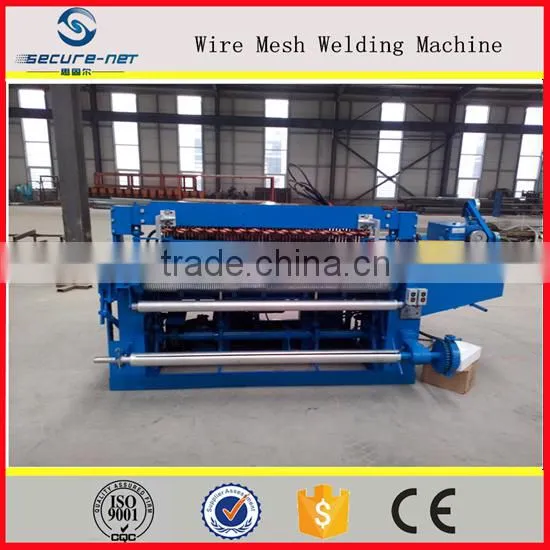

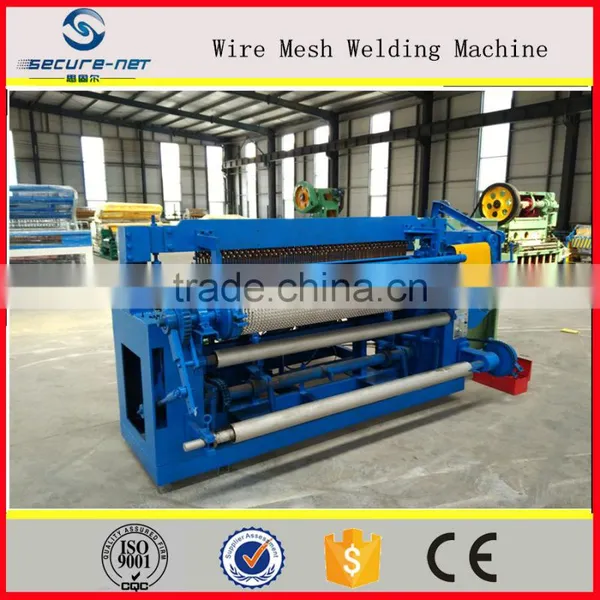

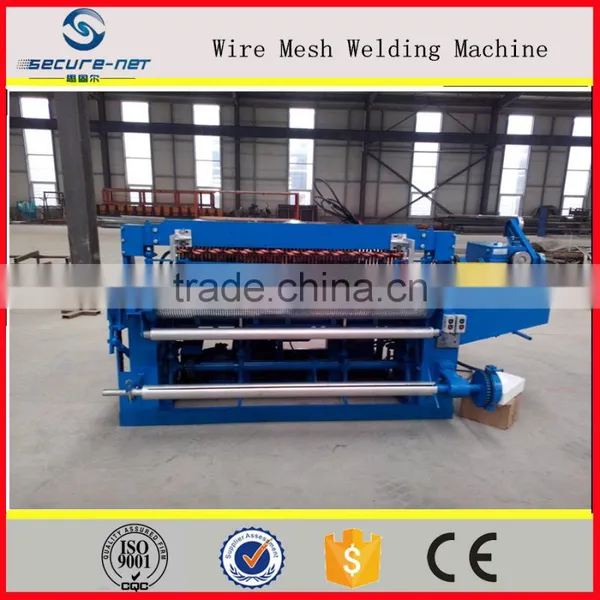

Automatic stainless steel welded wire mesh machine

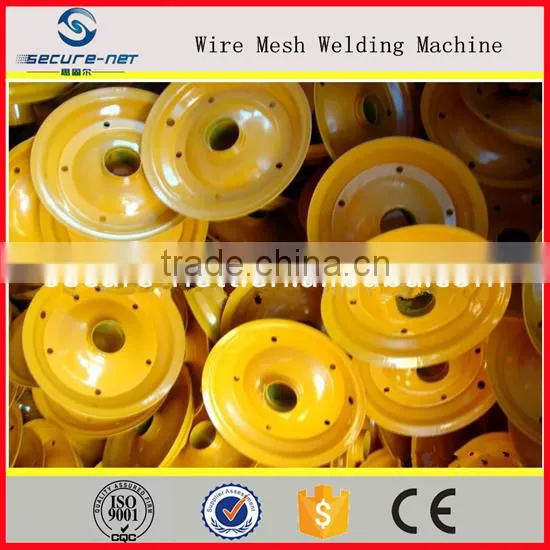

Bobbin Machine(wire diameter <1.4mm)

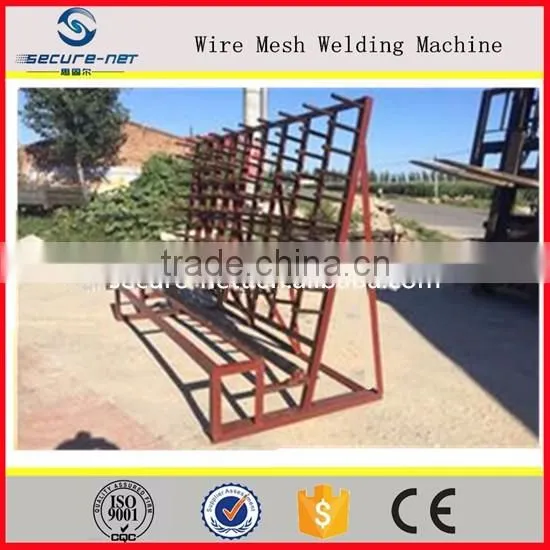

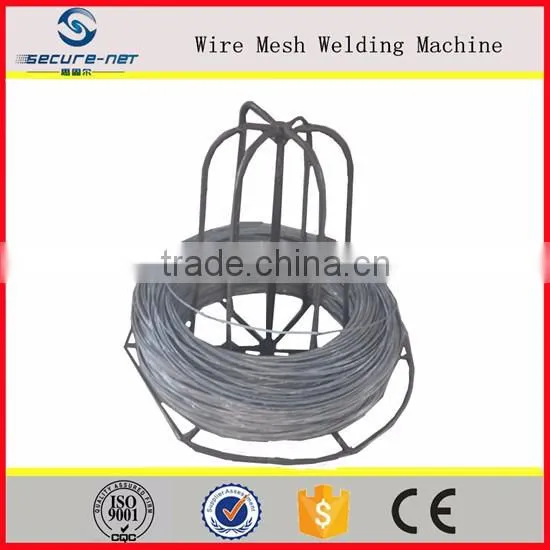

Wire pay-off stand (wire diameter ≥1.4mm)
Accessory Machine

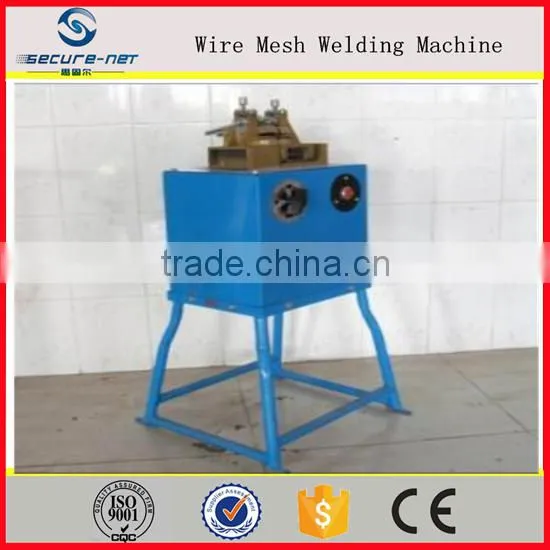

Butt Welder

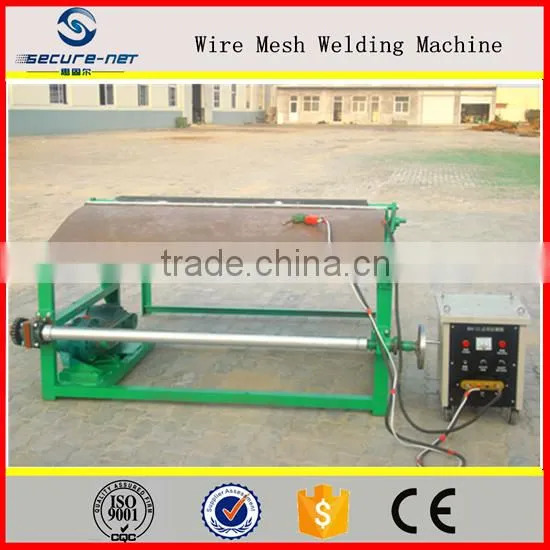

Mesh Mending Table
Finished products
Automatic stainless steel welded wire mesh machine
1.We are professional wire mesh machine manufacture with 15years experiences in china
2.We are located in Anping ,The wire mesh base in China, with huge wire mesh industry support, All of our machines comply with international quality standards and customers' needs ,and are greatly appreciated in variety of markets all over the world.
2..Hebei Secure-Nett Fence Facility Co. ,Ltd .Established in2000. In 2002 the company passed the ISO9001 quality management system certification, the end of 2006 the company has made the right to export. main products:Poultry cage welding machine, construction mesh welding machine, Fence mesh welding machine, Reinforcing mesh welding machine ,stainless stell wire mesh machine and related accessories.
Pictures show:
Our office
Our factory
Main production
Certificate
Welcome to visit our office and factory .
If you have any problem ,let me know,will help you try my best.
