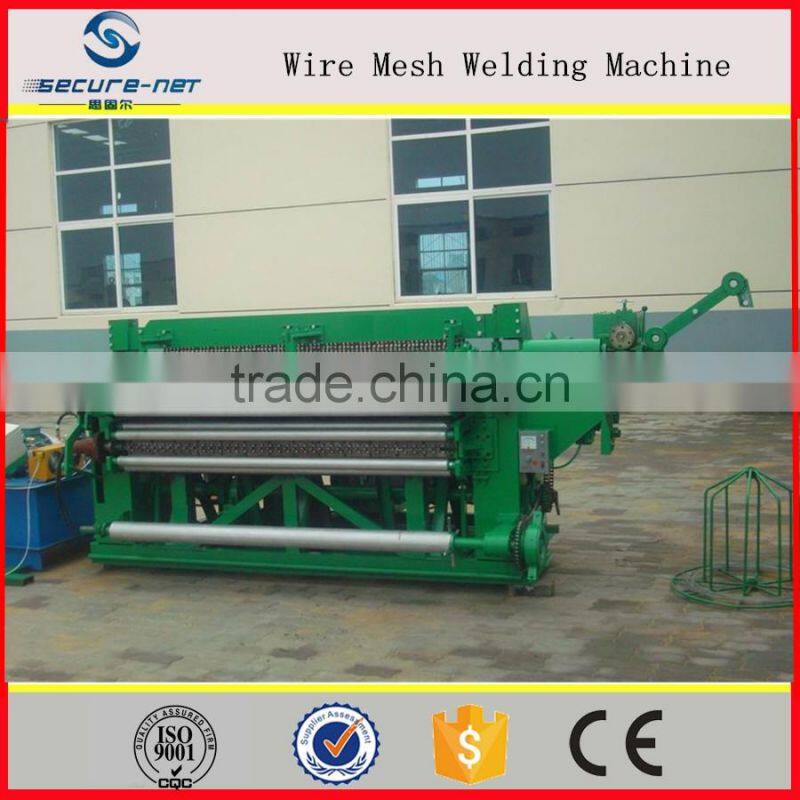

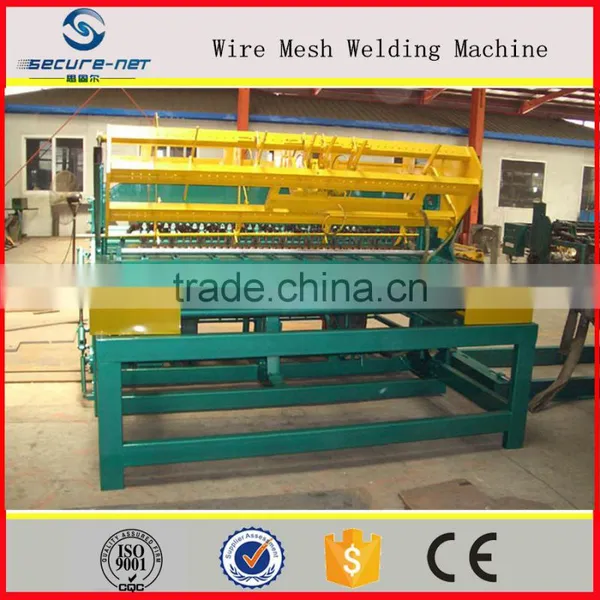

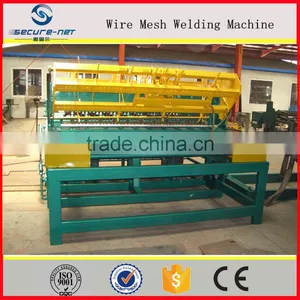

SECURE-NET automatic welded roll
wire mesh machine
Description of the welded wire mesh machine:
Welded wire mesh machine host, terrific, electric control cabinet, mending the nets machine, mending the nets and Taiwan and playing machine composition, weft wire and wire diameter are from the feed.Raw material is low carbon steel wire and stainless steel wire. The machine is designed with advanced and reasonable design, low noise, good stability, easy to operate and electromagnetic speed control.
The mesh is accurate, the width of the welded wire mesh machine
The main parameter of the welded wire mesh machine:
| Net width |
914.4mm; 1000mm |
1219mm;1524mm (4feet;5feet) |
1219mm;1524mm (4feet;5feet) |
1919.2mm;1524mm;1828.8mm;2133.6mm |
| mesh | 6.35-12.7mm(1/4"-1/2") | 19.05mm(3/4") | 12.7-1.106mm(1/2"-4") | 25.4-101.6mm(1"-4") |
| wire diameter | 0.4-0.65mm | 0.6-1.4mm | 0.6-1.8mm | 1.2-2.5mm |
| Voltage | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ |
| power of motor | 2.2KW | 2.2KW | 2.2KW | 4.0KW |
| welding speed | 75times/min | 120times/min | 120times/min | 80times/min |
| external dimensions | 2.3*1.3*1.4m | 3.0*1.75*1.65m |
2.0*1.50*1.6m 3.0*1.75*1.65m |
2.0*1.50*1.6m 3.0*1.75*1.65m |
| weight | 1.5T | 2.5T | 2.0T;2.5T | 2.0T;2.5T;3.0T;3.5T |
| Transformer power | 50KVA*3 | 65KVA*5 | 65KVA*4/65KVA*5 | 65KVA*4/65KVA*5 |
Applicable of the welded wire mesh machine:
The machine can be used to screen, corn, animal cage net, breeding net, net garden, building net
Our Services
1 .Maintenance period:one year
2.If the buyers need, we can send our technical staff to the buyers’ place to
debug the machine and providing the training in 30 days after the machines
arrive at the destination port.
3.The commissioning fees: free
4.The training fees: USD100/day for each technical
5.The numbers of technical persons: one technical person per machines at most
6.The fees ,such as round-trip tickets, accomodation etc, are all in buyers’
account. During the maintenance period: the parts damaged non-artificially
will be provided free of charge. If you need the technicians, we will
assign the expertised staff to your company. And the fees,such as round-trip
tickets, accomodation etc, are all in your account.
Hebei Secure-Net Fence Facility Co., Ltd.
Hebei Secure-Nett Fence Facility Co.,Ltd.founded in 2000,is located in Anping,famous as production base of wire mesh in China.
Now Secure-net has developed into an integrated entity with R&D,manufacturing and trading.
Main products of Secure-net are welding wire mesh machine,welded wire mesh machine,expanded metal mesh machine,barbed wire machine,chain link fence machine,gabion mesh machine,ect.
Saleman: Gail Shi
Tel:86-18031855078
Fax:86-031185245076
Wechat:18832128285
Whatsapp:+18832128285
