expanded metal mesh making machine
- 7 Set / Sets per Month
- Port of Tianjin Xing
- T/T L/C D/P D/A Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- DOING supply photovoltaic solar panels recycling machine
- four-axis welding machine for commercial sink panel and bowl
- Double Platform Stainless Steel Kitchen Equipment Polishing Machine
- Photovoltaic solar panels recycling plant
- Solar panel recycling machine with high efficiency
Product Details
Place of Origin: | Hebei, China | Brand Name: | SECURE-NETT | Model Number: | SG-GBW |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

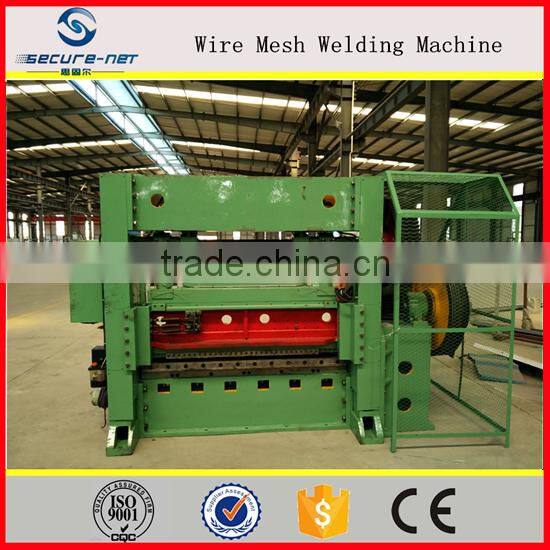

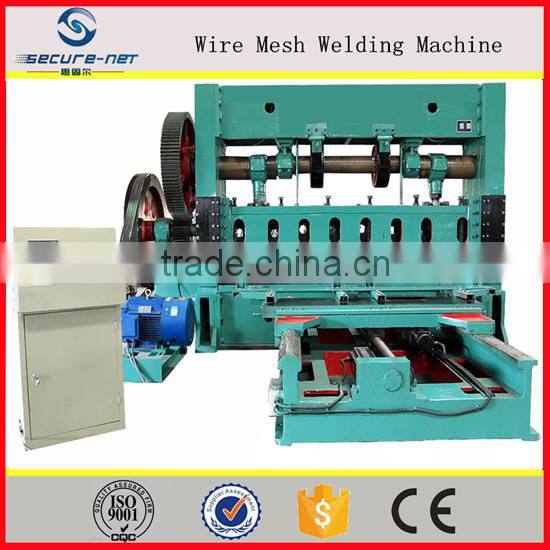

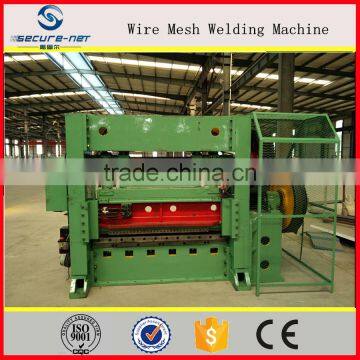

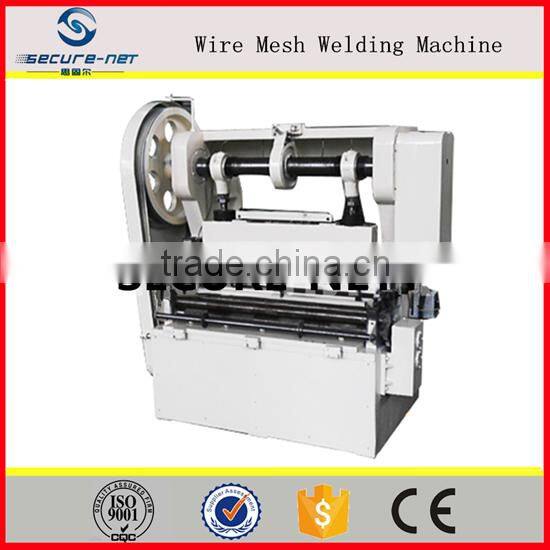

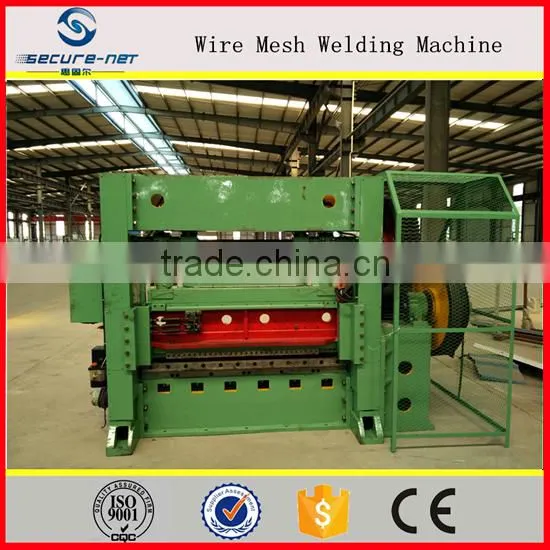

expanded metal mesh making machine
Introduction about machine
This machine adopts the mature technologies of the past as well as new technologies such as: full-automatic lubricating, NC stepping motor feeding, etc. It has good effect, controllability,stability and safety has been greatly increased. It has reasonable structure, elegant appearance. It is environmental production and energy saving. It is suitable for the material as low carbon steel sheet, aluminium sheet, stainless steel sheet, aluminium magnesium alloysheet, copper sheet, Nickel sheet.
Finished product usage

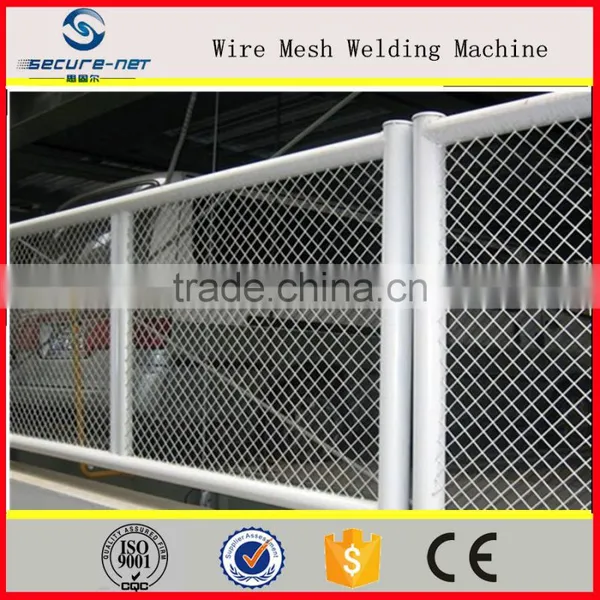

Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships
Technical parameters
Model | Material thickness | Material max width | Mesh size of LW | Distance of feed | Stroke per min | Motor | Net weight | Overal dimensions |
JQ25-6.3A | Max1.0mm | 500mm | Max20mm | 0-1.5mm | 190times/min | 2.2KW | 1.0T | 1090x710 |
JQ25-6.3B | Max0.5mm | 500mm | Max20mm | 0-1.6mm | 200-400times/min | 2.2KW | 0.86T | 1050x710 |
JQ25-16 | Max 1.0mm | 1000mm | Max 25mm | 0 -1.2mm | 150times/min | 3.0kw | 2.0T | 1800x1320x 1550mm |
JQ-25 -16A | Max 1.0mm | 1000mm | Max 25mm | 0 -1.2mm | 300times/min | 5.5kw | 2.05T | 1470x850x 1630mm |
JQ25-25 | Max 1.5mm | 1250mm | Max 30mm | 0 -1.2mm | 150times/min | 4kw | 3.0T | 1940x1600x 2010MM |
JQ25-40 | Max 2.0mm | 1500mm | Max 80mm | 0-3.2mm | 120/min | 11kw | 6.0T | 2870*990*2140 |
JQ25-63 | Max 3.0mm | 2000mm | Max 150mm | 0 -4mm | 45times/min | 15kw | 10T | 3600x2500x3000 |
JQ25-100 | Max6.0mm | 2000mm | Max200mm | 0-4mm | 60times/min | 22kw | 12T | 3600x2500x3000mm |
JQ25-160 | Max8.0 | 2000mm | Max200mm | 0-7mm | 45times/min | 30KW | 22T | 3280*3620 |
Pictures

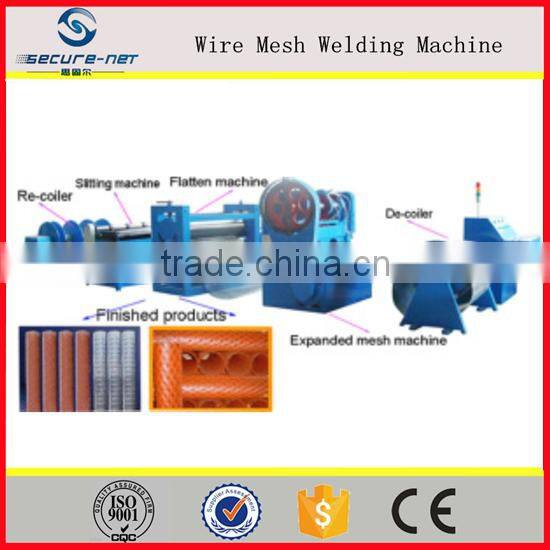

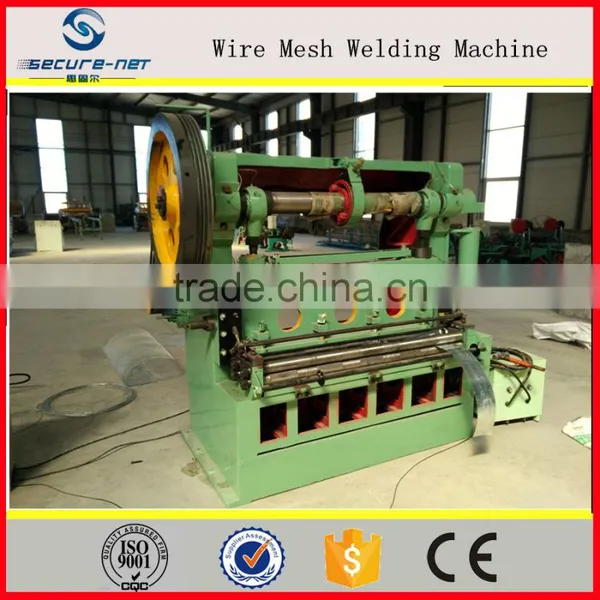

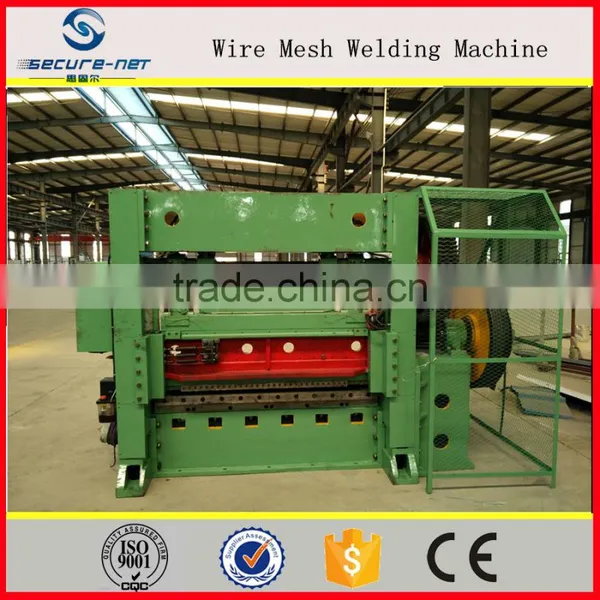

- Producing line

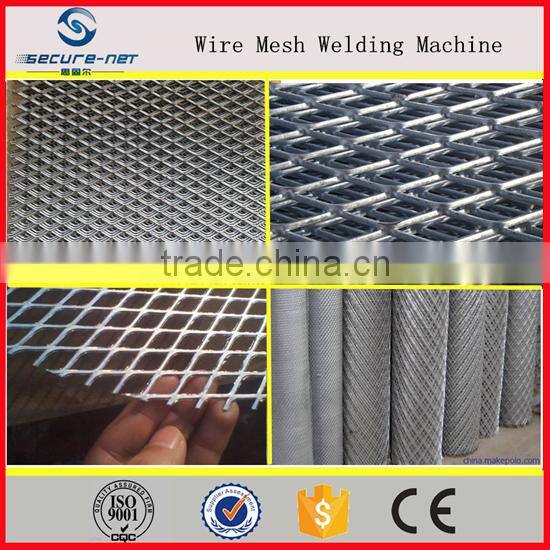

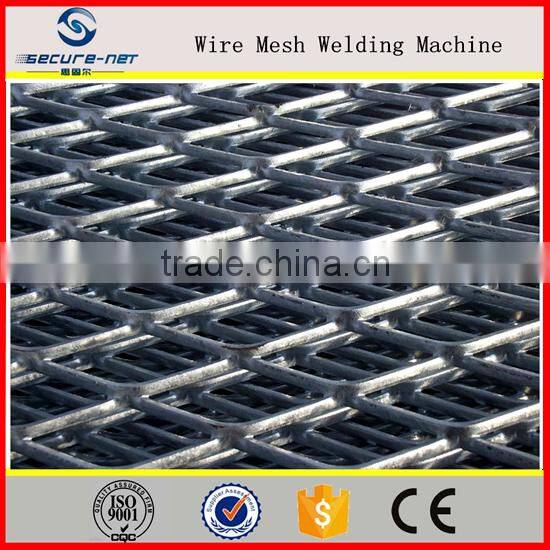

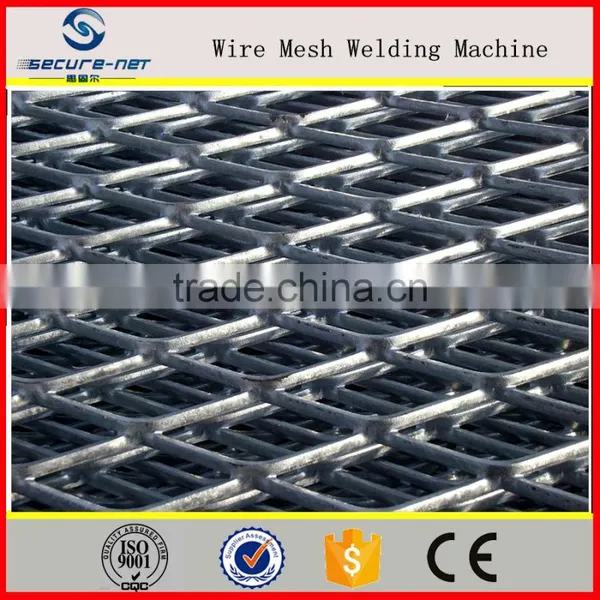

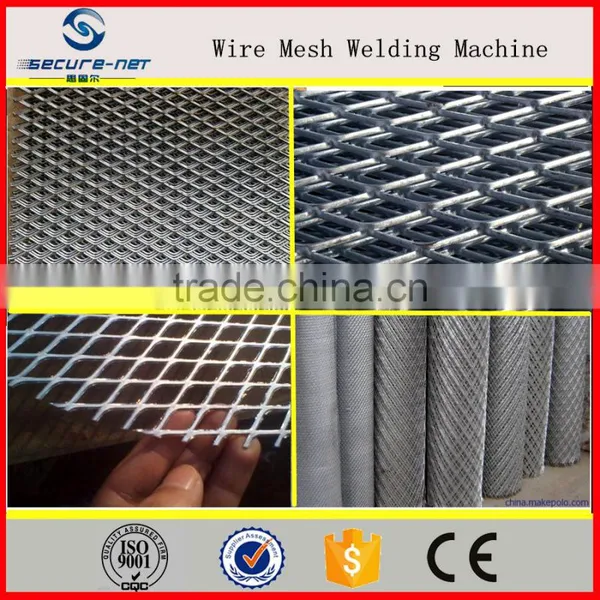

- Finished mesh
If you are interested in our products,fell free to contact us.
Let's discuss about it.
