Automatically Expanded Metal Welded Wire Mesh Machine Factory

           Automatically expanded metal

        welded wire mesh machine factory

Tchnique parameter
Type                           JQ25-6.3                    JQ25-16               JO25-25                   JQ25-40               JQ25-63               JQ25-100
material thickness(mm) max1.0                     max1.0                  max1.5                      max2.5                 max4.0                 max6.0
net width(mm)               max600                    max1000               max1250                   max1500               max2000             max2500
punching times/min       180                           290                       160                           100                       85                        65
feedind distance(mm)   0-10                          0-10                       0-10                          0-10                     0-20                     0-20
length of mesh(mm)      max20                       max25                   max30                       max80                  max200               max200
motor power(kw)           2.2                            3.0                         4.0                            11.0                     11.0                     15.0
weight(t)                        0.95                          2                            3                                6                         10                        12

oeveral diamension(mm) 950*570*1780   1800*1320*1550   1940*1600*2010    2870*990*2140   2400*3500*2300  3600*2500*3000

The advantages of expanded metal machine designed and by our factory includes:

1 Advantages:This machine adopts the mature technologies of the past as well as new technologies such as:fully-automatic lubricating,NCstepping motor feedind,etc:it has good effect;controllability,stability,stability and safty has been greatly increased;it has reasonable structure,elegant appearance,it is environmental production and energy saving.
2 It is suitable for the material as low carbon steel,aluminium sheet,stainless steel sheet,aluminium magnesiumalloy sheet,copper sheet,Nickel sheet.
3 Finished product usage:usage with concrete in buildings and construction,maintenance of equipments,making of arts and crafts,covering screen for first class sound case.Also fencing for super highway ,studio,highway.Hiahway expanded metal can be used as step msh of oil tanks,working plattform,corridor and walking road for heavy model equipment,boiler,petroleum and mine well,automobile vehicle vehicles,big ships.

Production of the mesh

Our  honor

Detailed Images

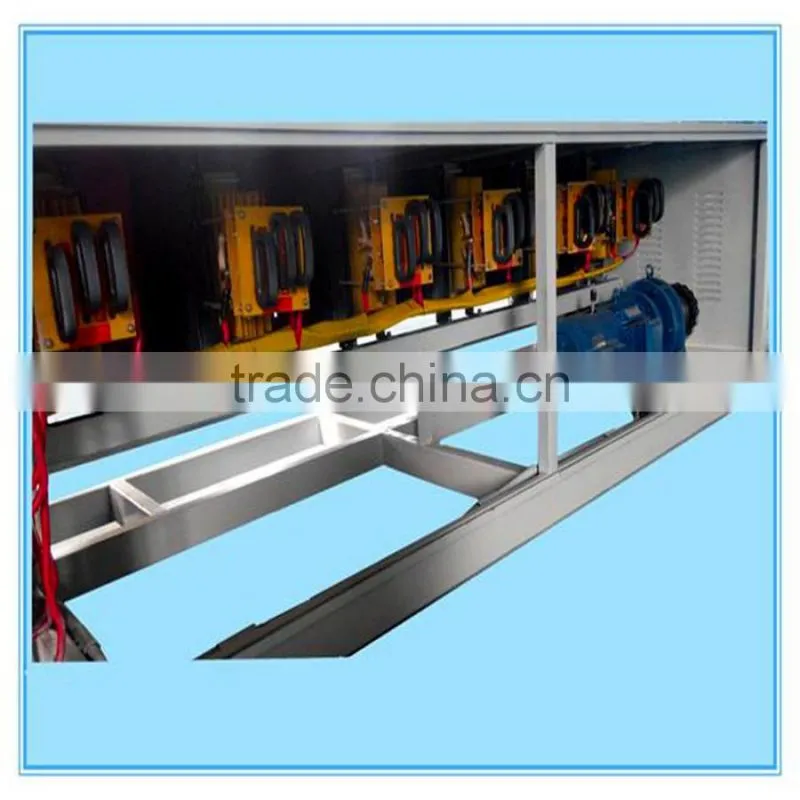

transformer

inverter

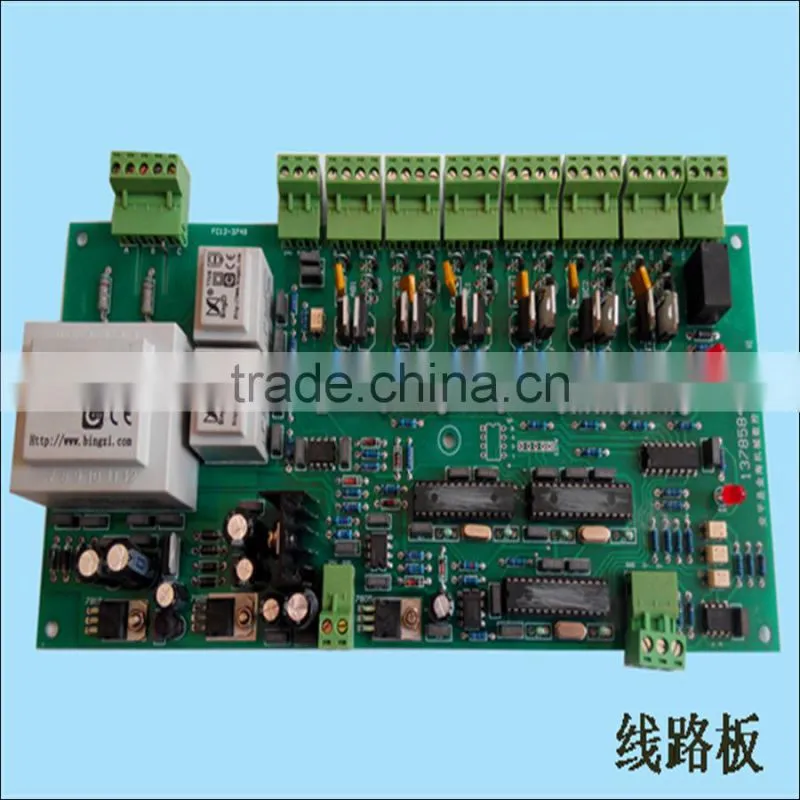

Circuit board

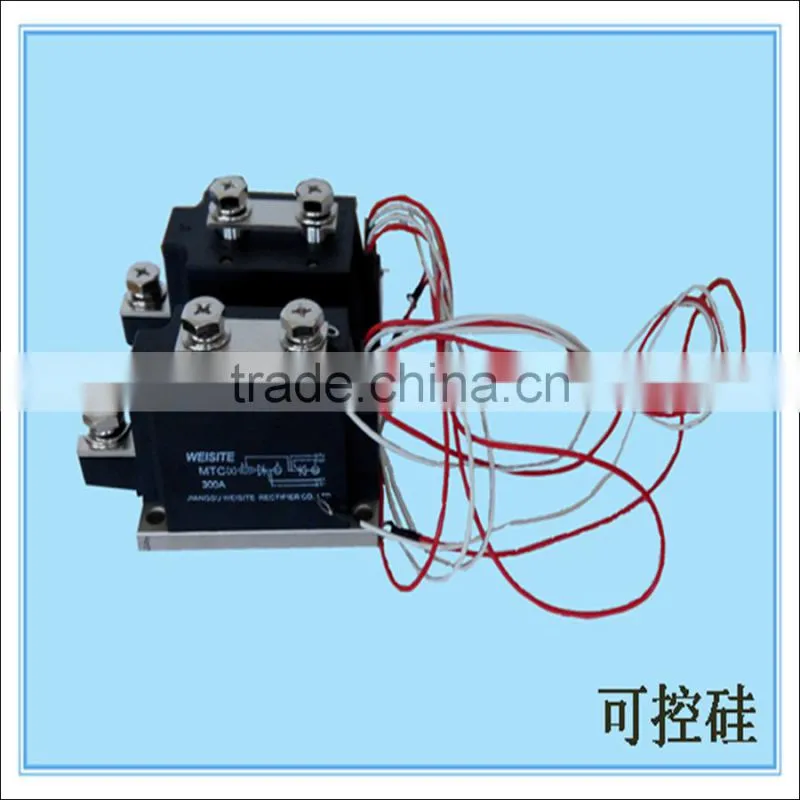

Silicon controlled rectifier

Our Service

1 .Maintenance period:one year
2.If the buyers need, we can send our technical staff to the buyers’ place to
debug the machine and providing the training in 30 days after the machines
arrive at the destination port.
3.The commissioning fees: free
4.The training fees: USD100/day for each technical
5.The numbers of technical persons: one technical person per machines at most
6.The fees ,such as round-trip tickets, accomodation etc, are all in buyers’
account. During the maintenance period: the parts damaged non-artificially
will be provided free of charge. If you need the technicians, we will
assign the expertised staff to your company. And the fees,such as round-trip
tickets, accomodation etc, are all in your account.

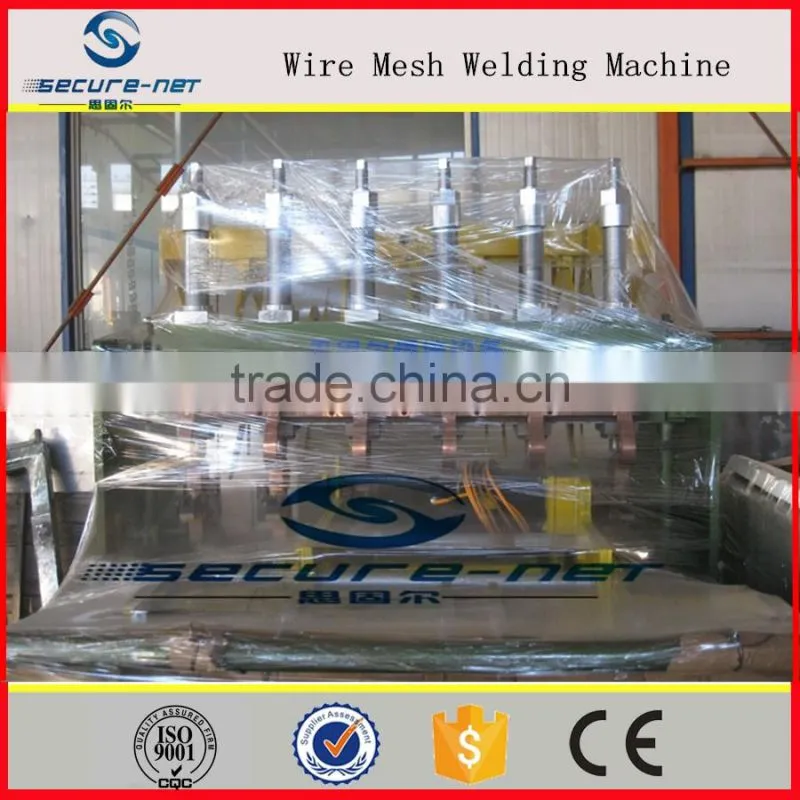

Packing & Delivery

Host with plastic film packaging, numerical control cabinet packed in wooden cases.

We can do all kinds of welding machine according you requirment
