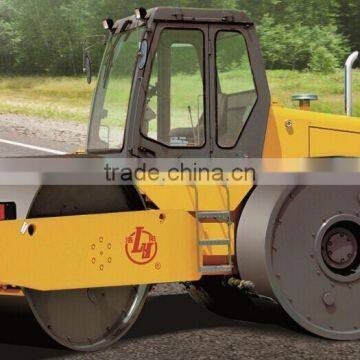

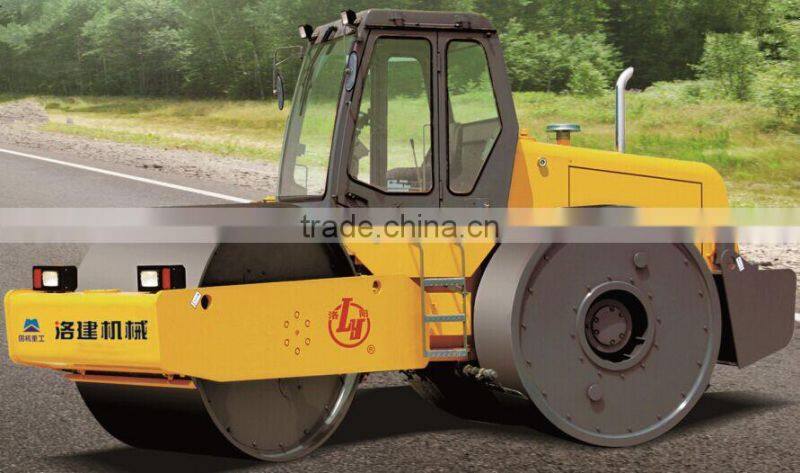

21 Ton Heavy Duty Three Wheel Static Road Roller With High Quality

LGS21/25 Static Three Wheel Rollers

Articulated heavy duty three wheel static roller is suitable for compaction of various such as gravel, crushed stone, sand-macadam mixture, sandy soil, stabilized soils and bituminous concrete etc. on base course and surface construction, which is a universal compaction equipment for highway, municipal road parking area and industrial ground.

Main Features

1.Full hydraulic steering system provides good performance while moving&climbing for various tough environments.

2.Mechanical drive system with 3-F&3-R speed shifts make high efficiency.

3.Dual independent brake system assures high safety.

4.Sprinkler equipped specially have no damage to road surface.

5.Increase the drum diameter with outstanding compaction effect.

6.Counterweight box mounted optionally. Enables user to adjust linear pressure and assures best efficiency.

TECHNICAL SPECIFICATIONS

Model: LGS18/21

Max.Operating mass: 21000kg

Min.Operating mass:18000kg

Static linear load, front: 560N/cm

Static linear load, rear: 1050N/cm

Max.Travel speed: 11.1km/h

Gradeability: 20%

Turning radius: 5800mm

Drum width: 2270mm

Wheelbase: 2950mm

Ground clearance: 460mm

Diesel model: YC6108G

Diesel power: 85kW

Overall dimensions: 5530*2270*3150mm
