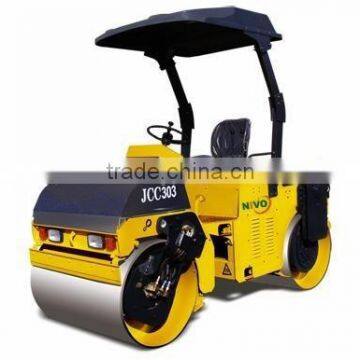

JCC303 Double Drum Vibratory Rollers
The tandem vibratory rollers are small-size tandem vibratory roller, applied to mending and maintaining various roads, expressway shoulder, side walk, parking area, sports ground and garden lawn. They are especially suited for compaction of narrow areas as pipeline channel and drainage trench etc.
Main Features
1.Adopt ZN390Q engine manufactured by Changchai Co.,Ltd. with good starting performance.
2.The rear-drum drive with side gear transmission and vibration in the front drum.
3.The front and rear frame articulated and power steering; Fork-type drum brackets with more than 600mm drum-side clearance.
4.The gearbox uses Japanese technology with easy gearshift; And three travel speeds posses good compaction and fast transportation.
5.Platform trailer as option.
6.Two the state patents.
TECHNICAL SPECIFICATIONS
Model: JCC303
Operating mass: 3000kg
Static linear load(F/R): 120/153N/cm
Vibration amplitude:0.5mm
Vibration frequency: 50Hz
Centrifugal force: 32kN
Max.travel speed:7.8km/h
Gradeability: 20%
Turning radius: 4500mm
Drum width: 1090mm
Drum diameter:780mm
Wheelbase:2050mm
Ground clearance:260mm
Diesel engine model: ZN390Q
Diesel engine power: 22kW
Overall dimensions: 2880*1280*2650mm
