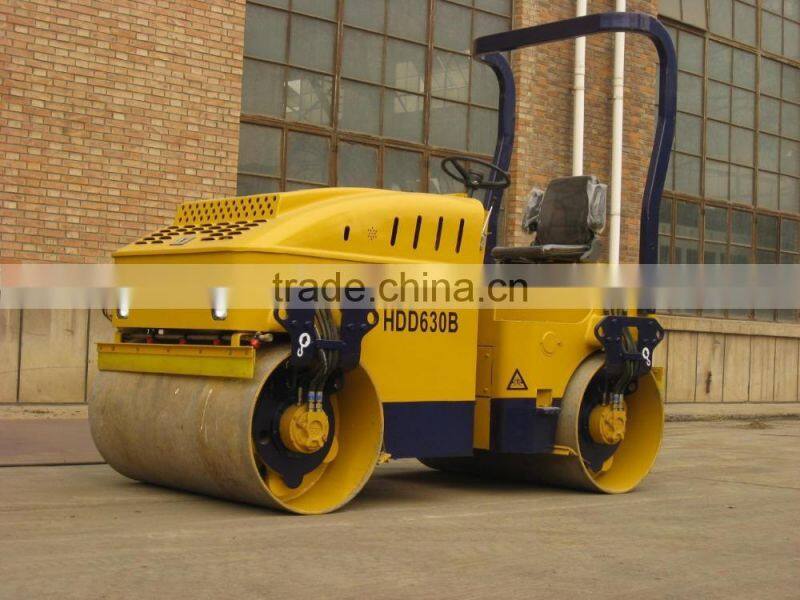

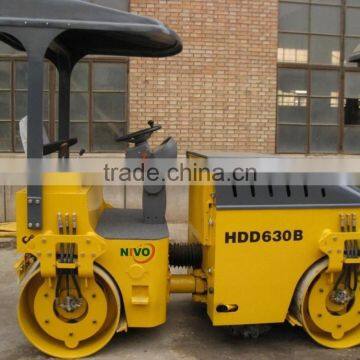

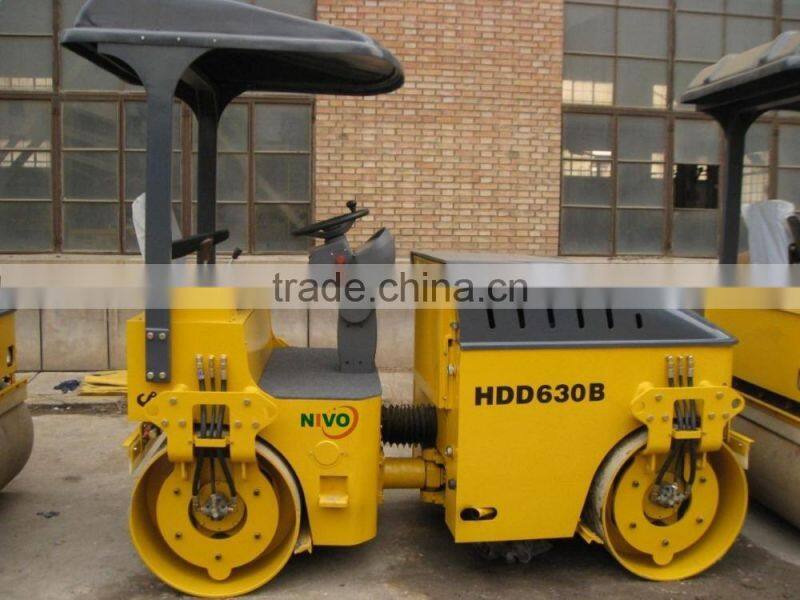

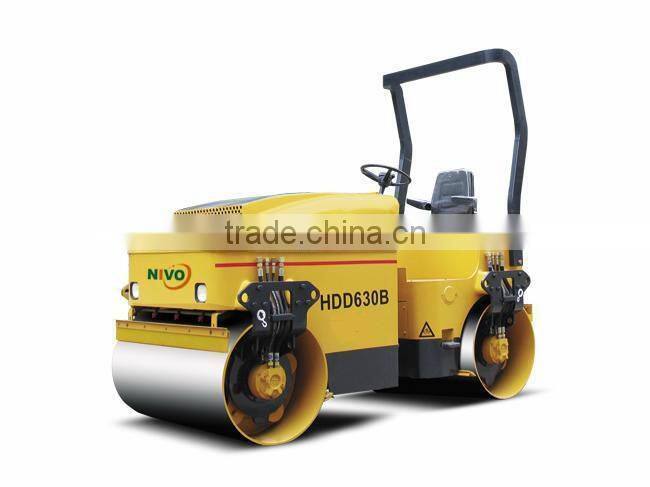

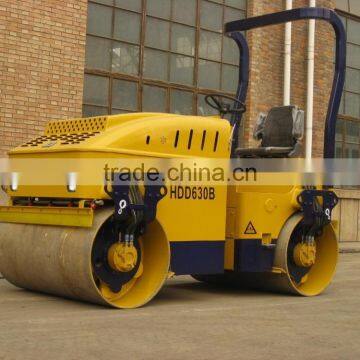

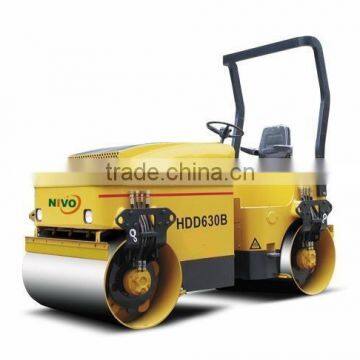

3 Ton Ride on Full Hydraulic Vibratory Road Roller

HDD630B Hydraulic Double Drum Vibratory Rollers

Hydraulic double drum vibratory rollers are manufactured according to international advanced technology and by use of imported main components abroad, suitable for compaction of various stabilized soils and bituminous concrete on road surface construction, which are ideal compaction equipments for industrial sites such as highway, municipal road mending, sports ground, garden lawn, etc.

Main Features

1.Optional well-known brand diesel engine at home and abroad, to achieve high-low different configuation, comply with emissions standards at home and abroad.

2.Can choose different models, the realization of hydraulic single or double drive, obtain satisfactory result of compaction.

3.Using key components imported from walking pumps, motors and couplings, such as walking, performance art.

4.Completely open engine cover offers the optimal the space of maintaining.

TECHNICAL SPECIFICATIONS

Model: HDD630B

Operating mass: 3000kg

Static linear load: 119/112N/cm

Vibration amplitude:0.45mm

Vibration frequency: 57Hz

Centrifugal force: 30×2kN

Travel speed:9km/h

Gradeability: 30%

Turning radius: 5000mm

Drum width: 1300mm

Drum diameter:700mm

Wheelbase:1948mm

Ground clearance:220mm

Diesel engine model: D1703

Diesel engine power: 26kW

Overall dimensions: 2650*1420*2540mm
