Big Capacity Symons Cone Crusher for Crushing Strong Stone

Big Capacity Symons Cone Crusher for Crushing Strong Stone photo-1
Big Capacity Symons Cone Crusher for Crushing Strong Stone photo-2

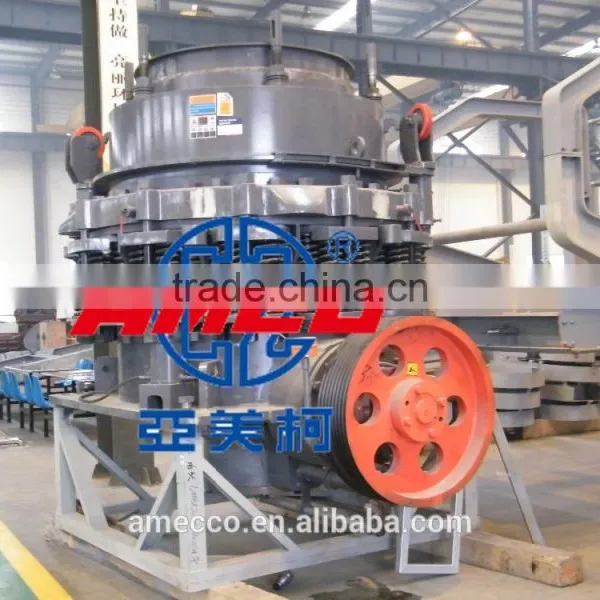

Big Capacity Symons Cone Crusher for Crushing Strong Stone photo-3

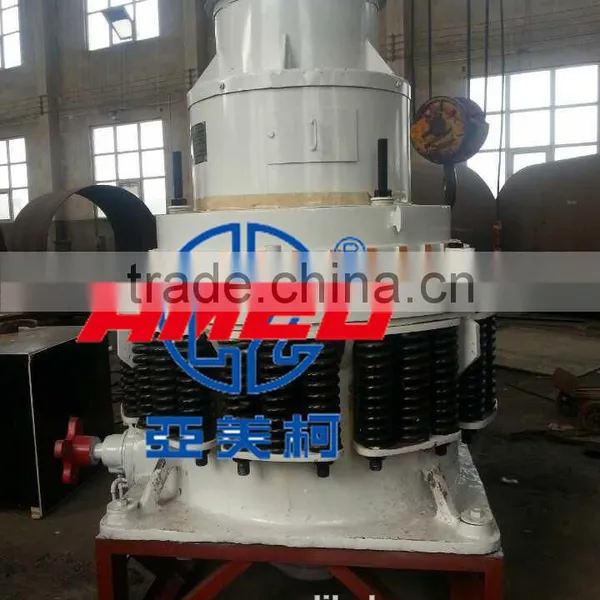

Big Capacity Symons Cone Crusher for Crushing Strong Stone photo-4

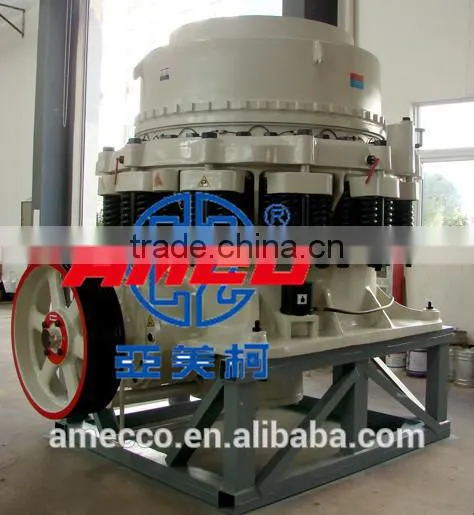

Big Capacity Symons Cone Crusher for Crushing Strong Stone photo-5
US$ 145,000 - 160,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Cone Crusher
Application:
Mining
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or depend on clients
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Cone Crusher
Application Mining
Motor Type AC Motor
Power(W) 250kw
Capacity(t/h) 172-632
Place of Origin Jiangsu, China
Brand Name AMEC
Model Number WKS 250-B(5 1/2Ft )
Dimension(L*W*H) 4105x3280x3505mm
Weight 43.5t
Certification ISO9001:2008
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

    WKS series cone crusher is a improved machine of PY series cone crusher. It’s applied in above medium hardness all kinds of ore and rock. Compared with PY series cone crusher, it has reliable structure, high efficiency, easy adjustment, low cost and many other advanrages. It’s applied in metallurgy, construction, white fuel, traffic, chemical engineering, construction material to process above medium hardness all kinds of ore and rock, it’s the best choice for large scale stone plant and ore crushing.

Raw Materials:
granite, marble, basalt, iron ore, cobble, shale, bluestone, coal, cobblestone, construction waste
Application:
metallurgy, construction, white fuel, transportation, chemical engineering, construction material

Advantages of WKS Cone  Crusher
1.Lamination crushing has a great performance on high hardness material, even and good final product shape, high capacity.
2.   Unique dry oil seal can protect machine from dust, reliable seal, Replacement cycle and service life of parts are lengthened.
3.   Spring system is overload protection to protect machine from metel damage.
4.   More material is allowed to be taken into machine, and discharge volume is increased.

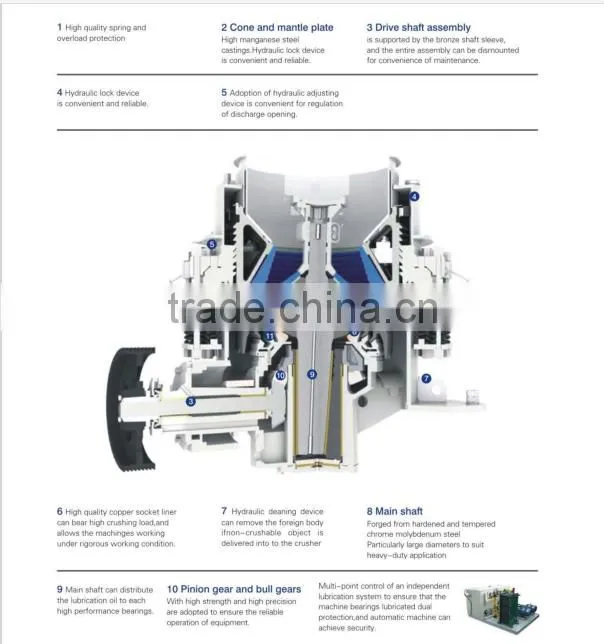

Working Principle of WKS Cone Crusher

    When working, the motor will drive the eccentric shaft to move through the V-belt,big pulley, transmission shaft, small bevel gear, big bevel gear, the cone crusher's eccentric shaft central line will revolve wit the eccentric shaft sleeve.Then the concave will be close then far away from the mantle surface, then the material will be circled around the fixed and mobile cone, impacted, pressed and then curved. After many times of repetition, material would be crushed into the desired size, then discharged from the lower part.

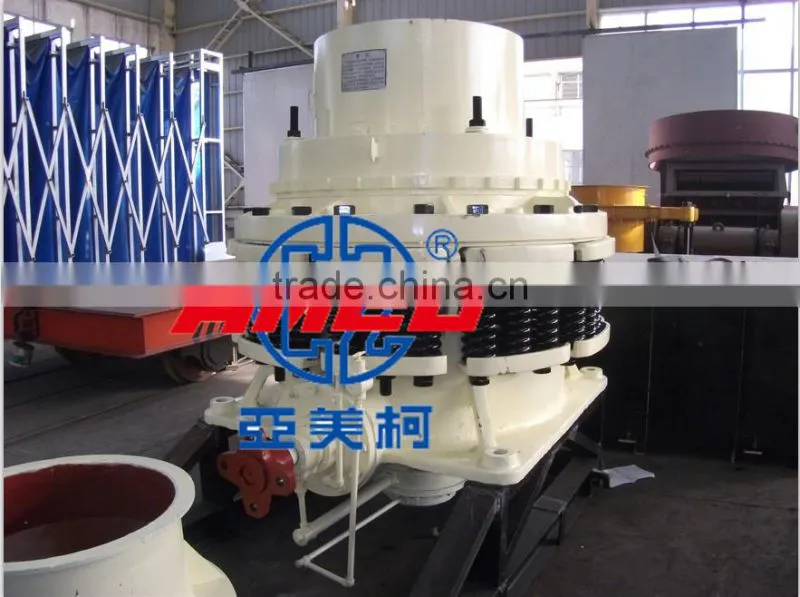

big capacity Symons cone crusher for crushing strong stone

Specification and Technical Parameter of PY Series Cone Crusher:
Standard:
ModelWKS 75-BWKS 160-BWKS 250-BWKS 350-B
Specs3Ft 900mm4 1/4Ft 1275mm5 1/2Ft 1650mm7Ft 2134mm
Cavity Typenarrowmediumwidenarrowmediumwidenarrowmediumwidenarrowmediumwide
The Smallest Discharge
(mm)
91325131625162238192538
Corresponding
Feeding Size
(close)side(mm)83159163109188238188213331253303425
(open) (mm)102175178137210259209241368278334460
Capacity(t/h)45-9150-12059-163109-181132-253172-349181-327258-417299-635381-726608-998789-1270
Weight(t)1526.543.567.3
Motor Power(KW)6P-756P-1606P-2506P-350
Dimension(mm)2865×2000×21903300×2500×29404105×3280×35055110×4270×4350

Short Head:
ModelWKS-75-DWKS-160-DWKS-250-DWKS-350-D
Specs3Ft 914mm4 1/4Ft 1295mm5 1/2Ft 1676mm7Ft 2134mm
Cavity Typenarrowmediumwidenarrowmediumwidenarrowmediumwidenarrowmediumwide
The Smallest Discharge
(mm)
3363616561351016
Corresponding
Feeding Size
(close)side(mm)13335119549835541175195152
(open)(mm)
40607664891337089133105133203
Capacity(t/h)27-9030-10031-11036-16382-163109-22790-209136-281190-336190-408354-508454-599
Weight(t)1526.543.567.3
Motor Power(KW)6P-756P-1606P-2506P-350
Dimension(mm)2865×2000×21903300×2500×29404105×3280×35055110×4270×4350

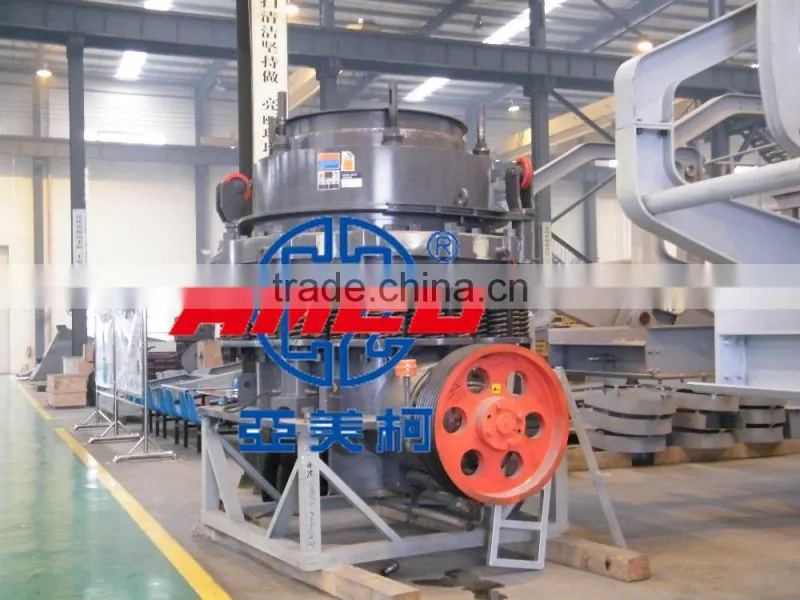

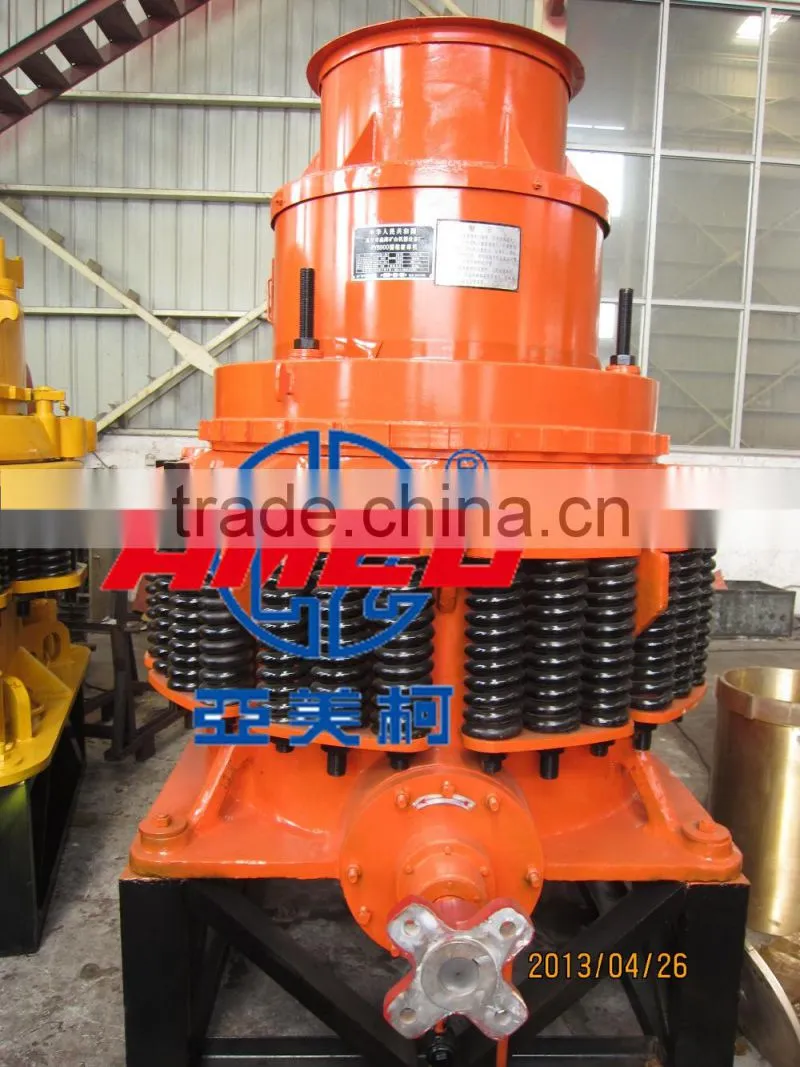

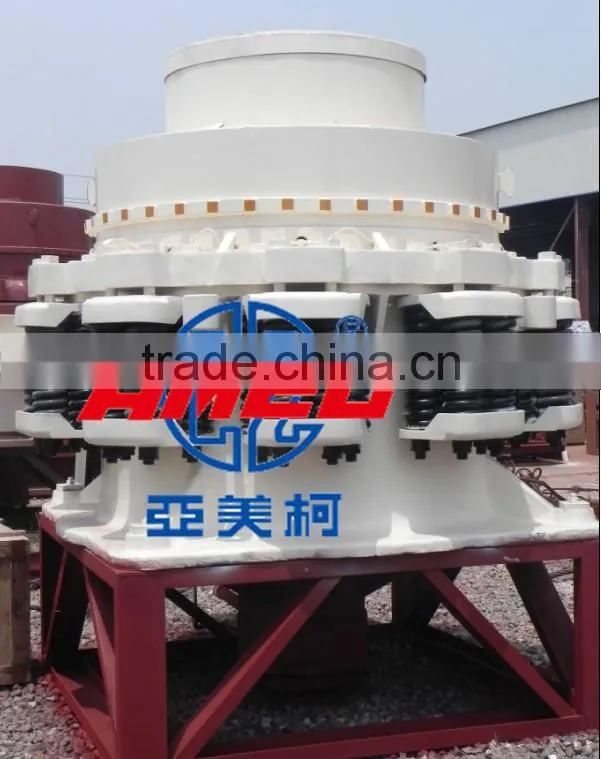

big capacity Symons cone crusher for crushing strong stonebig capacity Symons cone crusher for crushing strong stonebig capacity Symons cone crusher for crushing strong stonebig capacity Symons cone crusher for crushing strong stonebig capacity Symons cone crusher for crushing strong stonebig capacity Symons cone crusher for crushing strong stonebig capacity Symons cone crusher for crushing strong stonebig capacity Symons cone crusher for crushing strong stone

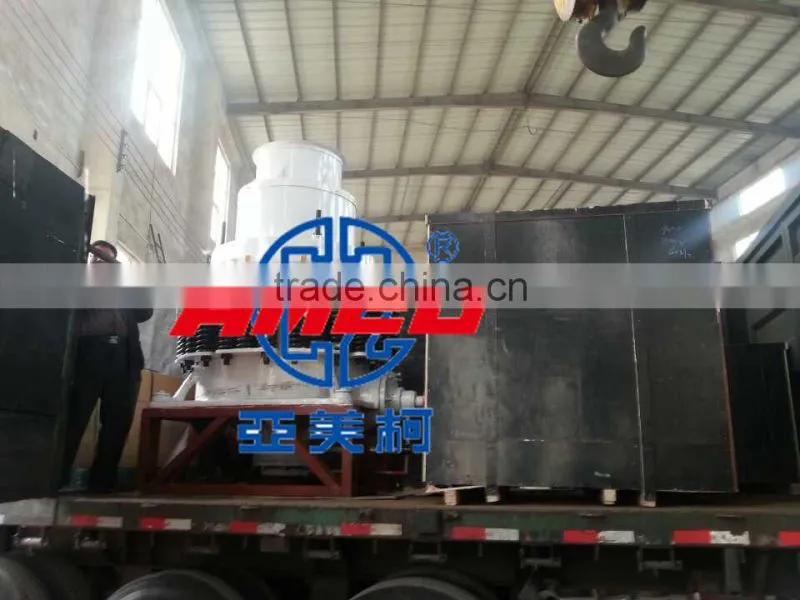

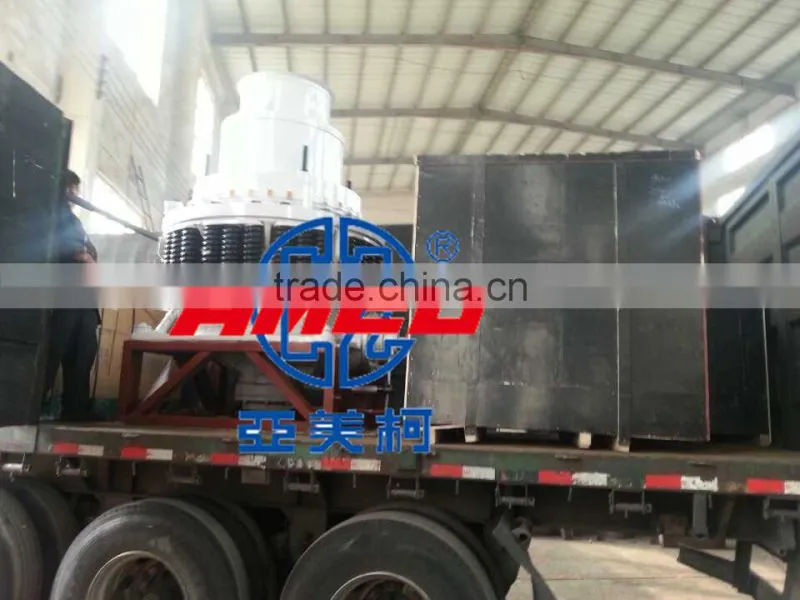

Packaging & Shipping

Nude packing for the main machine

Wooden case for the power motor and spare parts



Our Services

       We have office oversea we can easy to privide the csutomer about befroe sales service, machine quality control service ,technical support  and after service.

Company Information



      Changzhou Machinery and Equipment Import and Export Co., Ltd. (AMECCO) ()was founded in 1983. Taking advantage of the ownership of our six manufacturing subsidiary companies, we share our benefits in production and technology with our clients while we focus on the import and export of commodities and service. Strict quality control system, timely delivery and customer-oriented service make us have established trade relations with clients in more than 70 countries and regions.



Our main scope of our business:

Machinery and Equipment:

Power machinery, agricultural machinery, garden machinery, construction machinery, mining machine,machine tools and complete equipment

Power Transmission Parts

Chains, sprockets, taper bushes, gears and shafts



OEM components:

Machined, forged, cast, punched and welded workpiece

Micro Motors

Step motors, DC brushed & brushless motors, AC motors for aircon and paper shredder

Automobile Accessories

Auto lens and lamps, mirrors, motors and mechanical parts



Keeping the customers satisfied has been our strong wish. Please contact us for more information. We welcome your orders.
