Specifications

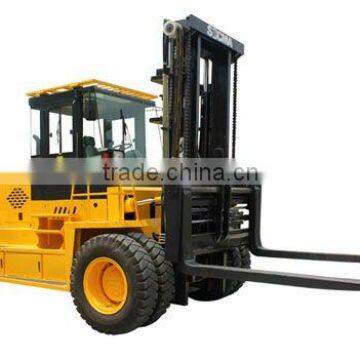

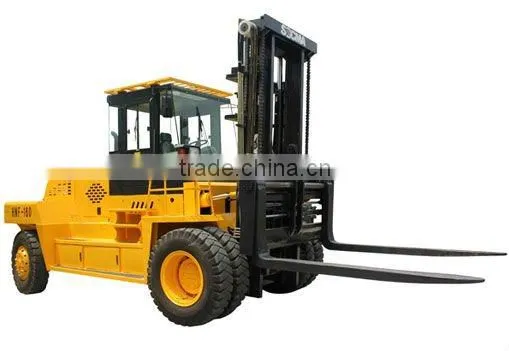

Diesel ForkliftHNT150 forklift with 15 ton capacyt,Cummins engine
HNT150 forklift
Superior Performances:
1. strong powerful diesel engine, reliable, good performance.
2. hydraulic transmission, planetary hub reduction gear, infinitely variable speeds, easy operation.
3. adopt heavy casette high magnification ratio braking system to ensure heavy load braking, reliable braking.
4. full hydraulic steering system, small turning radius, flexible turning, easy to operate.
5. adopt double pump confluence working hydraulic system, reduce oil consumption.
6. all localization components standardizing, high cost performance, high generality and easy to purchase, routine maintenance quick and easy.
7. lifting height reaches above 3M and it is easy to change the height according to customer’s requirements.
8. equipped with rear lifting cylinder, convenient for rear wheel maintenance, and prolong the service life.
9. use special overall roller bearings mast, prolong the service life and improve reliability.
10. safety valve to avoid the mistake in operation, ensures the high reliability of the hydraulic systems.
11. widely used in airports, ports, docks, stations, warehouses, and other occasions for intensively loading and unloading, stacking and short-distance transport.
Excellent quality devices:
Engine -- top-grade engine(WEICHAI engine), with multinomial patents, big power, low oil consumption, low noise, save energy, high efficiency, durable and reliable ,Euro II emission standards.
Transmission & torque convert & driven axle -- planetary torque converter and transmission R & D by ourselves, high strength heavy loading planetary hub reduction drive axle, 30 years technology, excellent stability and reliability.
Mast -- wide view mast, broad vision to facilitate driver observation.
Fork -- with fork positioned, easy loading and unloading, solid and durable.
Cab -- bright, spacious and comfortable, nice view with safe skylight design.
Tyres -- use well-known brands, plus level, special tires, security performance, wear-resistant and durable.
Item |
Unit |
HNF150G |
Load capacity |
Kg |
15000 |
Weight |
Kg |
20000 |
Max. lifting height |
mm |
3500 |
Load center |
mm |
600 |
Max. lifting speed |
mm/s |
300 |
Tilt angle (front/back) |
deg. |
6/12 |
Travel | ||
Max. traveling speed |
Km/h |
30 |
Min. turning radius |
mm |
5800 |
Min. ground clearance |
mm |
250 |
Gradeability |
% |
20 |
Overall length |
mm |
7380 |
Overall width |
mm |
2750 |
Overall height |
mm |
3500 |
Fork size (L*W*H) |
mm |
1800*180*90 |
Wheel base |
mm |
3800 |
Tread (front) |
mm |
2060 |
Tread (rear) |
mm |
2330 |
Engine | ||
Rated power |
kw |
125 |
Rated speed |
rpm |
2200 |
Pressure of hydraulic systems |
Mpa |
16 |
Tires type | ||
Front |
4x12.00-24-18PR |
|
Rear |
2x12.00-20-18PR |
|
