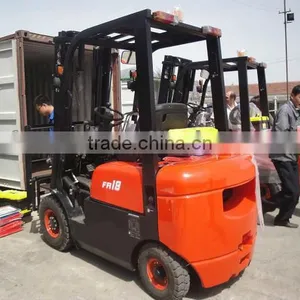

1.5-4 ton counterbalance diesel forklift truck
- 300 Unit / Units per Month
- Shanghai
- T/T
Product Details
Place of Origin: | Hubei, China | Brand Name: | FOTMA | ||
Model Number: | FR series | Type: | Powered Pallet Truck | Power Souce: | Diesel Engine |
Rated Loading Capacity: | 1.5~4.0ton | Max. Lifting Height: | 3000mm | Min. Lifting Height: | 110mm |
Overall Dimensions: | 3195*1085*1995mm | Certification: | CE |
Packaging Details
export package or as required
Product Description
Specifications
1.5-4 ton counterbalance diesel forklift truckStandard mast height: duplex 3000mm
Standard tyre: pneumatic
FR series 1.5-4 ton counterbalance diesel forklift truck
The product integrates advanced diesel technologies of both home and abroad, and it meets ChinaⅡemission standard. It makes great improvements in power capacity, economy, startability, and reliability. with double-core air filter, the engine life is prolonged; and it also features the punch forming upper frame, counterweight of large arc, reduced front overhang, enlarged bearing capacity, and 1220 fork arm for simple and flexible operation. |
Detialed parameters
Main specification | |||||||||||||||
Model | CPC15FR | CPCD15FR | CPC18FR | CPCD18FR | CPC20FR | CPCD20FR | CPC25FR | CPCD25FR | CPC30FR | CPCD30FR | CPC35FR | CPCD35FR | CPC40FR | CPCD40FR | |
Load capacity kg | 1500kg | 1800kg | 2000kg | 2500kg | 3000kg | 3500kg | 4000kg | ||||||||
Load center mm | 500mm | ||||||||||||||
Power type | Diesel | ||||||||||||||
Max.lifting speeds (with load)mm/s | 500mm/s | 400mm/s | 375mm/s | 300mm/s | |||||||||||
Max.Driving speeds (with without load)km/h | 14.5/15km/h | 17/19km/h | 18/20km/h | 17/19km/h | 18/20km/h | ||||||||||
Max.Towing speeds (with/without load)kN | 14.4/8.4kN | 14.4/9.1kN | 14/9kN | 15/10kN | 15.5/10.5kN | 16/11kN | 16.5/11.5kN | ||||||||
Gradeability (with/without load)% | 15/20% | ||||||||||||||
H1 Lifting height mm | 3000mm | ||||||||||||||
Free lift mm | 70mm | 60mm | 80mm | ||||||||||||
Tilting angles(forward-backward) . | 6/12(αfrontβrear) | ||||||||||||||
Min. turning radius mm | 2000mm | 2450mm | 2500mm | 2720mm | |||||||||||
Min. right angle aisle width mm | 1770mm | 2050mm | 2110mm | 2320mm | |||||||||||
Min. under-clearance mm | 110mm | 135mm | |||||||||||||
Dimensions | A Overall length (inincluding fork) mm | 3195mm | 3605mm | 3800mm | 4100mm | ||||||||||
B Overall width mm | 1085mm | 1160mm | 1230mm | ||||||||||||
H Overall height (mast lowered) mm | 1995mm | 2095mm | 2100mm | ||||||||||||
H2 Overall height (mast extend) mm | 4030mm | 4080mm | 4270mm | ||||||||||||
H3 Overall height to overhead guard mm | 2085mm | 2095mm | 2110mm | ||||||||||||
A1 Fork overhang mm | 430mm | 451mm | 465mm | 470mm | |||||||||||
A2 Wheel base mm | 1450mm | 1640mm | 1700mm | 1900mm | |||||||||||
Tread | B1 Front tread mm | 891mm | 970mm | 1000mm | 1060mm | ||||||||||
B2 Rear tread mm | 920mm | 970mm | |||||||||||||
Tyre | Front tyre | 6.50-10-10PR | 7.00-12 | 28×9-15 | 250-15 | ||||||||||
Rear tyre | 5.00-8-10PR | 6.00-9 | 6.50-10 | 6.50-10 | |||||||||||
Total weight kg | 2650kg | 2850kg | 3320kg | 3600kg | 4320kg | 4580kg | 4900kg | ||||||||
B3 Fork width mm | 100mm | 122mm | 125mm | 150mm | |||||||||||
H4 Fork thickness mm | 35mm | 40mm | 45mm | 50mm | |||||||||||
Backrest height mm | 1000 | 1225 | |||||||||||||
A3 Fork length mm | 900mm | 1070mm | 1220mm | ||||||||||||
Engine | Engine model | 485 | 490 | 498 | |||||||||||
Rate power KW | 30KW | 39KW | 45KW | ||||||||||||
Rotate Speed At Rate Power rpm | 2600rpm | 2650rpm | 2500 | ||||||||||||
Max.torque Nm | 131Nm | 157Nm | ≥93 | ||||||||||||
Rotate speed at max torque rpm | 1700rpm | 1980rpm | 1800-1900rpm | ||||||||||||
Type of power shift | C | H | C | H | C | H | C | H | C | H | C | H | C | H | |
C=Clutch H=Hydraulic |

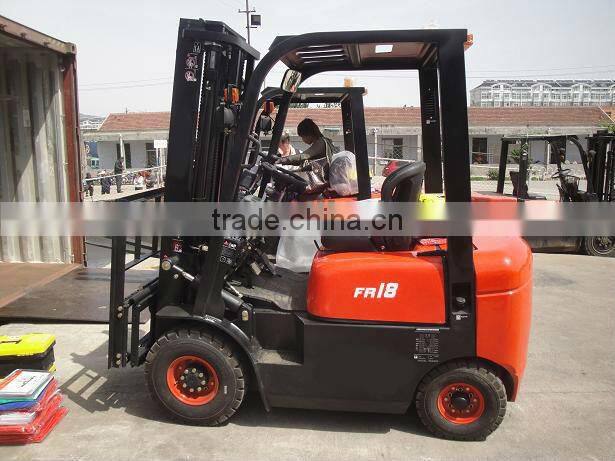

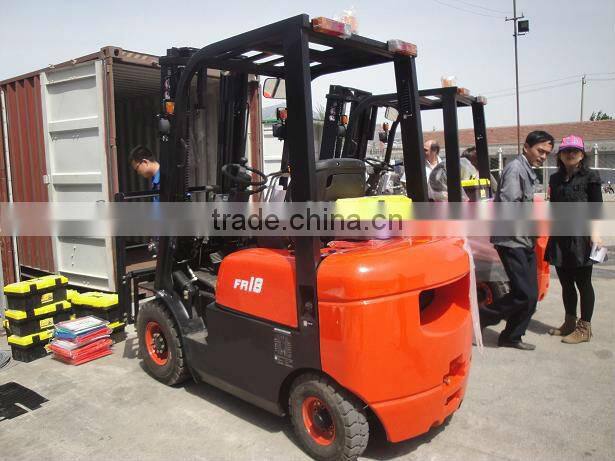

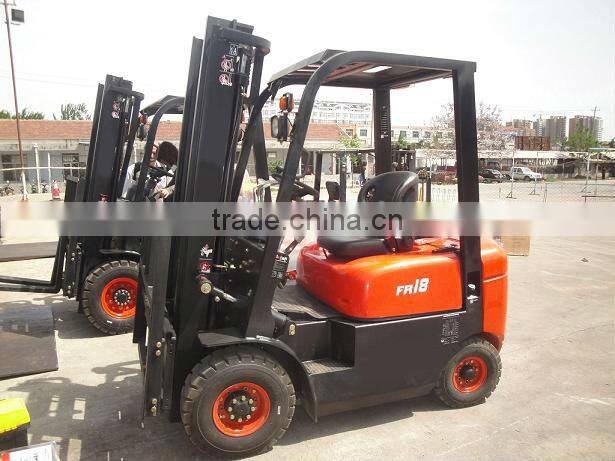

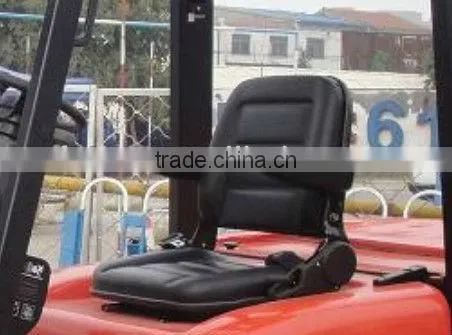

Ref.Pictures
