JM754 75hp Agricultural Tractor

JM754 75hp Agricultural Tractor thumbnail-1
JM754 75hp Agricultural Tractor photo-1
US$ 500 - 1,500,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Hubei Fotma Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 55kw
Certificate EPA
Brand Name Jinma
Model Number Jinma 754
After-sales Service Provided Overseas service center available

Specifications

JM754 75hp tractor
High quality with reasonable price
Low fuel consumption and noise;
High efficiency;
Excellent performance

JM754 75hp tractor :





Specification
Tractor parameters
Model
JM754
Drive type
4WD
Overall dimensions( L*W*H )
4085*1929*2568
Wheel track(mm)
  front
1450
  rear
1370-1790
Wheel bass(mm)
2236
Ground clearance(mm)
340
Rated traction force(N)
16000
Construction mass(kg)
3215
Min.turning radius(m)
4.3
Engine
Model
4cylinder
Type(EPA)
4cylinder engine,
 water cooled
Rated power(km/hp)
55(75)
Rated speed(rpm)
2300
Drive system
Clutch
Dual-stage
Gear box
(4+1)*2
Main drive
one pair of spiral bevel gearing
Differential
Bevel gear
Differential lock
Sliding pin, foot operated
Final transmission
Planetary reduction gear
Traveling mechanism
Type
   front
8.3-24
   rear
14.9-30
Steering gear
Hydraulic(power) steering
Brake
Disc type
Working device
Hydraulic system
Lifting capacity at 610mm(N)
12400
3-point suspension
Category:2
P.T.O  shaft
Rotating speed(rpm)
540/720 or 540/1000
Spline size
6 @ 35 Rectangular spline

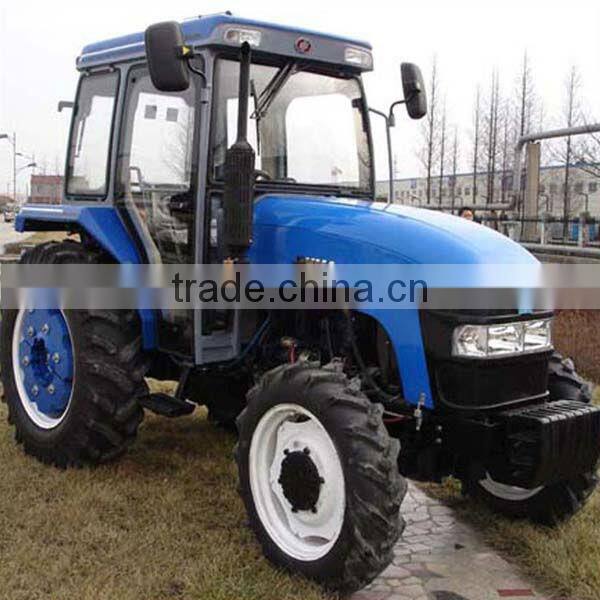

phpto of JM754 75hp tractor :JM754 75hp agricultural tractorJM754 75hp agricultural tractor
