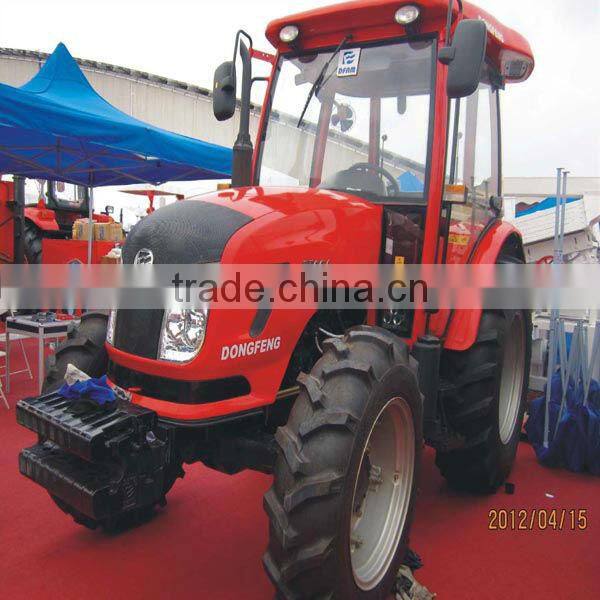

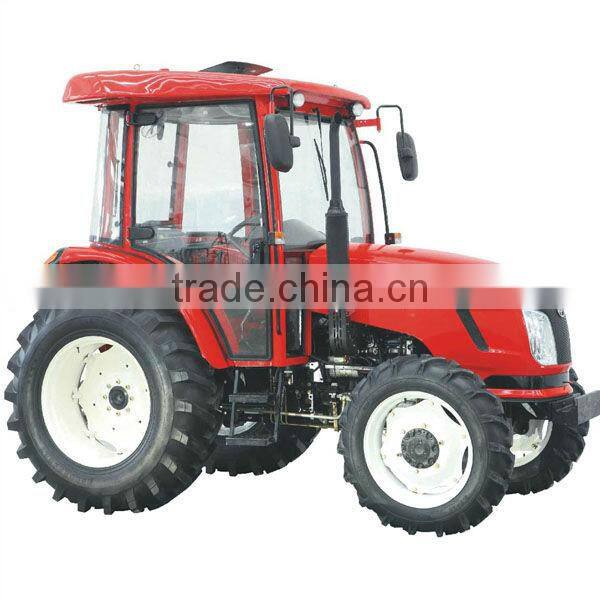

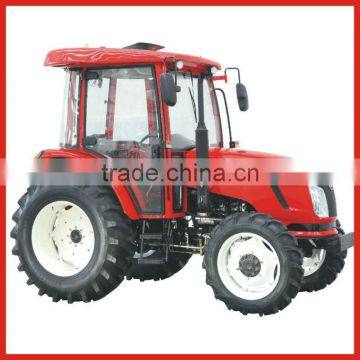

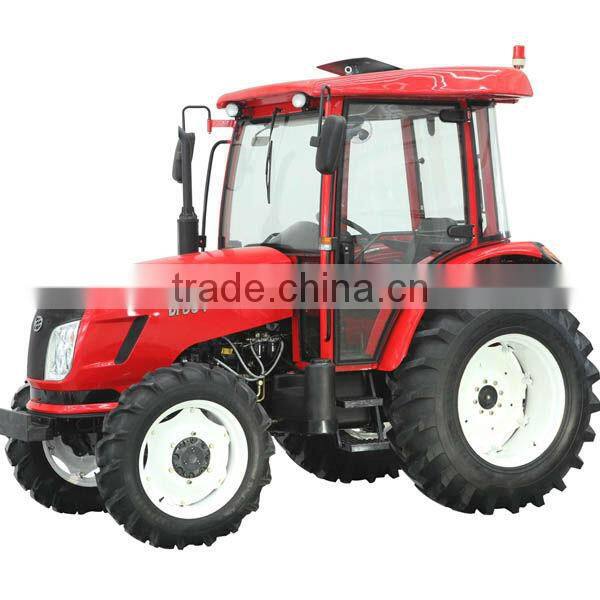

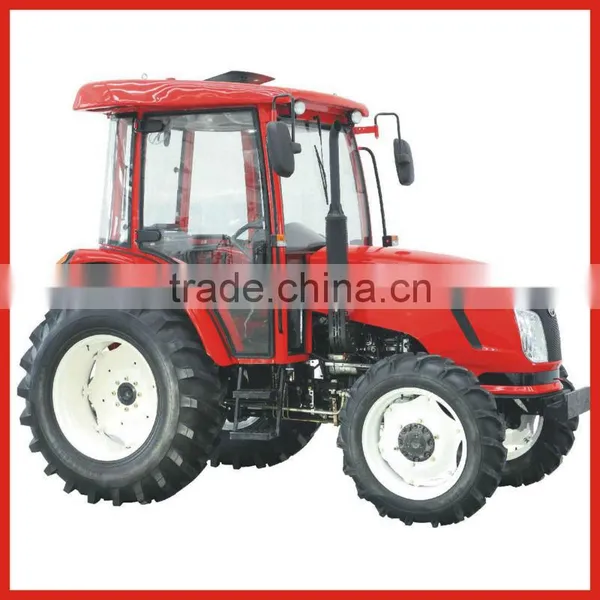

Dongfeng DF804 80hp agricultural tractor
- 500 Unit / Units per Month
- Shanghai
- T/T
Product Details
Condition: | New | Type: | Wheel Tractor | By wheel: | 4WD |
Usage: | Farm Tractor | Drive Type: | Other, Gear Drive, 4WD | Power(W): | 59kw |
Certificate: | EPA | Brand Name: | Dongfeng | Model Number: | Dongfeng DF804 |
After-sales Service Provided: | Overseas third-party support available |
Packaging Details
Iron crate or nude
Product Description
Specifications
Dongfeng DF804 80hp agricultural tractorConvenient control
Easy to operate;
high quality; low price
Good after-sale service
Dongfeng DF804 80hp agricultural tractor
Details of Dongfeng DF804 80hp agricultural tractor in chart
Tractor | Model | DF-804 | |
Drive Type | 4WD | ||
Overall Dimensions | 4240*2050*2810 | ||
Wheel Track(mm) | Front | 1610 | |
Rear | 1620-2020(1620) | ||
Wheel Base(mm) | 2362 | ||
Ground | Under Front Axle | 379 | |
Rated Traction | 18600/19200 | ||
Construction Mass(Kg) | 3575 | ||
Min. Turning Radius(m) | 4.1 | ||
Theoretical | Forward | 2.30,3.60,5.80,8.00,10.0,15.6,25.0,34.9 | |
Reverse | 3.10,4.80,7.70,10.80 | ||
Engine | Model | LRC4108T/4MC-T | |
Type | 4-cylinder,Upright inline cylinder | ||
Rated Power(Kw/hp) | 59.0/80.0,62.5/85.0 | ||
Rated Fuel Consumption(g/kw/h) | <242 | ||
Rated Speed(rpm) | 2300 | ||
Bore*Stroke(mm) | 108*135/110*135 | ||
Total Displacement(L) | 4.94/5.13 | ||
Drive | Clutch | Dry Independent type dual Function clutch | |
Gear Box | 4*(2+1)*2 | ||
Main Drive | One Pair of Spiral Bevel Gear | ||
Differential | Obturation, four bevel gears | ||
Differential Lock | Mesh gear | ||
Final Transmissions | Planetary reduction gear | ||
Travelling | Tyre | front | 11.2-24 |
rear | 13.6-38,16.9-34 | ||
Steering Gear | Hydraulic steering | ||
Brake | Oil immersed multi-plate disc | ||
Working | Hydraulic | Lifting Capacity at | 1600 |
3-point Suspension | Category: II | ||
P.T.O. Shaft | Rotating | 540/1000 | |
Spline size | 6-φ35 Rectangular spline |
If you want to know more information, please send e-mail to us.
