Help CenterJM254 Small Agricultural Tractor
US$ 4,000 - 8,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Wheel Tractor
By wheel
4WD
Usage
Farm Tractor
Drive Type
Gear Drive
Power(W)
18KW
Certificate
Other, OECD, EPA, EEC
Brand Name
Jinma
Model Number
JM254
After-sales Service Provided
Overseas third-party support available
Specifications
JM254 Small Agricultural Tractor25hp,4WD agriculture tractor
EEC/COC, EPA, OECD approved
Turf tyre available
Reliable price
JM254 Small Agricultural Tractor
JM254 tractor is the most popular model amoung our sales, it is welcomed due to its compact structure, powerful engine and reliable price. It can comes with EPA4 approved engine, Euro III approved engine. Cabin with air conditioning is optional.
Main Specificaiton for JM254 Small Agricultural Tractor
Specification | |||
Tractor parameters |
Model |
JM354 |
|
Drive type |
4WD |
||
Overall dimensions( L*W*H ) |
3230*1435*1985mm |
||
Wheel track(mm) |
front |
1200 |
|
rear |
1150-1450 |
||
Wheel bass(mm) |
1833.5 |
||
Ground clearance(mm) |
292 |
||
Rated traction force(N) |
8800 |
||
Construction mass(kg) |
1800 |
||
Min.turning radius(m) |
4.2 |
||
Engine |
Model |
3cylinder |
|
Type |
3cylinder engine,
water cooled
|
||
Rated power(km/hp) |
25.7/35 |
||
Rated speed(rpm) |
2350 |
||
Drive system |
Clutch |
Dual-stage |
|
Gear box |
(4+1)*2 |
||
Main drive |
one pair of spiral bevel gearing |
||
Differential |
Bevel gear |
||
Differential lock |
Jaw lock |
||
Final transmission |
Spur gear,
external gearing
|
||
Traveling mechanism |
Type |
front |
7.5-16 |
rear |
11.2-24 |
||
Steering gear |
Hydraulic(power) steering |
||
Brake |
Disc type |
||
Working device |
Hydraulic system |
Lifting capacity at 610mm(N) |
5800 |
3-point suspension |
Category:1 |
||
Gear pump flow |
20L/Min |
||
P.T.O shaft |
Rotating speed(rpm) |
540/720 or 540/1000 |
|
Spline size |
6 @ 35 Rectangular spline |
||
Our workshop:
Other hotselling models of Jinma tractors:

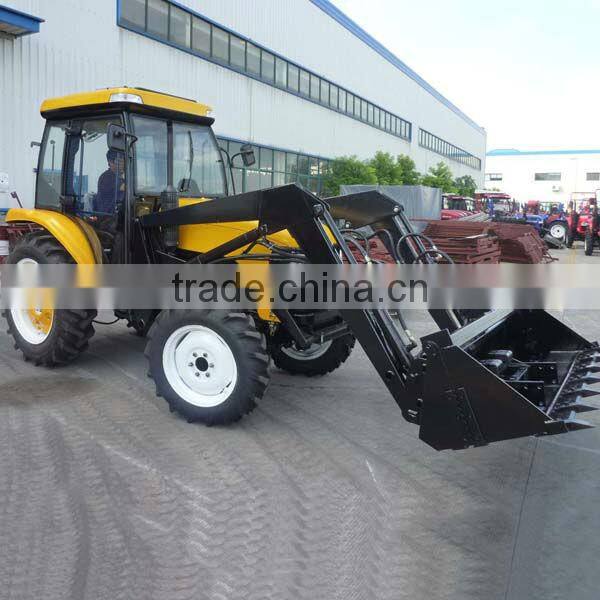

JM454 tractor with cabin and front end loader

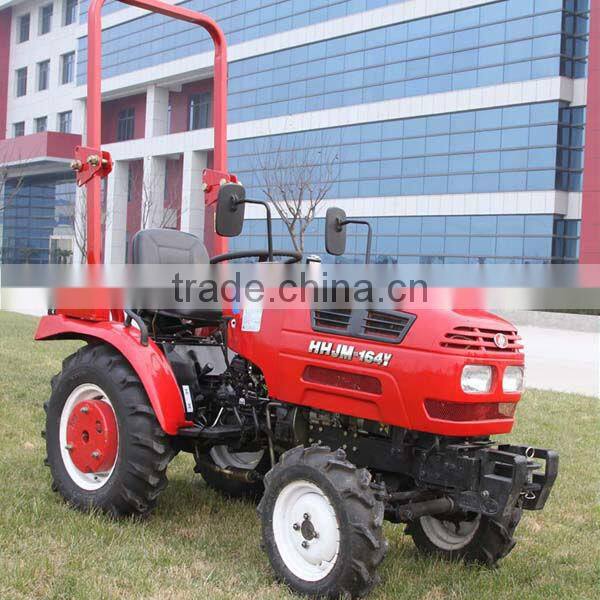

JM164Y tractor with EEC

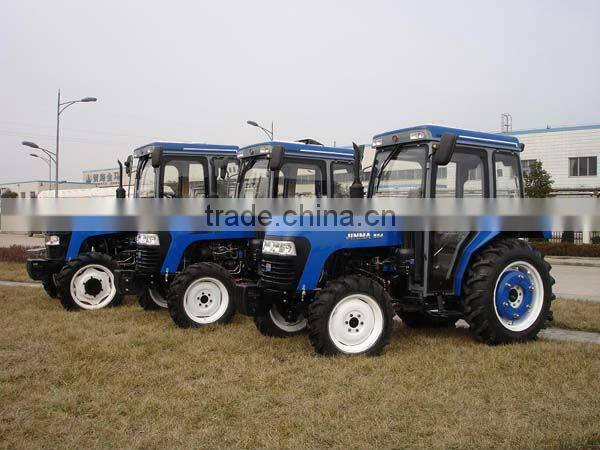

55-75hp tractors with cabin
You are welcomed to send us Email to get more information for all the other tractor models.
