YTO-X804 Wheel Tractor Price

Hubei Fotma Machinery Co., Ltd. Gold Verified Supplier
5Yrs
YTO-X804 Wheel Tractor Price thumbnail-1
YTO-X804 Wheel Tractor Price photo-1
US$ 3,000 - 150,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 58.8KW/80hp
Certificate CE
Brand Name YTO
Model Number YTO-X804
After-sales Service Provided Overseas third-party support available

Specifications

YTO-X804 Wheel Tractor Price;
For low mine usage ;
Low fuel consumption and noise ;
Excellent performance ;
Reasonable price

  YTO-X804 Wheel Tractor Price :

Specification for  YTO-X804 Wheel Tractor Price:
The YTO X804 tractor is developed on the basis of the Italian wheeled tractor chassis technology and adopts the British technology-based engine. The machine body has a streamline configuration. It has a low specific fuel consumption and a desirable power economic efficiency. It has multiple gears and a wide speed range. Besides, it is flexible in steering and easy to operate.
Model
YTO-X804
Tractor
Type
4x4
Overall dimensions (LxWxH) (mm)
4350x2170x2740
Wheelbase (mm)
2314
Min. ground clearance (mm)
430
Min. operating mass (with safety stand) (Kg)
3675
Tyre spec. front / rear
11.2-28 / 13.6-38
Wheel tread, front / rear
1630-1960 / 1500-2100
Steering
Full hydraulic
Brake
Oil immersed, disk type
Diesel engine
Model
LR4B5-23
Type
Four cylinder, vertical, water cooled, four stroke, direct injection combustion
Displacement (L)
4.95
Rated power / speed (Kw) / (r/min)
58.8 / 2300
Max. torque (N.m) / speed (r/min)
270 / 1500-1700
Bore x stroke (mm)
108 x 125
Transmission
Gear shift, forward / backward
12 / 4
Speed range (Km/h), forward / backward
1.63-26.82 / 4.23-12.69
PTO power (Kw)
50
PTO rotation speed (r/min)
540 / 720 or 540 / 1000
Clutch
11-inch, dry, double action
Implement
Three-point linkage category
Three-point linkage category II
Tilling depth control mode
Combined draft, position control and floating control
Lifting force (KN)
16
Options
OECD anti-turnover bar
OECD certified anti-turnover bar or anti-turnover bar with awning
Transmission with shuttle-type gear
12+12
Transmission with creeper gear
24+8
Hydraulic output
2 or 3 group

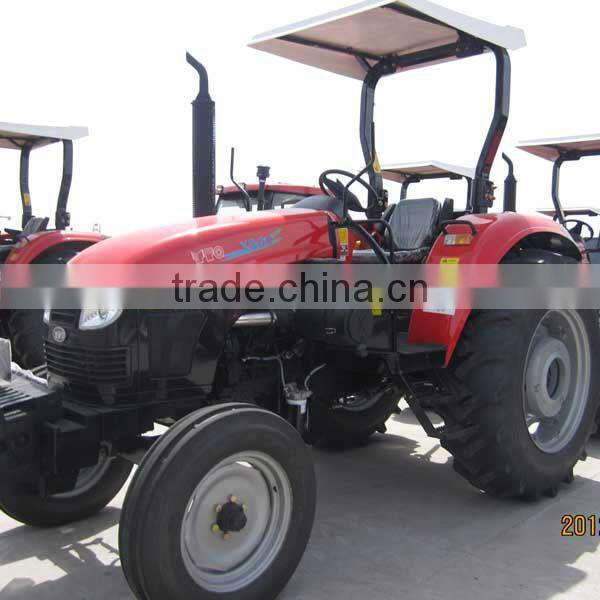

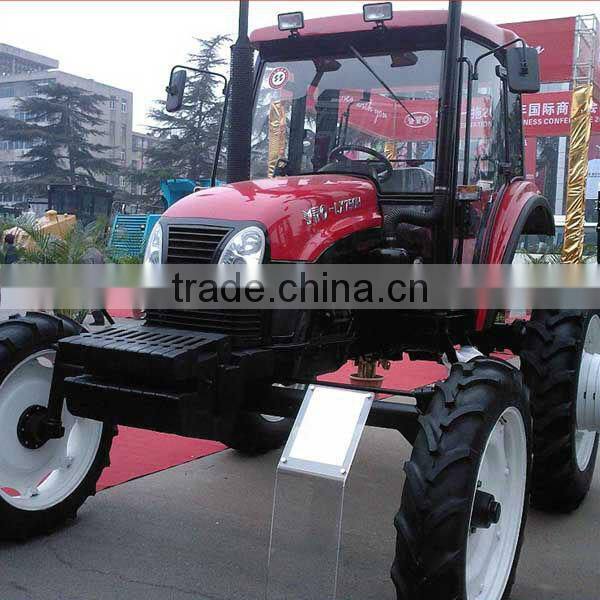

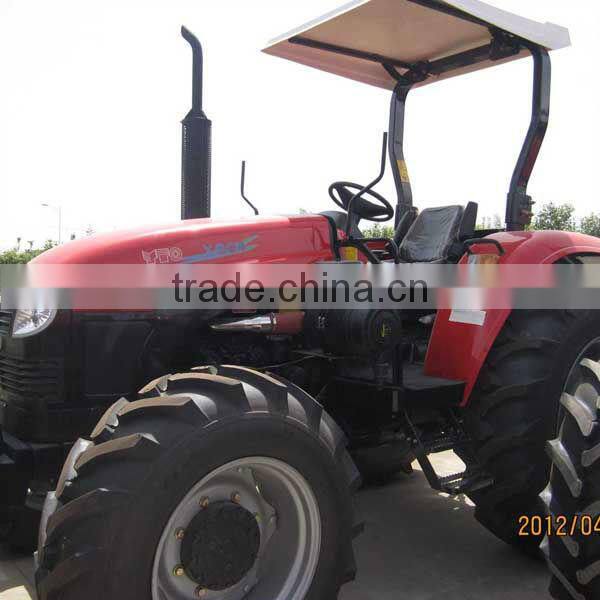

Other photos of YTO-X804 Wheel Tractor Price:

YTO-X804 Wheel Tractor PriceYTO-X804 Wheel Tractor Price





Other YTO wheeled tractor models we can supply:

YTO-X804 Wheel Tractor Price



                                                               YTO800

The YTO X800 tractor is developed on the basis of the Italian wheeled tractor chassis technology, adopting the British technology-based 4-cylinder turbo-charged engine. The machine body has a streamline configuration. The tractor has low specific fuel consumption and desirable energy efficiency. It has multiple gears and a wide speed range. Besides, it is flexible in steering and easy to operate.



YTO-X804 Wheel Tractor Price

                                                   YTO750

YTO-X804 Wheel Tractor Price

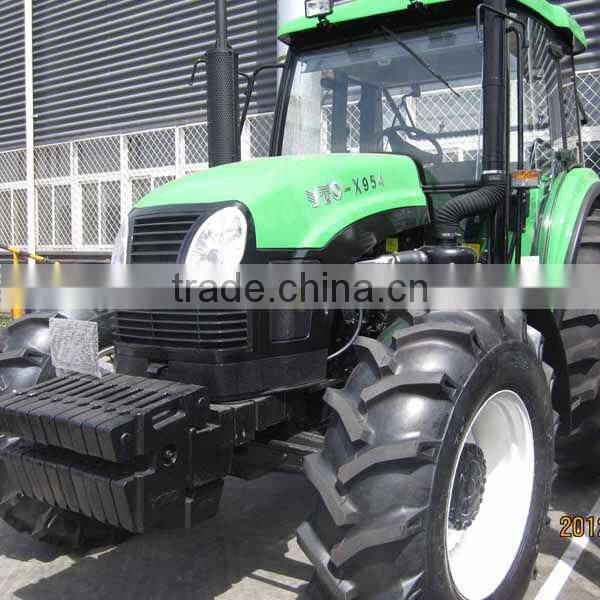

                                                                   YTO954





If you are interested in above tractor model or more details of other tractor models, please do not hesitate to contact us.

.
