50HP 2WD Farm Tractor

50HP 2WD Farm Tractor thumbnail-1
50HP 2WD Farm Tractor photo-1
US$ 3,000 - 150,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Hubei Fotma Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 2WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 37KW
Certificate EEC
Brand Name YTO
Model Number YTO-500
After-sales Service Provided Overseas service center available

Specifications

50HP 2WD farm tractor
Farm tractor;
50hp,2WD ;
Farm tractor with famous "YTO" engine
With high quality and competitive price

    50HP 2WD farm tractors

   The 50HP 2WD farm tractor is equipped with wet disc brakes, ensuring desirable braking performance and high reliability. It adopts the planetary end transmission
and double action clutches. It is applicable to paddy fields and dry farmlands. It
adopts the engagement sleeve gear shifting and force and position combined
regulation. It is large in wheel span and axle base, heavy in dead load, and
desirable in chassis stability. Besides, it is equipped with safety anti-toppling
shelf for optional assemblage.


Model
YTO-500
Diesel engine
Model
YT4A2-22
Type
Four cylinder, vertical, water cooled, four stroke
Displacement (L)
4.15
Rated power / speed (Kw) / (r/min)
36.8 / 2200
Max. torque (N.m) / speed (r/min)
195 / 1650
Bore x stroke (mm)
105 x 120
Transmission
Gear shift, forward / backward
8 / 4
Speed range (Km/h), forward / backward
2.37-31.06 / 3.52-10.74
PTO power (Kw)
32.5
PTO rotation speed (r/min)
540 / 720 or 540/ 1000
Clutch
10-inch, dry, double action
Implement
Three-point linkage category
Rear three-point linkage I
Tilling depth control mode
Combined draft, position control and floating control
Lifting force (KN)
8.3
Options
Cab
Frame construction, streamlined shape, with fan; air conditioning system is optional.
Transmission with shuttle-type gear
4x2x2
Transmission with creeper gear
4x(2+1)x2
Luxury integral panel
All-in-one instrument panel, glass guard plate
Hydraulic output
1 or 2 group
Adjustment mode, rear wheel
Stepless adjustment
Dimensions, mass, drive
Drive type
4x2
Overall dimensions (LxWxH) (mm)
3910x1745x2545
Wheelbase (mm)
2063
Min. ground clearance (mm)
400
Min. operating mass (with safety stand) (Kg)
2130
Tyre spec. front / rear
6.00-16 / 12.4-28
Wheel tread, front / rear
1350,1450 / 1300, 1400, 1500, 1600
Steering
Full hydraulic
Brake
Disk type, mechanical

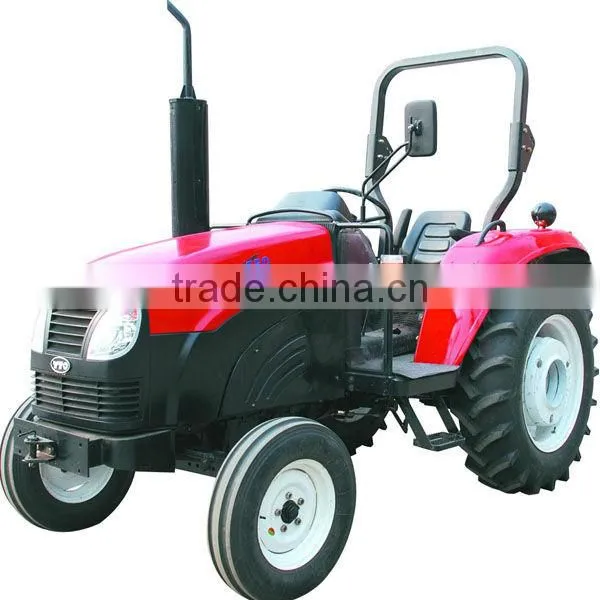

photo of 50HP 2WD farm tractor




50HP 2WD farm tractor
