Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Bulldozer > LIUGONG CLGB230I Best Bulldozer
US$ 10,000 - 100,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
LIUGONG
Model Number:
CLGB230I
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bulldozer SD16TL ShantuiUS$ 10,000 - 100,000MOQ: 1 Unit -
Bulldozer SD16TL ShantuiUS$ 10,000 - 100,000MOQ: 1 Unit
-
FOTMA FM920F 2.0T Wheel LoaderUS$ 10,000 - 100,000MOQ: 1 Unit
-
FOTMA FM920F 2.0T Wheel LoaderUS$ 10,000 - 100,000MOQ: 1 Unit
-
CHANGLIN ZL50G-6 Wheel LoaderUS$ 10,000 - 100,000MOQ: 1 Unit
Place of Origin
Guangxi, China
Brand Name
LIUGONG
Model Number
CLGB230I
Condition
New
Moving Type
Crawler Bulldozer
Machine Weight
24,539kg
Dimension(Long * Breadth * High)
6880*3725*3510mm
After-sales Service Provided
Overseas service center available
Specifications
LIUGONG CLGB230I best bulldozerHigh quality with competitive price
Excellent performance
Good after-sales service
ISO

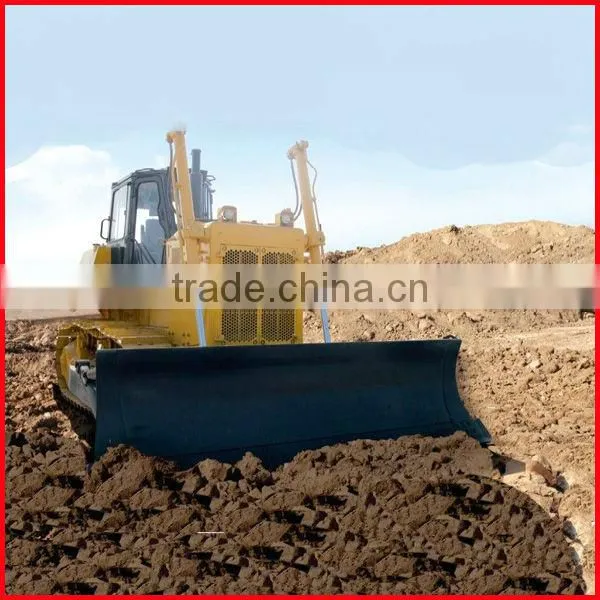

LIUGONG CLGB230I best bulldozer
Introduce:
LIUGONG Bulldozer CLGB230I(D)
Prameters:
| Model | CLGB230I(D) |
| Engine | |
| Emission Regulation | Tier 1 / Stage I |
| Make | ChongQing Cummins |
| Gross Power | 179 kW (243 hp) @ 2,000 rpm |
| Net Power | 169 kW (230 hp) @ 2,000 rpm |
| Peak Torque | 1,050 N m @ 1,400 rpm |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Displacement | 14 L |
| TRANSMISSION | |
| Transmission Type | Power shift |
| Maximum Travel Speed, fwd | 11.8 km/h |
| Maximum Travel Speed, rev | 14.3 km/h |
| Number of Speeds, fwd | 3 |
| Number of Speeds, rev | 3 |
| ELECTRICAL SYSTEM | |
| System Voltage | 24 V |
| UNDERCARRIAGE | |
| Shoe Width | 560 mm |
| Number of Shoes per Side | 39 |
| Number of Upper Rollers per Side | 2 |
| Number of Bottom Rollers per Side | 7 |
| Shoe Ground Pressure | 83.1 kPa |
| Track on Ground | 2,840 mm |

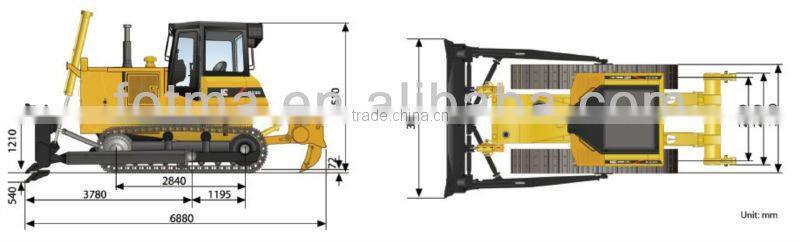

| DIMENSIONS | |
| Overall Length | 6,880 mm |
| Height to Top of Cab | 3,510 mm |
| Ground Clearance | 405 mm |
| OPERATING WEIGHTS | |
| Operating Weight | 24,539kg |
| BLADE PERFORMANCE | |
| Blade Type (referenced) | straight |
| Blade Capacity (referenced) | 7.8 m3 |
| Blade Width | 3,725 mm |
| Blade Height | 1,395 mm |
| Blade Depth below Ground | 540 mm |
| Blade Lift above Ground | 1,210 mm |
| Blade Tilt | 735 mm |
| SERVICE CAPACITIES | |
| Fuel Tank | 480 L |
| Engine Oil | 45 L |
| Cooling System | 79 L |
| Hydraulic System Total | 110 L |
| Transmission and Torque Converter | 122 L |
| Final Drives, each | 82 L |
