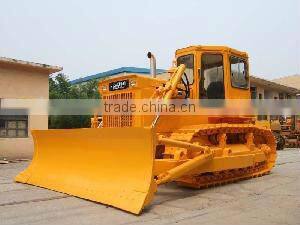

Pengpu Bulldozer PD120

Name: Pengpu Bulldozer PD120
Brand: Pengpu
SKU: 140838358
Availability: InStock

Hubei Fotma Machinery Co., Ltd.

5Yrs

US$ 10,000 - 100,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Pengpu

Model Number:

PD120

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name Pengpu

Model Number PD120

Condition New

Moving Type Crawler Bulldozer

Machine Weight 15610kg

Dimension(Long * Breadth * High) 4940*3200*2890mm

After-sales Service Provided Overseas service center available

Specifications

Pengpu bulldozer PD120
Hgih quality with reasonable price
Excellent performance
Convenient control operate
ISO

Pengpu bulldozer PD120

Introduce:

Product Model	PD120 Bulldozer
ENGINE
Model	6135K-2a Dongfeng 6135K-2a
Type	Inline vertical four-stroke cycle semi-open combustion chamber
Flywheel power (kW)	88.2(120PS)
Rated speed (r/min)	1500
Number of cylinders-bore*stroke (mm)	6-135*140
Starting method	Electric starting 24V 8kW
Battery	Lead storage cell, 6-Q-195(12V*2)
Air cleaner	K260X-la Paper element cyclone air cleaner
TRANSMISSION SYSTEM
Torque converter	Dry type, Multiple-disc, non-constantly engaged
Transmission	Spur gears, splash lubricated, 5 forward and 4 reverse speeds
Bevel gear	Helical bevel gear, splash lubricated
Steering clutch	Dry, multiple disc hand-operated with hydraulic booster
Steering brake	Dry, band brake,foot-actuated
Final drive	Spur gear, double reduction, splash lubrication
UNDER CARRIAGE
Sprocket	Segmented
No. of carrier rollers (each side)	2
No. of front ldler (each side)	1
Track tension	Hydraulic adjusted
No. of track rollers (each side)	5(3 single, 2 double)			7(4 single, 3 double)
*Floating seals are used in all track rollers,carrier rollers,sprocket and front idlers
TRAVEL SPEED (km/h)	1st	2nd	3rd		4th	5th
Forward	2.25	3.61	5.15		7.42	10.34
Reverse	2.7	4.33	6.18		8.91
TRACK
Type	Assembled, single grouse
Track pitch (mm)	203
Track width (mm)	500
Number of track shoes (each side)	37
Length of track on ground (mm)	2465
Ground clearance (mm)	300
Ground pressure (Mpa)	<0.063
Track gauge (mm)	1880
HYDRAULIC SYSTEM OF WORK EQUIPMENT
Working pressure (Mpa)	12
	12
Rated delivery (L/min) (2000r/min)	210
