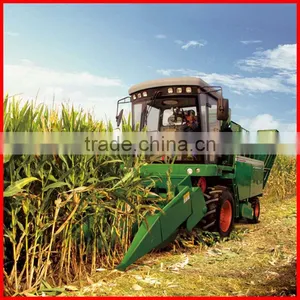

4YZ-3C Corn Harvester Machine

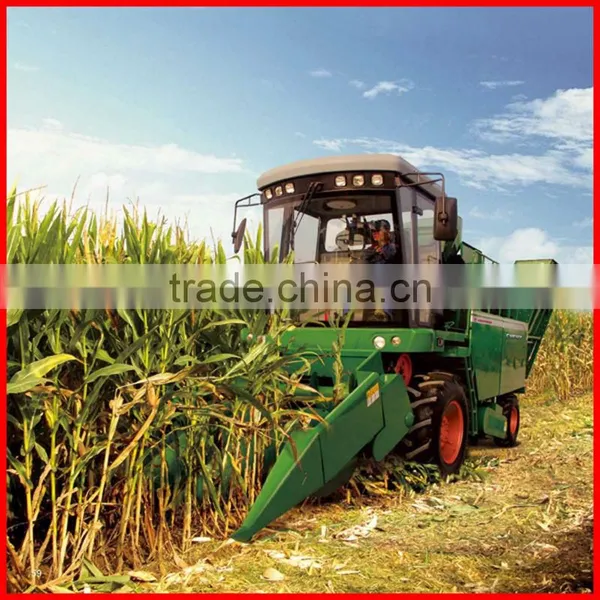

4YZ-3C Corn Harvester Machine photo-1
US$ 20,000 - 30,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Corn cob harvesing
Type:
Other, Combine Harvester, self-propelled, wheeled type
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Corn cob harvesing
Type Other, Combine Harvester, self-propelled, wheeled type
Drive Type Gear Drive
Usage Corn Harvester
Brand Name FOTMA
Model Number 4YZ-3C
Dimension(L*W*H) 8400x2580x3550mm
Weight 6050kg
Certificate Other, ISO
Warranty One year
After-sales Service Provided Overseas service center available

Specifications

4YZ-3C corn harvester machine
Super performance
High efficiency
Less damage and loss rate
Easy operation,comfortable driving

4YZ-3C corn harvester machine



Main Specifications for 4YZ-3C corn harvester machine:

Model4YZ-3C
TypeSelf-propelled
Harvesting rows3
Row space600mm
Dimension (L×W×H)8400×2580×3550mm
Weight(including header)6050kg
Engine power103KW
Min.ground clearance345mm
Min.slewing radiusLeft 4400~5500mm
Right 4200~5400mm
Front/rear wheel track1590/1640mm
Smashing width1920/1800mm
Grain tank capacity2.5m3
Pure work productivity0.33~0.53ha/h
Min.unloading height1820mm
Total loss rate≤4.0%
Grain broken rate≤1.0%
Corn impurity rate≤1.5%
Bract peeling rate≥85%
Stalk smashing length≤100mm
Stalk smashing blades3 Flail blades
Walking speedⅠshift 1.55~3.45 km/h
Ⅱshift 3.43~7.61 km/h
Ⅲ shift 9.25~20.51 km/h
Reverse 3.62~8.03km/h
Picking mechanismPicking plate + cutting roller
Loading(KD Packing)1units/1x40'HQ and 1x20'HQ

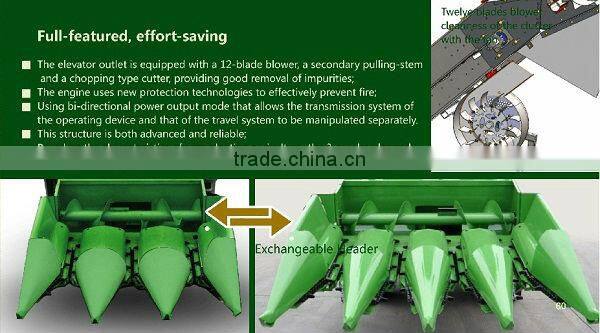

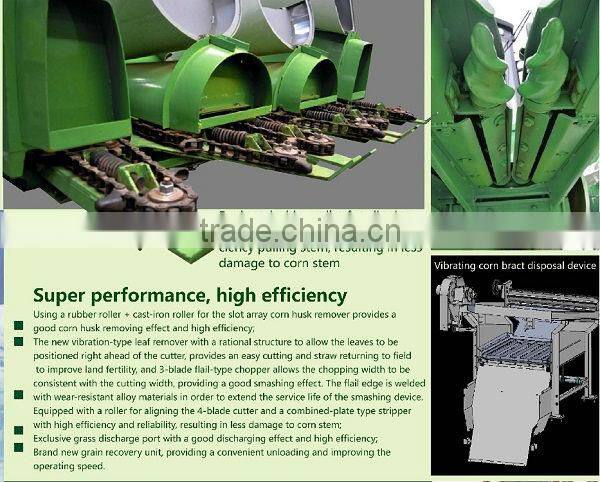

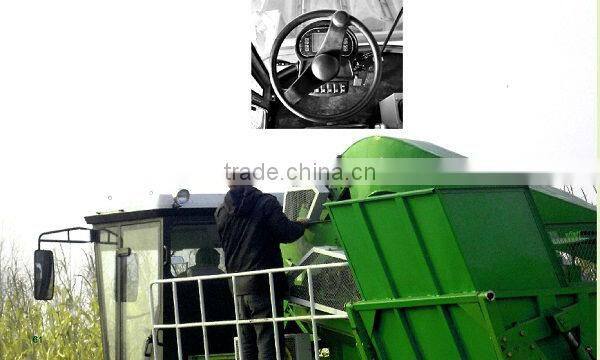

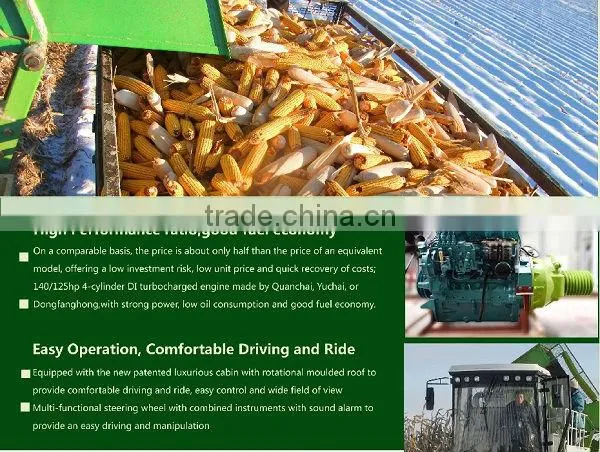

 More details of our 4YZ-3C corn harvester machine:

 4YZ-3C corn harvester machine4YZ-3C corn harvester machine4YZ-3C corn harvester machine4YZ-3C corn harvester machine

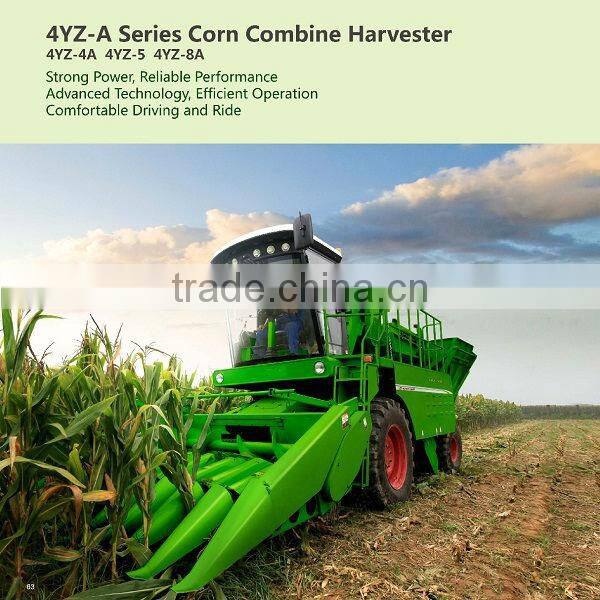

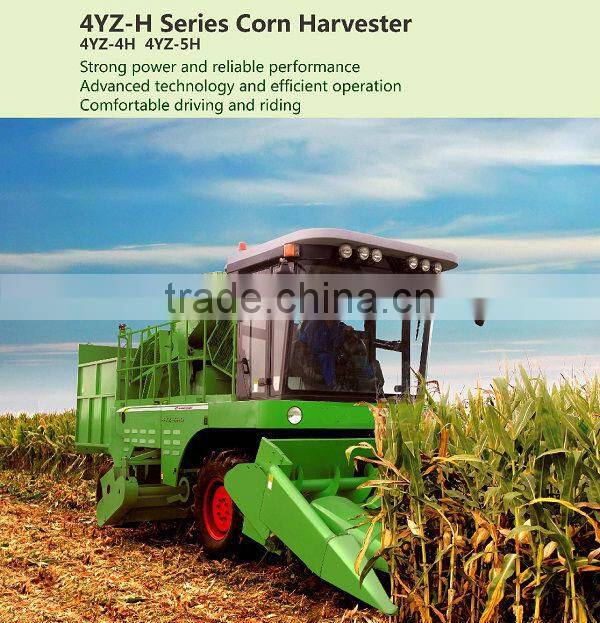

The other corn harvester machine we can provide:

4YZ-3C corn harvester machine



4YZ-3C corn harvester machine



4YZ-3C corn harvester machine



If you are interested in any models of our corn harvester, please do not hesitate to contact me.
