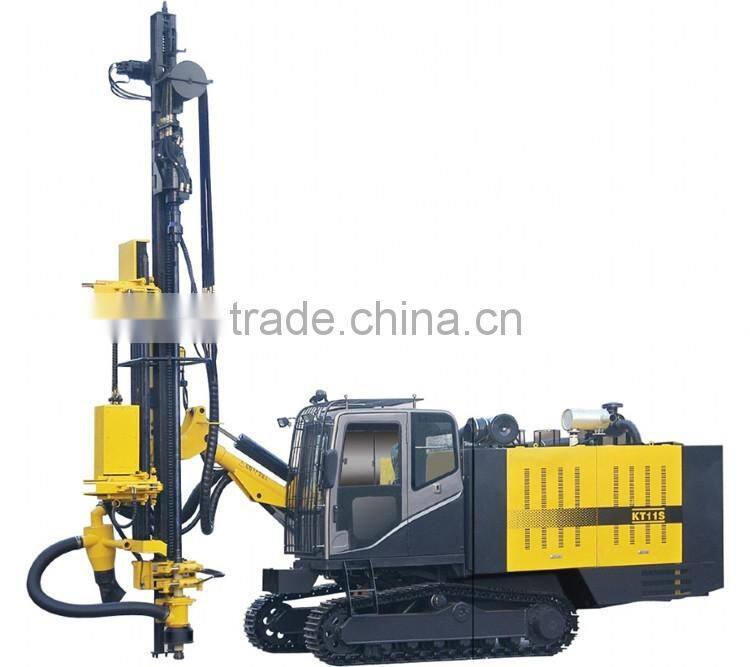

KT11S the most advanced crawler mounted integrated dth drilling rig

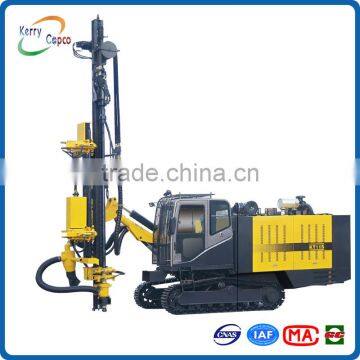

KAISHAN KT11S Most Advanced Safe and Efficient Crawler Mounted Integrated DTH Drilling Rig

Integrated DTH Drilling Rig

KT series integrated DTH drilling rig is an advanced drilling equipment which is the DTH drilling system combined with the screw air compressor system. With compact structure, good integrity and mobile convenience; the characteristics of drilling rig are energy-saving efficient, safe environmental protection, flexible and convenient operation, stable performance, etc.

1. The drilling rig is equipped with single stage middle air pressure screw main engine and adopts the middle air pressure pneumatic impact. The drilling rig is with high efficiency, low energy consumption.

2. The drilling rig is equipped with hydraulic dry integrator to collect dust and reduces the pollution of the environment.

3. The drilling rig is equipped with hydraulic manipulator, the drill pipe warehouse which disassembles the drill pipe and the floating joint which protect thread of drill pipe. One can disassemble the drill pipe.

4. Air conditioning cab provides comfortable working environment and automatic control anti-jamming valve to reduce the rate of jamming.

Drilling rig is equipped with single stage high air pressure screw air end which is core knowledge products of the company. The application of international leading Towne Y line, large flow (13m³/min), high pressure (1.7MPa), to provide strong power to high air pressure pneumatic impactor; the drilling speed is higher than middle air pressure drilling rig in 20% to 50%.

Recommended components and spare parts for drilling equipments:

Please contact us for further information.
