KAISHAN KJ313 the most advanced truck mounted full hydraulic tunneling drilling rig
- 10 Set / Sets per Month
- Guangzhou port
- T/T Credit Card
- 3NB9/1.8-7.5 mining mud pump is used for providing cooling and flushing fluid during rock core or coal seam drilling
- 2NB3/1.5-2.2 mining mud pump is a vertical, double cylinder, single acting plunger pump
- The 3NB-250/6-15 reciprocating mud pump provides washout fluid to the borehole during core drilling with the three-cylinder plunger
- Coal mine tunnel drilling rig ZLJ350 head can be turned
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
Product Details
Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Diesel |
Place of Origin: | Zhejiang, China | Brand Name: | Kaishan | Model Number: | KJ313 |
Usage: | Ore | Voltage: | 380V | Power(W): | 45 kw |
Dimension(L*W*H): | 11.3*1.75*2 m | Weight: | 12000 kg | Certification: | ISO9001:2000 |
Warranty: | 1 Year | After-sales Service Provided: | No overseas service provided |
Product Description

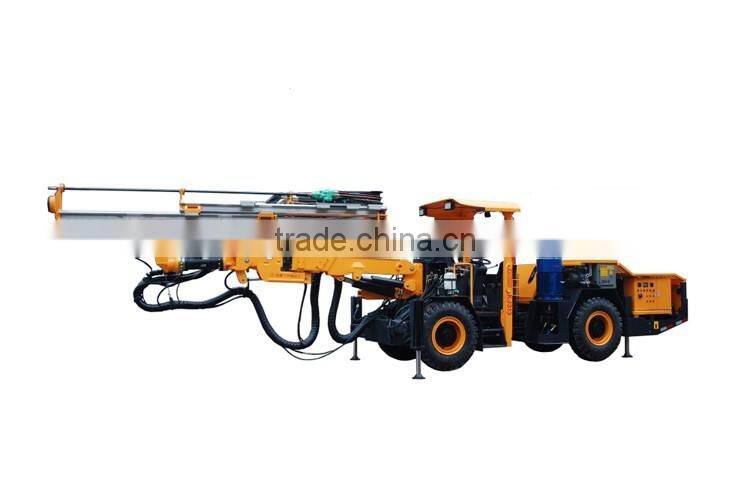

KAISHAN KJ313 Most Advanced Safe and Efficient Truck Mounted Full Hydraulic Tunneling Drilling Rig
KJ313 Full Hydraulic Tunneling Drilling Rig

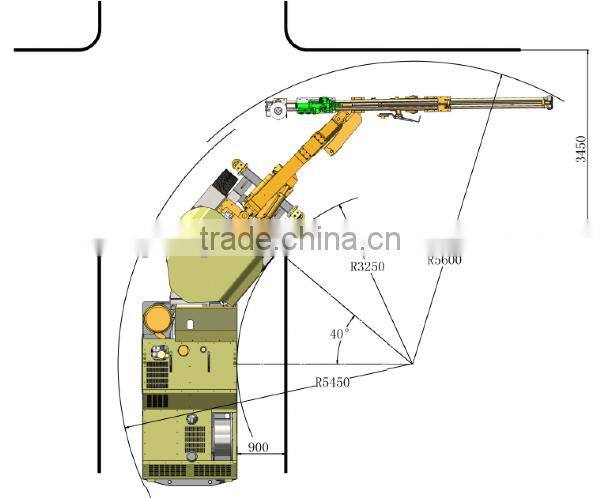

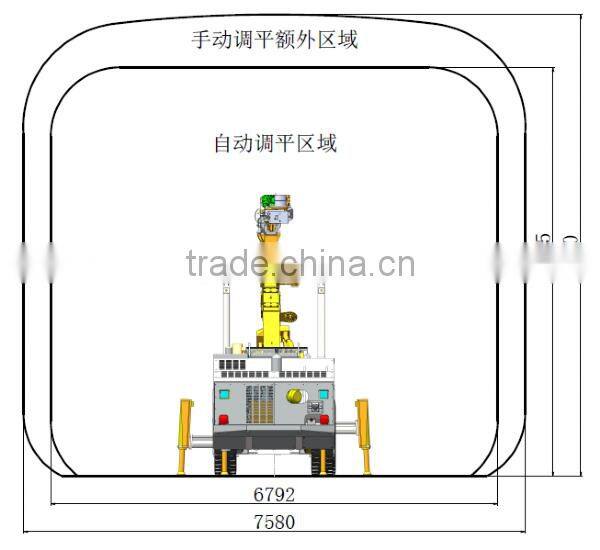

KJ313 hydraulic tunneling drilling rig apply to 12-35 square meters section of hard rock mine excavating working. Specially designed for balanced anchor rod, and drills 2.2m deep bolt hole in 4m high roadway.
1. Reliable universal drill boom is with the best shape of cross section covers, and propulsion beam turns 360º and keeps balance automatically for drilling quickly and positioning easily;
2. The drill boom also can be used in the lateral opening and bolt hole positioning;
3. The arrangement of drilling rig ensures drivers’ vision is good;
4. Balanced arrangement and strong four-wheel drive articulated chassis ensure flexibility, speed and safety during driving in the narrow alley;
5. High-frequency impact rock drill adopts cascade piston to optimize efficiency of the shock wave transmission. Improve the drilling speed, and reduce the cost of drill tool and increase integrity rate of the equipment;
6. Spacious working space and a series of automatic functions are helpful for the driver concentrate into drilling safely, fatly and accurately; the maintenance parts are protected well, for easy to be maintained.
Full Hydraulic Tunneling Drilling Rig Specification | ||||||
Model | KJ311 | KJ312 | KJ313 | |||

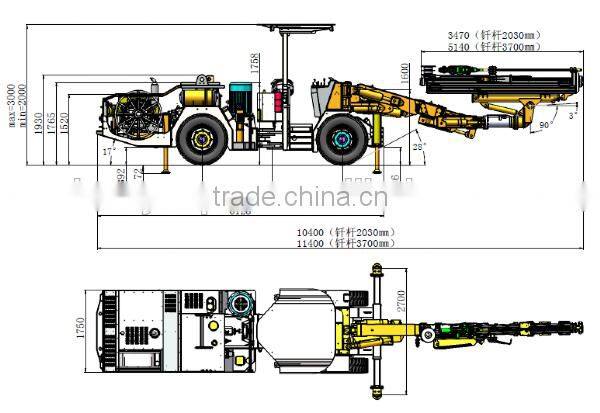

Dimension | 11.3*1.75*2m | 11.3*1.75*3m | 12*1.75*2m | 12*1.75*3m | 11.3*1.75*2m | 11.3*1.75*3m |
Weight | 12000kg | 12500kg | 12000kg | |||
Traveling Speed | 0-8km/h | 0-8km/h | 0-8km/h | |||
Climb Capacity | 25% (14º) | 25% (14º) | 25% (14º) | |||
Diesel Engine | BF4L2011 | BF4L2011 | BF4L2011 | |||
Swing | Rear axle swing ±10º | Rear axle swing ±10º | Rear axle swing ±10º | |||
Steering Mechanism | ±40º Articulated steering | ±40º Articulated steering | ±40º Articulated steering | |||
Traveling Brake | Double circuit of the hydraulic brake | Double circuit of the hydraulic brake | Double circuit of the hydraulic brake | |||
Air Consumption | 0.5m³/min | 0.5m³/min | 0.5m³/min | |||
Pressure | 8bar | 8bar | 5-7bar | |||
Pump Discharge | 3m³/h | 3m³/h | 3m³/h | |||
Motor | 45kw/55kw | 45kw/55kw | 45kw/55kw | |||
Starting Way | Star-delta start | Star-delta start | Star-delta start | |||
Cable Reel | 1*K440 | 1*K440 | 1*K440 | |||
Rock Drill | HC50/R38 | HC109/R38 | HC50/R38 | HC109/R38 | HC50/R38 | HC109/R38 |
Impact Power | 13kw | 18.8kw | 13kw | 18.8kw | 13kw | 18.8kw |
Impact Flow | 105L/min | 135L/min | 105L/min | 135L/min | 105L/min | 135L/min |
Maximum Impact Pressure | 130bar | 135bar | 130bar | 135bar | 130bar | 135bar |
Maximum Rotation Pressure | 150bar | 150bar | 150bar | 150bar | 150bar | 150bar |
Frequency | 62Hz | 47Hz | 62Hz | 47Hz | 62Hz | 47Hz |
Torque | 325N.m | 780N.m | 325N.m | 780N.m | 325N.m | 780N.m |
Drilling Hole Depth | 3700mm | 3700mm | 3700mm | 3700mm | 3700mm | 3700mm |
Drilling Hole Diameter | 32-89mm | 45-102mm | 32-89mm | 45-102mm | 32-89mm | 45-102mm |
Hole Flushing Pressure | 8-10bar | 8-12bar | 8-12bar | 8-12bar | 8-12bar | 8-12bar |
Push Beam Rotation | 360º | 360º | 360º | 360º | 360º | 360º |
Drill Boom Scaling | 1200mm | 1200mm | 1200mm | 1200mm | 1200mm | 1200mm |
Compensation Stroke | 1600mm | 1600mm | 1600mm | 1600mm | 900mm | 900mm |
Please contact us for further information. |
