KGH6 High Pressure Crawler Mounted Environmental Pneumatic Surface DTH Drilling Rig

Guangzhou Kerrycopco Machinery And Equipment Co., Ltd.

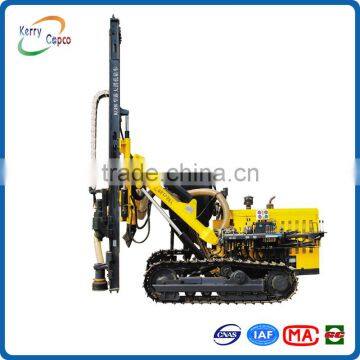

KGH6 High Pressure Crawler Mounted Environmental Pneumatic Surface DTH Drilling Rig thumbnail-1

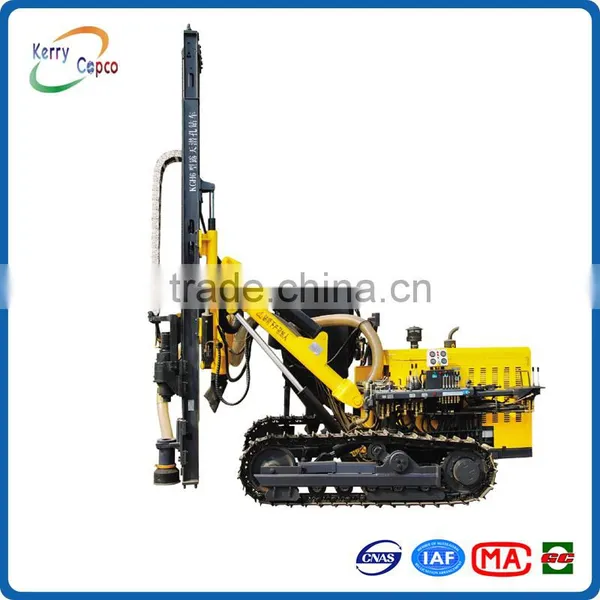

KGH6 High Pressure Crawler Mounted Environmental Pneumatic Surface DTH Drilling Rig photo-1
US$ 38,600 - 44,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Zhejiang, China
Brand Name Kaishan
Model Number KGH6
Usage Ore
Voltage 380V
Power(W) 58 kw
Dimension(L*W*H) 5.4*2.33*2.02 m
Weight 6500 kg
Certification ISO9001:2000
Warranty 1 Year
After-sales Service Provided No overseas service provided

KAISHAN KGH6 High Pressure Crawler Mounted Environmental Pneumatic Surface DTH Drilling Rig



KGH6 high pressure crawler mounted environmental pneumatic surface DTH drilling rig



Environmental Pneumatic Surface DTH Drilling Rig



KGH series pneumatic DTH drilling rig is environmentally friendly surface DTH drilling rig. Equipped with pulse tube type dust collector to provide efficient and purified working environment; The engine is imported with original packaging and simulate optimized shape lines of the fan blade to provide efficient and steady performance for equipments; Design of coarse filtration and fine filtration, special environmentally friendly and efficient filter material. The purification efficiency is up to 99%. The realization of automatic dust discharge because of excellent automatic control system; Reflects the people-oriented design concept.



1. Low center of gravity and big ground clearance can easily through the rough road; Special wheel motor drive with strong climbing ability and low failure rate.



2. Advanced track automatic leveling function and the stop brake system, not only make drilling rig walk steadily, and greatly reduce the impact from ground of drilling rig and ensure the driving safety.



3. Unique anti stripping chain device greatly improves the reliability of walking drilling rig.



4. The optimized design of the luffing mechanism and the circular drill boom make them have novel structure, and convenient adjustment, and also make drilling coverage be greatly increased, and can drill holes in low level.



KGH Series Environmental Pneumatic DTH Drilling Rig Specification
ModelKGH3KGH4KGH5KGH6KGH8
Rock Rigidityf=6-20f=6-20f=6-20f=6-20f=6-20
Drilling Hole Diameter80-105mm80-115mm105-125mm105-152mm105-220mm
Drilling Depth20m25m25m25m40m
Traveling Speed0-2.0km/h0-2.0km/h0-2.0km/h0-2.0km/h0-2.5(slow)/4.0(fast)km/h
Rotation Speed0-100r/min0-140r/min0-100r/min0-100r/min0-120r/min
Rotation Torque980N.m1400N.m2400N.m2800N.m4500N.m
Max. Feed Force15000N25000N25000N22000N22000N
Push WayCylinder. ChainCylinder. ChainCylinder. ChainCylinder. ChainCylinder. Chain
Feed Stroke2000mm3000mm3000mm3000mm3000mm
Climb Capacity30º30º30º30º25º
Ground Clearance254mm290mm320mm320mm370mm
Weight3600kg5000kg6500kg6500kg7500kg
Dimension4.1*2.03*2.02m5.6*2.7*2.5m5.4*2.33*2.02m5.4*2.33*2.02m7.25*2.75*2.8m
Guide Tilt23.5º up, 118.5º down50º up, 135º down180º 180º 180º
Guide Swing11.5º right, 36.5º left45º right, 100º left50º(15º) right, 50º(95º) left45º right, 45º left45º right, 45º left
Compensation Stroke900mm900mm900mm900mm900mm
Boom Lift35ºup, 60ºdown25ºup, 50ºdown45ºup, 25ºdown45ºup, 25ºdown45ºup, 25ºdown
Boom SwingN/A45º right, 44º left45º right, 45º left45º right, 45º left45º right, 45º left
Engine ModelYC2108YC4D80YC4D80-T10YC4D804BTA3.9-C125
Power33kw58kw58kw58kw93kw
Working Pressure7-14bar7-17bar10-24bar14-24bar14-24bar
Air Consumption9-13m³/min9-18m³/min12-24m³/min12-24m³/min12-24m³/min
Air Hoseφ38*1*20φ38*2*20φ51*2*20φ51*2*20φ51*2*20
Recommended HammerQCZJ90 (QCW930)KQG45S (HD45S; QCW930; KQG35A)KQG45A (HD45A; HD45S)KQG45A (HD45A; HD45S)KQG45A (HD45A; HD45S)
Recommended Rodφ60*2000mmφ76*3000mm (φ64*3000mm)φ76*3000mm (φ89*3000mm)φ76*3000mmφ76*3000mm
Recommended Bitφ80-105mm (90mm)φ80-115mm (115mm; 90mm; 105mm)φ105-125mm (115mm; 105mm)φ105-125mm (115mm; 105mm)φ105-125mm (115mm; 105mm)
Recommended Air CompressorLGCY-10/7 (LGCY-13/7; LGCY-10/10; LGCY-12/10)LGCY-13/13 (LGCY-15/13; LGCY-12/10; LGCY-13/17)LGCY-18/17 (LGCY-19.5/19; LGCY-22/20)LGCY-19.5/19 (LGCY-18/17; LGCY-22/20)LGCY-22/20 (LGCY-18/17; LGCY-19.5/19)
Please contact us for further information.

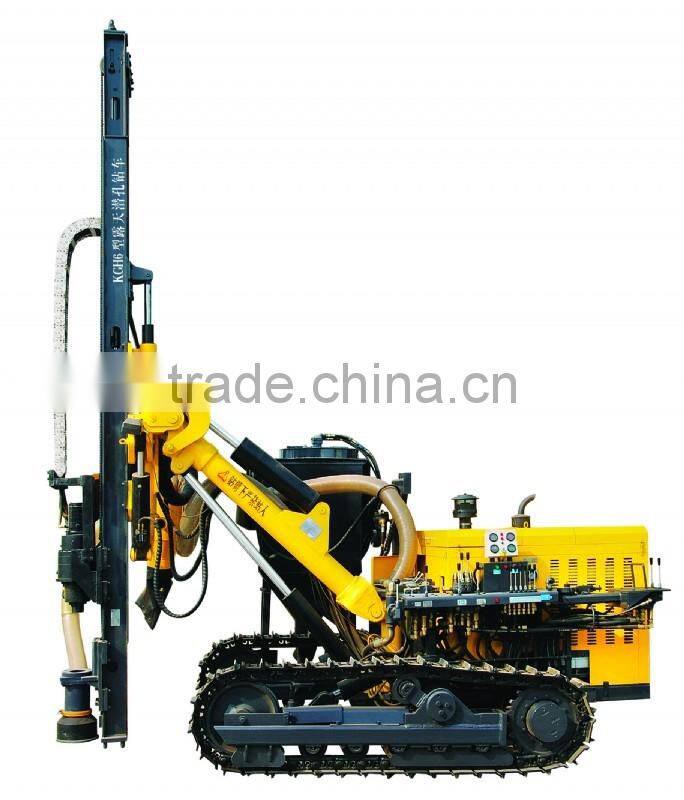

KGH6 high pressure crawler mounted environmental pneumatic surface DTH drilling rig

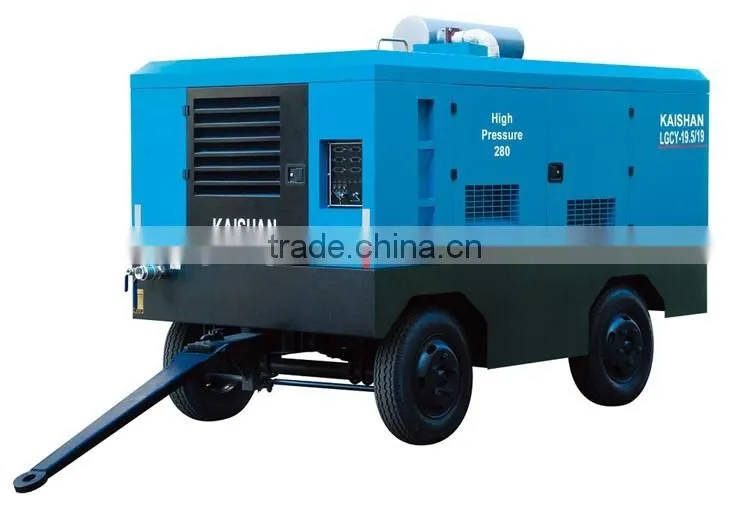

Recommended diesel-engine portable screw air compressor (LGCY-19.5/19):

KGH6 high pressure crawler mounted environmental pneumatic surface DTH drilling rig



Recommended components and spare parts for drilling equipments:

KGH6 high pressure crawler mounted environmental pneumatic surface DTH drilling rig



Please contact us for further information.
