KAISHAN KW600 450m Depth 130 ~ 350mm Diameter Crawler Mounted Multifunctional Geothermal Water Well Drilling Rig

Guangzhou Kerrycopco Machinery And Equipment Co., Ltd.

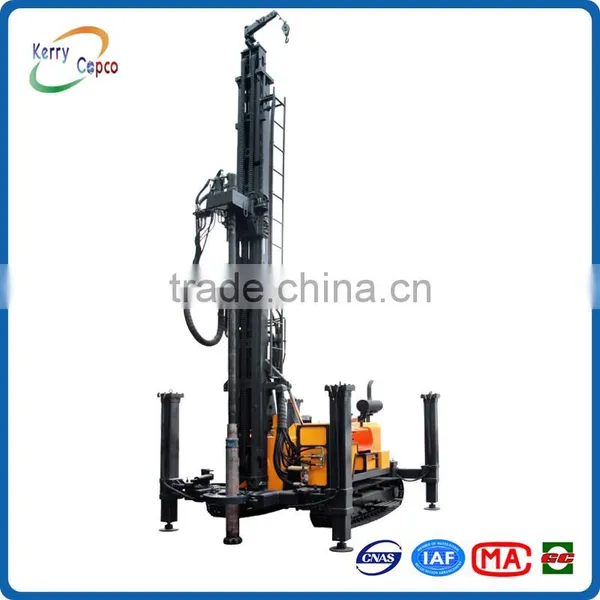

KAISHAN KW600 450m Depth 130 ~ 350mm Diameter Crawler Mounted Multifunctional Geothermal Water Well Drilling Rig thumbnail-1
KAISHAN KW600 450m Depth 130 ~ 350mm Diameter Crawler Mounted Multifunctional Geothermal Water Well Drilling Rig photo-1
US$ 47,500 - 50,400 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Zhejiang, China
Brand Name Kaishan
Model Number KW600
Usage Water Well
Voltage 380V
Power(W) 110 kw
Dimension(L*W*H) 7.3*2.25*2.75 m
Weight 10000 kg
Certification ISO9001:2000
Warranty 1 Year
After-sales Service Provided No overseas service provided

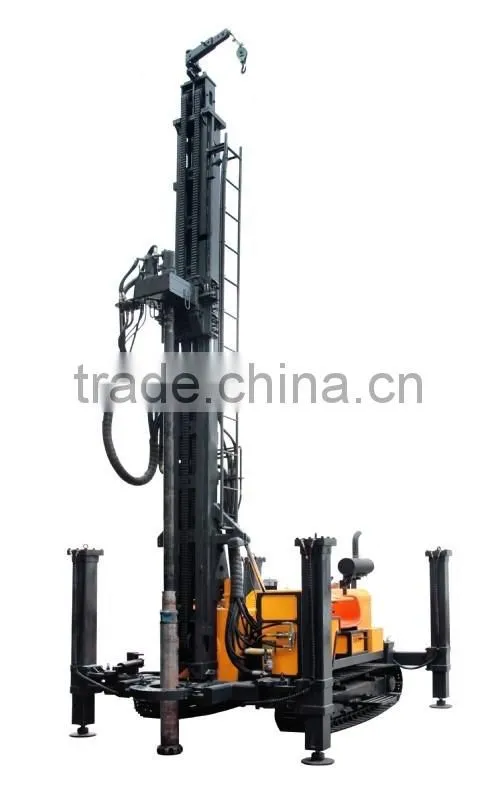

KAISHAN KW600 Crawler Mounted Multifunctional Geothermal Water Well Drilling Rig



KAISHAN KW600 450m depth 130 ~ 350mm diameter crawler mounted multifunctional geothermal water well drilling rig



Multifunctional Geothermal Water Well Drilling Rig



KW series water well drilling rig is a lightweight, high efficiency, multifunctional car hole drilling equipment. It is mainly suitable for drilling wells, geothermal air-conditioning holes and well holes for other purposes.



1. The drilling rig can work in different formation and the hole depth is up to 350m.



2. The drilling rig adopts the new type of hydraulic technology, and is equipped with the high torque hydraulic motor rotary and large bore hydraulic oil cylinder. The engine of famous factory to provide power for hydraulic system, two levels filter and design of air compressor inlet, prolonging the service life of diesel engine.



3. Unique design of pump group is convenient for maintenance, and reduces the maintenance cost. Centralized control of the hydraulic control console is convenient for operation.



4. The drilling rig adopts engineering machinery dedicated crawler chassis; cross-country performance is strong. Independent module design can make the drilling rig be installed on the truck to increase its mobility. Combined the locator can adjust and change the positioning tray according to different types of drill rod and impact or to guarantee accurate and reliable positioning centering.



KW Series Water Well Drilling Rig Specification
ModelKW10 (Crawler-mounted)KW20 (Crawler-mounted)KW20C (Truck-mounted)KW30 (Crawler-mounted)KW180 (Crawler-mounted)KW400 (Crawler-mounted)KW600 (Crawler-mounted)
Drilling Hole Diameter115-180mm115-254mm115-220mm168-300mm110-202mm110-273mm130-350mm
Drilling Depth120m200m200m300m180m250m450m
Traveling Speed0-2.5km/h0-2.5km/h 0-2.5km/h0-2.5km/h0-2km/h0-2km/h
Rotation Speed50-100r/min60-105r/min60-105r/min43/52/69-85/102/125r/min33-67r/min57-94r/min38-61 (76-120)r/min
Rotation Torque3200N.m4000N.m4000N.m4000-8000N.m4200N.m5700N.m8600 (3200)N.m
Max. Feed Force30000N45000N45000N50000N25000N44000N75000N
Max. Hoist Force70000N95000N95000N150000N50000N95000N153000N
Feed Stroke1750mm2400mm2400mm2400mm2380mm4400mm4400mm
Climb Capacity15°25° 25°20°20°20°
Ground Clearance254mm280mm 280mm290mm280mm280mm
Jacket Stroke460mm1000mm1000mm1000/1500mm1000/1500mm1400mm1400mm
Weight6500kg8500kg10000kg9500kg4500kg9800kg10000kg
Dimension6*2.3*2.5m5.1*2.3*2.85m6.7*2.15*3.2m5.2*2.3*3.2m2.7*1.55*2.35m7.3*2.25*2.75m7.3*2.25*2.75m
Engine ModelYC4D80YC6B125-K10YC6B125-K10YC6B150Z-Z21YC4D80YC6B125-K10YC6B150Z-Z21
Power58kw92kw92kw110kw58kw92kw110kw
Working Pressure10.5-24.6bar10.5-24.6bar10.5-24.6bar10.5-24.6bar10.5-24.6bar10.5-24.6bar10.5-34.5bar
Air Consumption16-30m³/min16-30m³/min16-35m³/min16-40m³/min16-30m³/min16-54m³/min16-76.4m³/min
Recommended HammerHD45 / HD55 / HD65HD45 / HD55 / HD65 / HD85HD45 / HD55 / HD65 / HD85HD65 / HD85HD45 / HD55 / HD65HD45 / HD55 / HD65 / HD85HD55 / HD65 / HD85 / HSD10
Recommended Rodφ76*3000mm; φ89*3000mmφ76*3000mm; φ89*3000mmφ76*3000mm; φ89*3000mmφ89*3000mm; φ102*3000mmφ76*3000mm; φ89*3000mmφ89*3000mm; φ102*3000mmφ89*3000mm; φ102*3000mm; φ114*3000mm
Recommended Bitφ115-180mmφ115-254mmφ115-220mmφ168-300mmφ110-202mmφ110-273mmφ130-350mm
Recommended Air CompressorLGCY-22/20; LGCY-27/20LGCY-27/20; LGCY-33/25LGCY-27/20; LGCY-33/25LGCY-33/25; LGCY-39/25LGCY-22/20; LGCY-27/20LGCY-33/25LGCY-33/25; LGCY-39/25
Please contact us for further information.



KAISHAN KW600 450m depth 130 ~ 350mm diameter crawler mounted multifunctional geothermal water well drilling rig

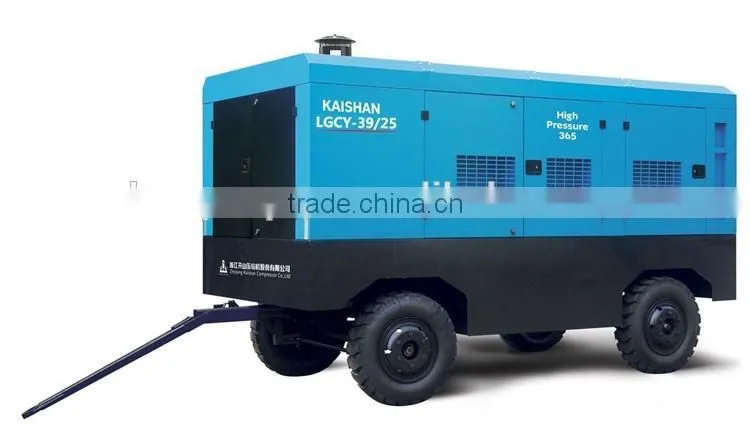

Recommended Air Compressor: Diesel-engine screw air compressor (LGCY-39/25):

KAISHAN KW600 450m depth 130 ~ 350mm diameter crawler mounted multifunctional geothermal water well drilling rig



Recommended components and spare parts for drilling equipments:

KAISHAN KW600 450m depth 130 ~ 350mm diameter crawler mounted multifunctional geothermal water well drilling rig



Please contact us for further information.
