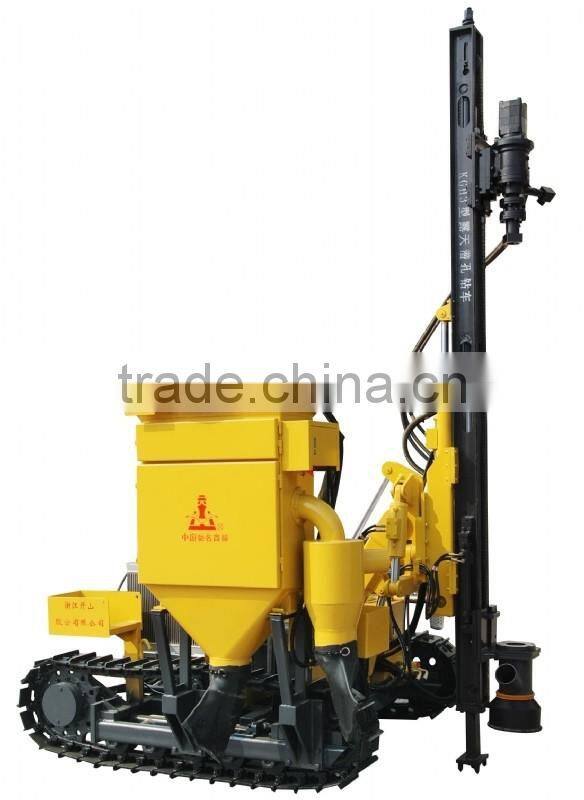

KGH3 low pressure crawler mounted eco pneumatic surface DTH drilling rig
- 10 Set / Sets per Month
- Guangzhou port
- T/T Credit Card
-
3NB9/1.8-7.5 mining mud pump is used for providing cooling and flushing fluid during rock core or coal seam drilling
-
2NB3/1.5-2.2 mining mud pump is a vertical, double cylinder, single acting plunger pump
-
The 3NB-250/6-15 reciprocating mud pump provides washout fluid to the borehole during core drilling with the three-cylinder plunger
-
Coal mine tunnel drilling rig ZLJ350 head can be turned
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
Product Details
Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Diesel |
Place of Origin: | Zhejiang, China | Brand Name: | Kaishan | Model Number: | KGH3 |
Usage: | Ore | Voltage: | 380V | Power(W): | 33 kw |
Dimension(L*W*H): | 4.1*2.03*2.02 m | Weight: | 3600 kg | Certification: | ISO9001:2000 |
Warranty: | 1 Year | After-sales Service Provided: | No overseas service provided |
Product Description

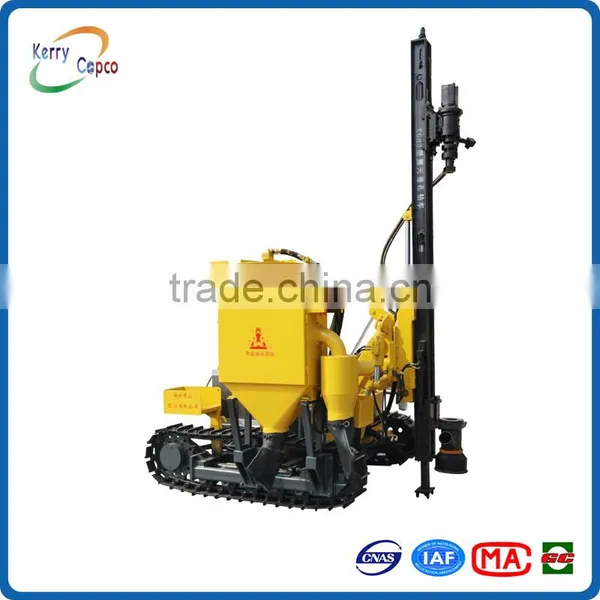

KAISHAN KGH3 Low Pressure Crawler Mounted ECO Pneumatic Surface DTH Drilling Rig
Environmental Pneumatic Surface DTH Drilling Rig
KGH series pneumatic DTH drilling rig is environmentally friendly surface DTH drilling rig. Equipped with pulse tube type dust collector to provide efficient and purified working environment; The engine is imported with original packaging and simulate optimized shape lines of the fan blade to provide efficient and steady performance for equipments; Design of coarse filtration and fine filtration, special environmentally friendly and efficient filter material. The purification efficiency is up to 99%. The realization of automatic dust discharge because of excellent automatic control system; Reflects the people-oriented design concept.
1. Low center of gravity and big ground clearance can easily through the rough road; Special wheel motor drive with strong climbing ability and low failure rate.
2. Advanced track automatic leveling function and the stop brake system, not only make drilling rig walk steadily, and greatly reduce the impact from ground of drilling rig and ensure the driving safety.
3. Unique anti stripping chain device greatly improves the reliability of walking drilling rig.
4. The optimized design of the luffing mechanism and the circular drill boom make them have novel structure, and convenient adjustment, and also make drilling coverage be greatly increased, and can drill holes in low level.
KGH Series Environmental Pneumatic DTH Drilling Rig Specification | |||||
Model | KGH3 | KGH4 | KGH5 | KGH6 | KGH8 |
Rock Rigidity | f=6-20 | f=6-20 | f=6-20 | f=6-20 | f=6-20 |
Drilling Hole Diameter | 80-105mm | 80-115mm | 105-125mm | 105-152mm | 105-220mm |
Drilling Depth | 20m | 25m | 25m | 25m | 40m |
Traveling Speed | 0-2.0km/h | 0-2.0km/h | 0-2.0km/h | 0-2.0km/h | 0-2.5(slow)/4.0(fast)km/h |
Rotation Speed | 0-100r/min | 0-140r/min | 0-100r/min | 0-100r/min | 0-120r/min |
Rotation Torque | 980N.m | 1400N.m | 2400N.m | 2800N.m | 4500N.m |
Max. Feed Force | 15000N | 25000N | 25000N | 22000N | 22000N |
Push Way | Cylinder. Chain | Cylinder. Chain | Cylinder. Chain | Cylinder. Chain | Cylinder. Chain |
Feed Stroke | 2000mm | 3000mm | 3000mm | 3000mm | 3000mm |
Climb Capacity | 30º | 30º | 30º | 30º | 25º |
Ground Clearance | 254mm | 290mm | 320mm | 320mm | 370mm |
Weight | 3600kg | 5000kg | 6500kg | 6500kg | 7500kg |
Dimension | 4.1*2.03*2.02m | 5.6*2.7*2.5m | 5.4*2.33*2.02m | 5.4*2.33*2.02m | 7.25*2.75*2.8m |
Guide Tilt | 23.5º up, 118.5º down | 50º up, 135º down | 180º | 180º | 180º |
Guide Swing | 11.5º right, 36.5º left | 45º right, 100º left | 50º(15º) right, 50º(95º) left | 45º right, 45º left | 45º right, 45º left |
Compensation Stroke | 900mm | 900mm | 900mm | 900mm | 900mm |
Boom Lift | 35ºup, 60ºdown | 25ºup, 50ºdown | 45ºup, 25ºdown | 45ºup, 25ºdown | 45ºup, 25ºdown |
Boom Swing | N/A | 45º right, 44º left | 45º right, 45º left | 45º right, 45º left | 45º right, 45º left |
Engine Model | YC2108 | YC4D80 | YC4D80-T10 | YC4D80 | 4BTA3.9-C125 |
Power | 33kw | 58kw | 58kw | 58kw | 93kw |
Working Pressure | 7-14bar | 7-17bar | 10-24bar | 14-24bar | 14-24bar |
Air Consumption | 9-13m³/min | 9-18m³/min | 12-24m³/min | 12-24m³/min | 12-24m³/min |
Air Hose | φ38*1*20 | φ38*2*20 | φ51*2*20 | φ51*2*20 | φ51*2*20 |
Recommended Hammer | QCZJ90 (QCW930) | KQG45S (HD45S; QCW930; KQG35A) | KQG45A (HD45A; HD45S) | KQG45A (HD45A; HD45S) | KQG45A (HD45A; HD45S) |
Recommended Rod | φ60*2000mm | φ76*3000mm (φ64*3000mm) | φ76*3000mm (φ89*3000mm) | φ76*3000mm | φ76*3000mm |
Recommended Bit | φ80-105mm (90mm) | φ80-115mm (115mm; 90mm; 105mm) | φ105-125mm (115mm; 105mm) | φ105-125mm (115mm; 105mm) | φ105-125mm (115mm; 105mm) |
Recommended Air Compressor | LGCY-10/7 (LGCY-13/7; LGCY-10/10; LGCY-12/10) | LGCY-13/13 (LGCY-15/13; LGCY-12/10; LGCY-13/17) | LGCY-18/17 (LGCY-19.5/19; LGCY-22/20) | LGCY-19.5/19 (LGCY-18/17; LGCY-22/20) | LGCY-22/20 (LGCY-18/17; LGCY-19.5/19) |
Please contact us for further information. |
Recommended diesel-engine portable screw air compressor (LGCY-12/10):
Recommended components and spare parts for drilling equipments:
Please contact us for further information.
