Product Details
Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Diesel |
Place of Origin: | Zhejiang, China | Brand Name: | Kaishan | Model Number: | KG910A |
Usage: | Ore | Voltage: | 380V | Power(W): | 20.2 kw |
Dimension(L*W*H): | 4.1*2.03*2.02 m | Weight: | 3100 kg | Certification: | ISO9001:2000 |
Warranty: | 1 Year | After-sales Service Provided: | No overseas service provided |
Product Description

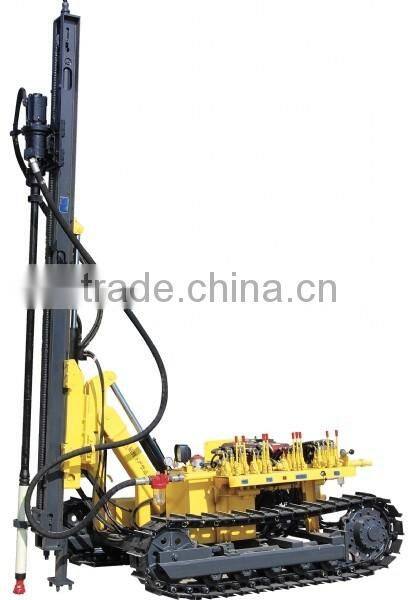

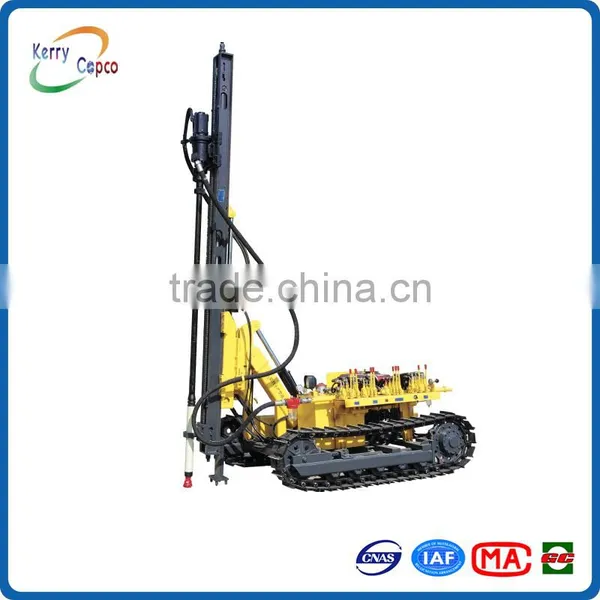

KAISHAN KG910A Low Pressure Diesel Engine Crawler Mounted Pneumatic Surface DTH Drilling Rig
Low Pressure Pneumatic Surface DTH Drilling Rig
KG910 series surface DTH drilling rig retains the characteristics of KY100 drilling rig such as simple structure and stable performance. The hydraulic system, traveling components and the gyrator have been optimized and upgraded. The rotation speed and advancing speed can be faster. The motor service life is longer and the reliability is better.
KG915 series surface DTH drilling rig is with variable pitch mechanism and double pivot angle mechanism, and can drill laterally horizontal holes. Application of 45º inclined compensation frame, the orifice and the discharge rod operation situation can be observed clearly by driver. It is equipped with lifting tool warehouse to access drill pipe conveniently and reduces the labor intensity.
Low Pressure Pneumatic Surface DTH Drilling Rig Specification | ||||||
Model | KG910A | KG910B | KG910C | KG910D | KG915 | KG915D |
Rock Rigidity | f=6-20 | f=6-20 | f=6-20 | f=6-20 | f=6-20 | f=6-20 |
Drilling Hole Diameter | 80-105mm | 80-105mm | 80-105mm | 80-105mm | 80-105mm | 80-105mm |
Drilling Depth | 25m | 25m | 25m | 25m | 25m | 25m |
Traveling Speed | 0-2.0km/h | 0-2.0km/h | 0-2.0km/h | 0-2.0km/h | 0-2.0km/h | 0-2.0km/h |
Rotation Speed | 0-105r/min | 0-120r/min | 0-120r/min | 0-120r/min | 0-120r/min | 0-120r/min |
Rotation Torque | 980N.m | 980N.m | 980N.m | 980N.m | 980N.m | 980N.m |
Max. Feed Force | 15000N | 15000N | 15000N | 15000N | 15000N | 15000N |
Push Way | Cylinder. Chain | Cylinder. Chain | Cylinder. Chain | Cylinder. Chain | Cylinder. Chain | Cylinder. Chain |
Feed Stroke | 2000mm | 2000mm | 2000mm | 2000mm | 2000mm | 2000mm |
Climb Capacity | 30º | 30º | 30º | 30º | 30º | 30º |
Ground Clearance | 254mm | 254mm | 254mm | 254mm | 290mm | 290mm |
Weight | 3100kg | 3400kg | 3300kg | 3400kg | 3900kg | 3900kg |
Dimension | 4.1*2.03*2.02m | 4.1*2.03*2.02m | 4.1*2.1*2.1m | 4.1*2.03*2.02m | 4.6*2.12*1.8m | 4.6*2.12*1.8m |
Guide Tilt | 23.5º up, 118.5º down | 23.5º up, 118.5º down | 23.5º up, 118.5º down | 23.5º up, 118.5º down | 55º up, 145º down | 55º up, 145º down |
Guide Swing | 11.5º right, 36.5º left | 11.5º right, 36.5º left | 11.5º right, 36.5º left | 11.5º right, 36.5º left | 45º right, 100º left | 45º right, 100º left |
Boom Lift | 35ºup, 60ºdown | 35ºup, 60ºdown | 35ºup, 60ºdown | 35ºup, 60ºdown | 25ºup, 50ºdown | 25ºup, 50ºdown |
Compensation Stroke | 900mm | 900mm | 900mm | 900mm | 900mm | 900mm |
Engine Model | ZS1125GM | YC2108 | ZS1125GM / Electromotor | Electromotor | YC2108 | Electromotor |
Power | 20.2kw | 33kw | 20.2kw | 22kw | 33kw | 22kw |
Working Pressure | 7-10bar | 7-10bar | 7-10bar | 7-10bar | 7-14bar | 7-14bar |
Air Consumption | 9-13m³/min | 9-13m³/min | 9-13m³/min | 9-13m³/min | 9-13m³/min | 9-13m³/min |
Air Hose | φ38*8*20 (φ38*1*20) | φ38*8*20 (φ38*1*20) | φ38*8*20 (φ38*1*20) | φ38*8*20 (φ38*1*20) | φ38*1*20 (φ38*8*20) | φ38*8*20 (φ38*1*20) |
Recommended Hammer | QCZJ90 (QCW930) | QCZJ90 (QCW930) | QCZJ90 (QCW930) | QCZJ90 (QCW930) | QCZJ90 (QCW930) | QCZJ90 (QCW930) |
Recommended Rod | φ60*2000mm | φ60*2000mm | φ60*2000mm | φ60*2000mm | φ60*2000mm | φ60*2000mm |
Recommended Bit | φ80-105mm (90mm) | φ80-105mm (90mm) | φ80-105mm (90mm) | φ80-105mm (90mm) | φ80-105mm (90mm) | φ80-105mm (90mm) |
Recommended Air Compressor | LGCY-10/7 (LGCY-13/7; LGCY-10/10; LGCY-12/10) | LGCY-10/7 (LGCY-13/7; LGCY-10/10; LGCY-12/10) | LGCY-10/7 (LGCY-13/7; LGCY-10/10; LGCY-12/10) | LGCY-10/7 (LGCY-13/7; LGCY-10/10; LGCY-12/10) | LGCY-10/10 (LGCY-13/7; LGCY-12/10) | LGCY-10/10 (LGCY-13/7; LGCY-12/10) |
Please contact us for further information. |

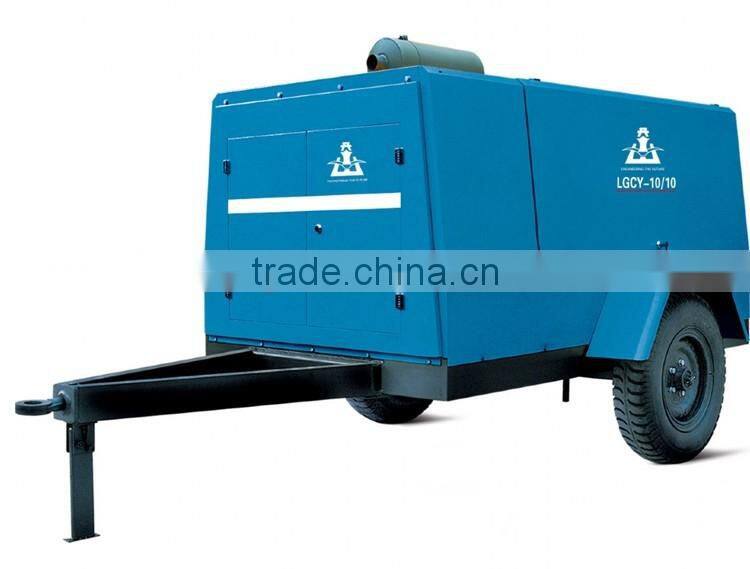

Recommended Diesel engine portable screw air compressor (LGCY-10/10):
Recommended components and spare parts for drilling equipments:
Please contact us for further information.
